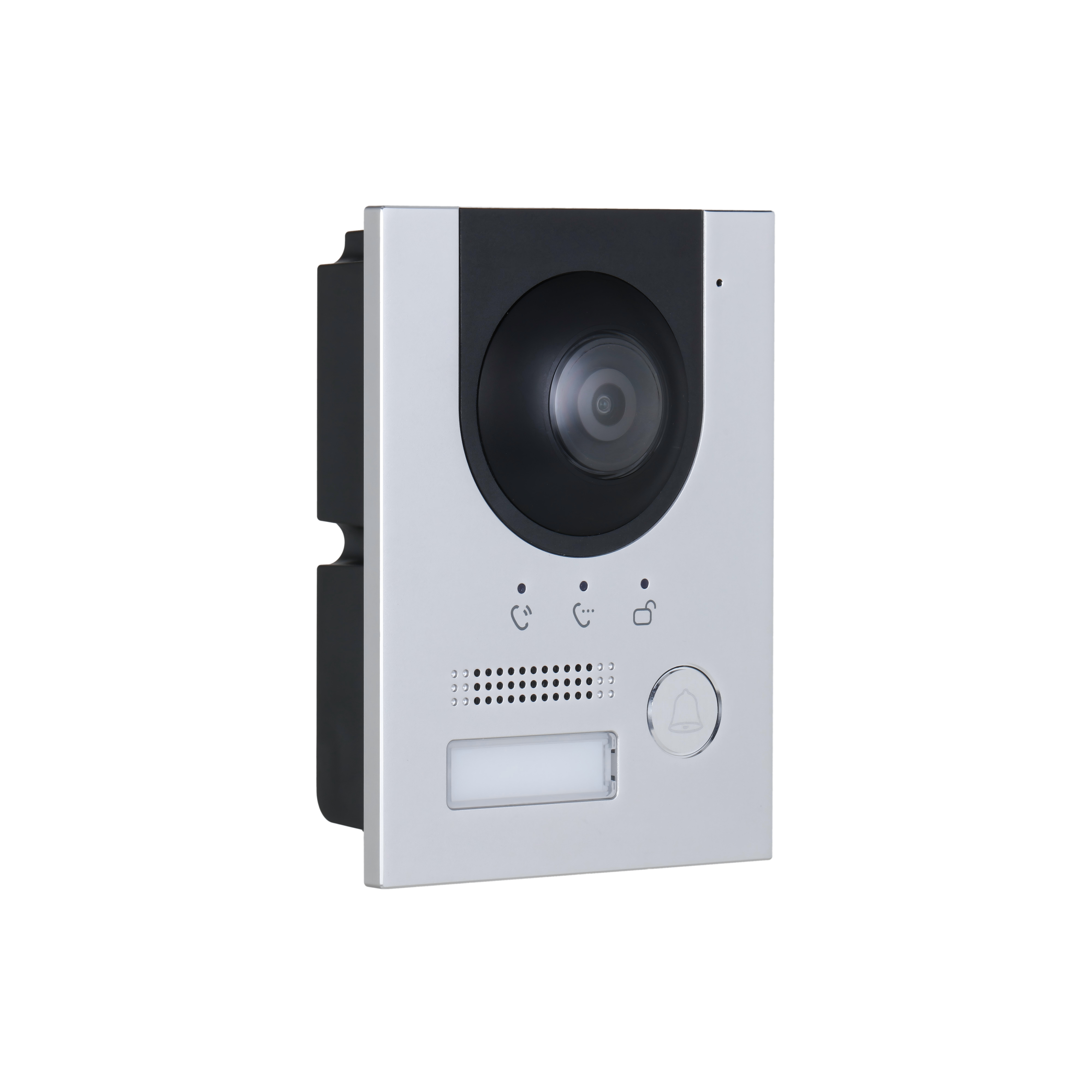

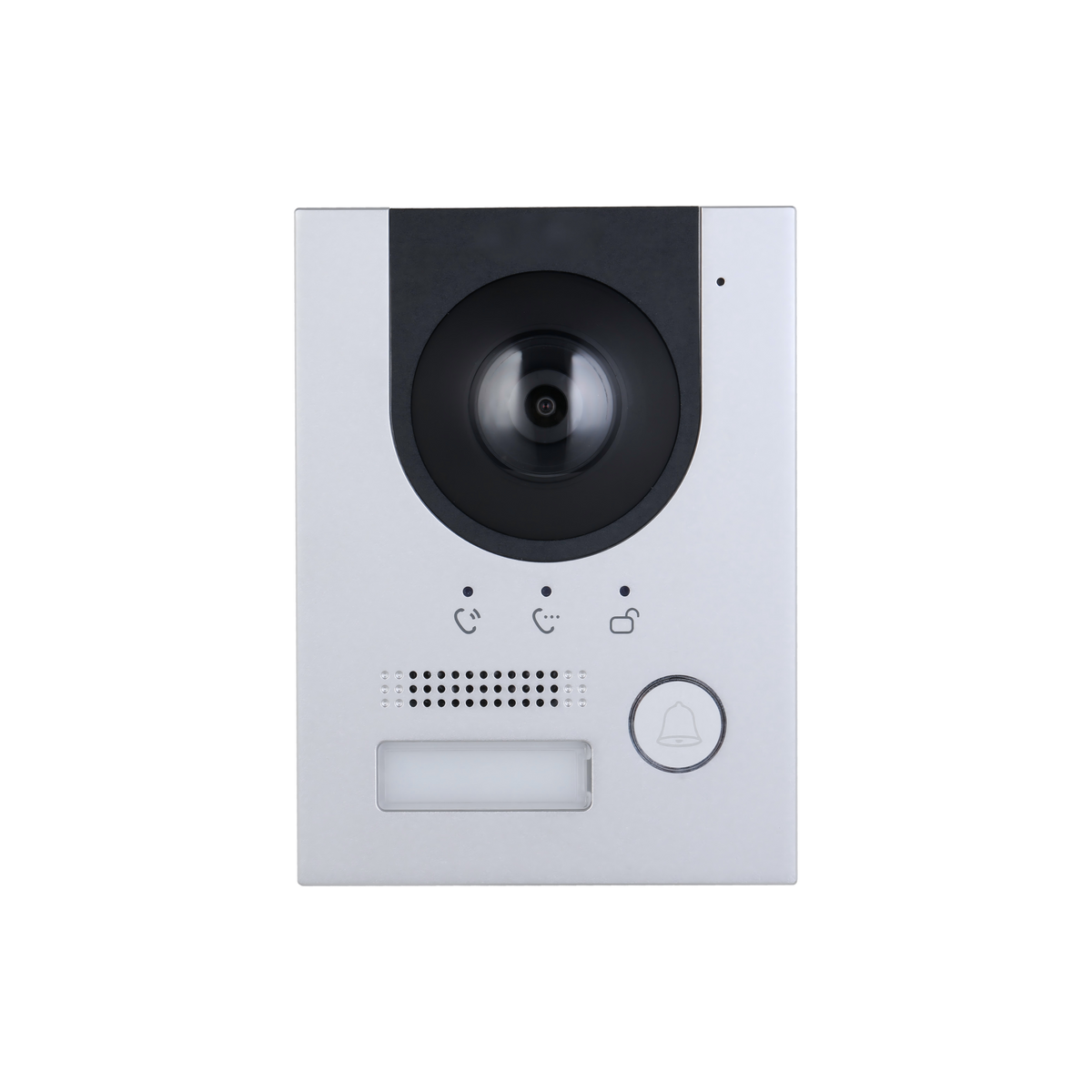

EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station

$149.99
$157.99
$149.99

Please note that the VTO2202F-P-S3 requires Mount during installation.

  • Anodized aluminum front panel.
  • CMOS low illumination 2MP HD colorful 168.6° camera.
  • Video intercom function.
  • Provides 12 VDC, 600 mA power.
  • Mobile phone app.
  • IK07 & IP65 rated.
  • Support surface and flush mount.
  • Support H.265 and H.264.
  • Standard PoE power supply.

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station - EmpireTech

EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station

$157.99 $149.99
EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station - EmpireTech
EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station - EmpireTech
EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station - EmpireTech

EmpireTech VTO2202F-P-S3 1/2.9" 2 MP CMOS 2-wire IP Villa Door Station

$157.99 $149.99
Product
Overview
Specs
Reviews
FAQ

Installation Method

Optional Accessories（Mount needs to be purchased separately）：

VTM115

(Surface Mounted Box)

VTM05R

(Rain Cover)



VTO2202F-P-S3 Application





Product Specs
System
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux Operation System
Button TypeMechanical
Number of Buttons1
InteroperabilityONVIF; CGI
Network ProtocolIPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Basic
Camera1/2.9" 2 MP CMOS
Field of ViewH: 168.6°, V: 87.1°, D: 176.7°
WDR120 dB
Noise Reduction3D NR
Video CompressionH.265; H.264
Video ResolutionMain stream: 720p; WVGA; D1; CIF
Sub stream: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate25 fps
Video Bit Rate256 Kbps to 8 Mbps
Light CompensationAuto IR
Day/NightAuto(ICR)/Color/B/W; Color/B/W
Audio CompressionG.711a; G.711u; PCM
Audio Input1 channel
Audio OutputBuilt-in speaker
Audio ModeTwo-way audio
Audio EnhancementEcho suppression/digital noise reduction
Audio Bit Rate16 kHz, 16 bits
Function
Communication ModeDigital 2-wire
Unlock ModeRemote
Leave VideosYes (SD card is inserted in the indoor monitor or door station)
StorageSupports Micro SD card (up to 256 GB)
Web ConfigurationYes
Performance
Casing MaterialAluminum

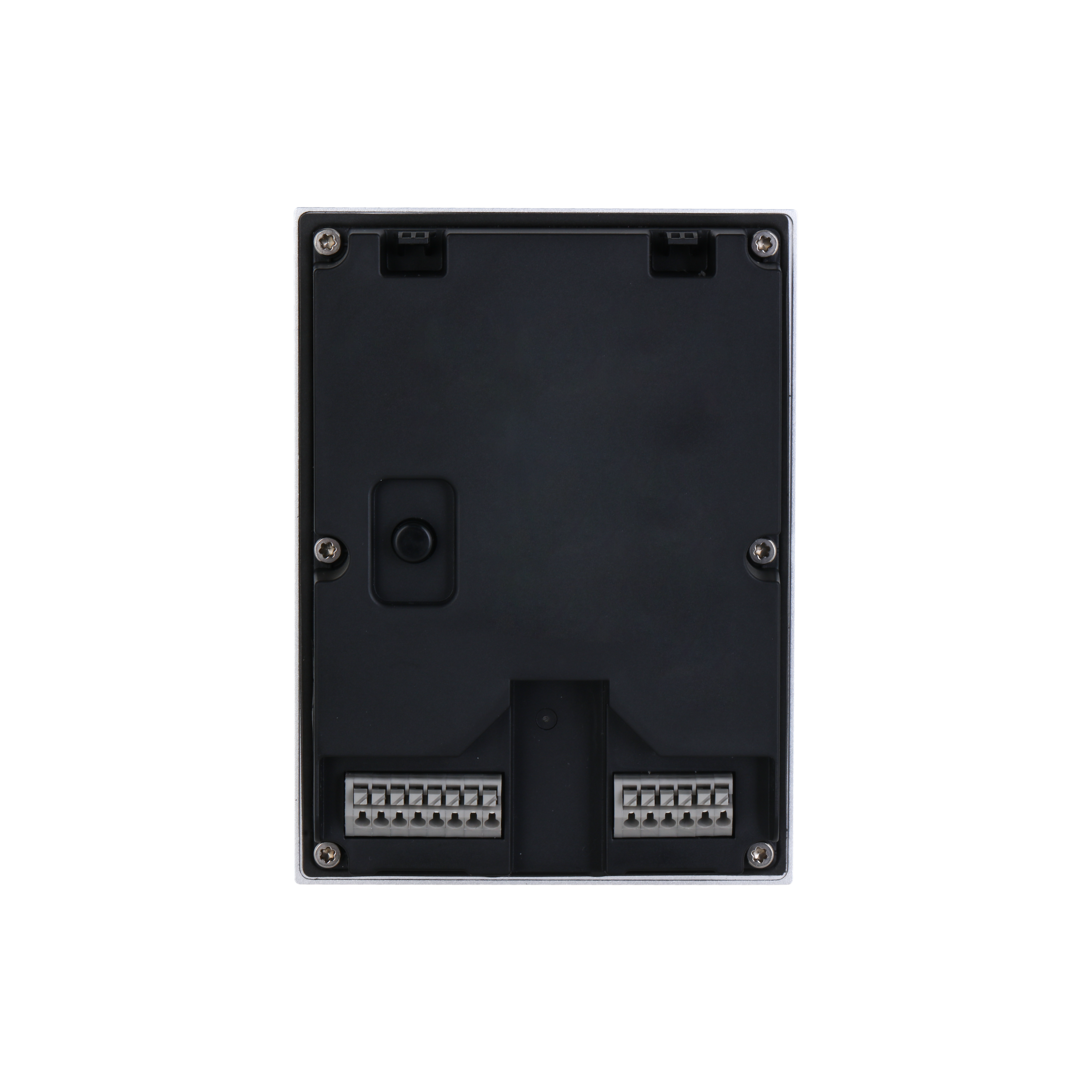

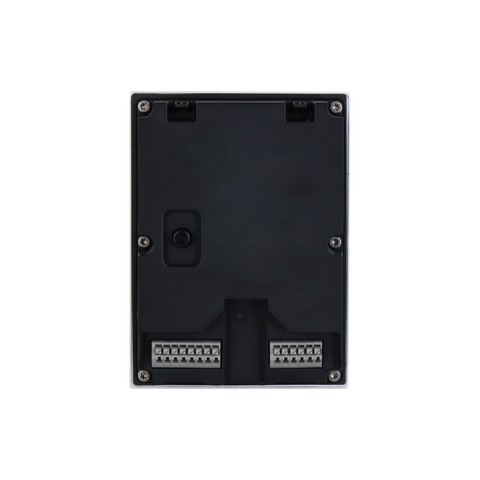

Port
RS-4851
Alarm Output1
Power Output1 port, 12 V/600 mA
Exit Button1
Door Status Detection1
Lock Control1
Network Port1 × RJ-45 port, 10/100 Mbps network port
Alarm
Tamper AlarmYes
General
Appearance ColorSilver
Power Supply2-wire switch (max. power supply distance is 50 m)48 VDC, 1 A; PoE (802.3af/at)
Power AdapterOptional
InstallationFlush Mount; Surface Mount
CertificationsCE
AccessorySurface mount box (optional); flush mount box (optional); rain cover (optional)
Product Dimensions130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
ProtectionIK07; IP65
Operating Temperature–30°C to +60°C (–22°F to +140°F)
Operating Humidity10%–90% (RH), non-condensing
Operating EnvironmentOutdoor
Operating Altitude0 m–3000 m (0 ft–9842.52 ft)
Power Consumption≤4 W (standby), ≤5 W (working)
Gross Weight0.48 kg (1.06 lb)
Storage Temperature0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity30%–75% (RH), non-condensing
