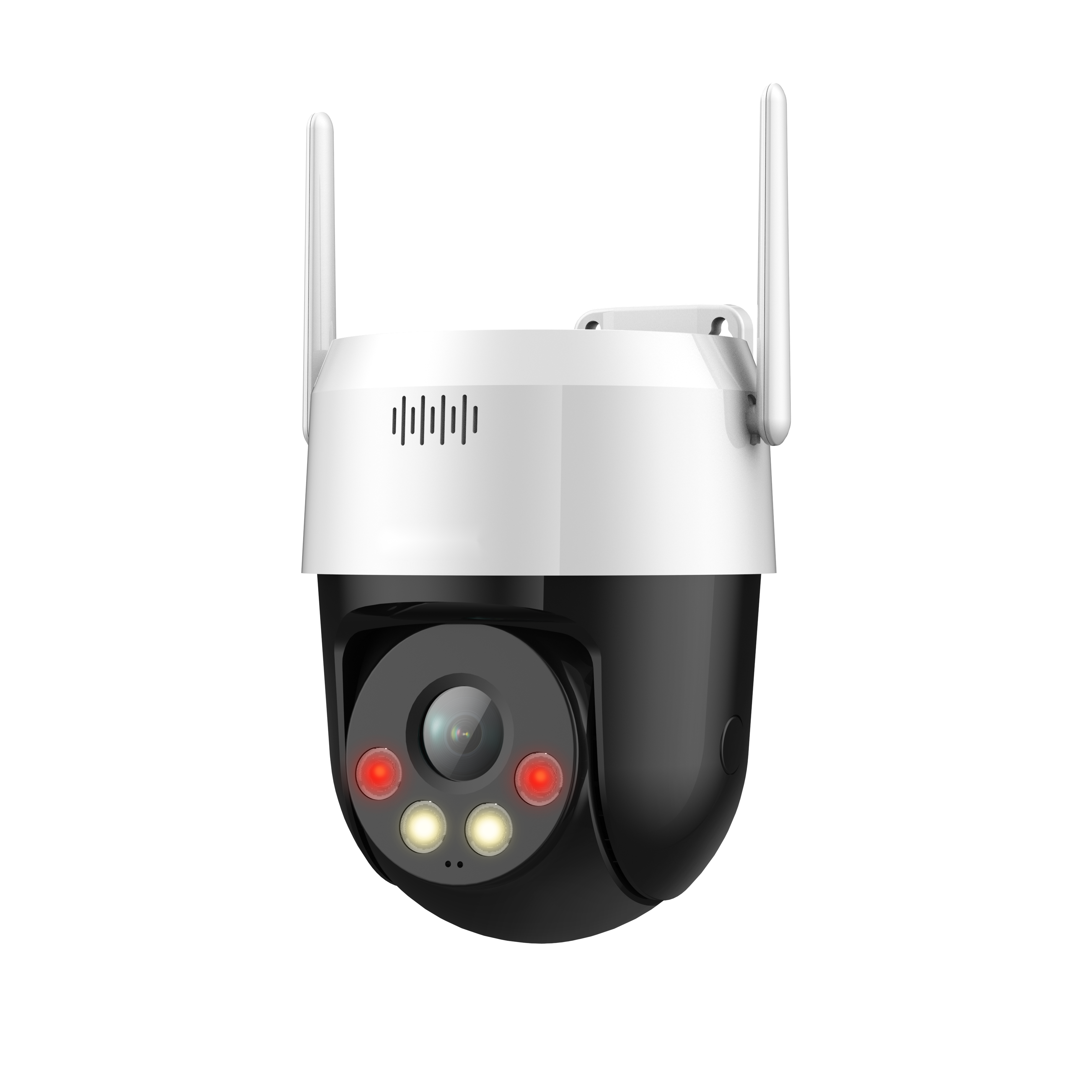

EmpireTech SD2A500HB-GN-AW-PV-S2 1/2.8" CMOS 5MP Full-color Network PT Camera

$119.00
$119.00
$119.00

> 1/2.8" 5Megapixel STARVIS™ CMOS.

> Max. 20 fps@5MP.

> Human detection.

> Tripwire, intrusion.

> H.265 encoding.

> Wi-Fi.

> Two-way audio.

> Sound and light alarm.

> IR and white light, three night view modes.

> IP66.

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech SD2A500HB-GN-AW-PV-S2 1/2.8" CMOS 5MP Full-color Network PT Camera - EmpireTech

EmpireTech SD2A500HB-GN-AW-PV-S2 1/2.8" CMOS 5MP Full-color Network PT Camera

$119.00 $119.00
EmpireTech SD2A500HB-GN-AW-PV-S2 1/2.8" CMOS 5MP Full-color Network PT Camera - EmpireTech

EmpireTech SD2A500HB-GN-AW-PV-S2 1/2.8" CMOS 5MP Full-color Network PT Camera

$119.00 $119.00
Product
Overview
Reviews
FAQ
Camera
Image Sensor1/2.8" CMOS
Pixel5 MP
Max. Resolution2560 (H) × 1920 (V)
ROM128 MB
RAM128 MB
Electronic Shutter Speed1/3 s–1/100,000 s
Scanning SystemProgressive
Min. IlluminationColor: 0.005 lux@F1.6B/W: 0.0005 lux@F1.60 lux (illuminator on)
Illumination Distance30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light)
Illuminator On/Off ControlManual; auto; off
Illuminator Number2 (IR light)2 (White light)
Lens
Focal Length4.0 mm
Max. ApertureF1.6
Field of ViewH: 80.4°V: 58.1°D: 104.8°
Close Focus Distance0.3 m (0.98 ft)
Iris ControlFixed
DORI DistanceDetectObserveRecognizeIdentify
77.4 m (253.94 ft)31.0 m (101.71 ft)15.5 m (50.85 ft)7.74 m (25.39 ft)
PTZ
Pan/Tilt RangePan: 0° to 345°Tilt: 0° to +80°
Manual Control SpeedPan: 0.1°–74°/sTilt: 0.1°–36.4°/s
Preset SpeedPan: 62°/sTilt: 36.3°/s
Preset300.0
Power-off MemoryYes
Idle MotionPreset
Smart Event
IVSTripwire; intrusion
Human DetectionYes
Active Deterrence
Light WarningWhite light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound WarningSound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
Video
Video CompressionH.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability2 streams
Resolution5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame RateMain stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps)Sub stream: D1/CIF (1–25/30 fps)
Bit Rate ControlCBR/VBR
Video Bit RateH264: 512–8192 kbpsH265: 233–7680 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
WDRDWDR
HLCYes
White BalanceAuto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light
Gain ControlAuto; manual
Noise Reduction2D NR; 3D NR
Motion DetectionYes
Image Rotation180°
S/N Ratio≥ 55 dB
Audio
Audio CompressionPCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1
Network
Network PortRJ-45 (10/100 Base-T)
Wi-FiYes
Wi-Fi–Wireless Standard802.11n;IEEE802.11b;802.11g
Wi-Fi–Wireless Frequency Range2.4GHz
Wi-Fi–Wireless Transmission Rate150Mbps
Network ProtocolUDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
InteroperabilityRTMP;CGI;SDK;ONVIF (Profile S&T);P2P
Streaming MethodUnicast/Multicast
User/Host20
StorageMicro SD card (support max. 512 GB); FTP
BrowserIE: IE 7 and later versions; Chrome; Firefox; Safari
Management SoftwarePlayer;Smart Player ;Imou;DMSS;ConfigTool;NVR;Smart PSS
Mobile ClientiOS; Android
Certification
CertificationCE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Audio Input1 channel (built-in mic)
Audio Output1 channel (built-in speaker)
Two-way AudioYes
Alarm LinkageCapture; preset; recording; audio; sending email
Alarm EventMotion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Audio I/O1/1
Power
Power Supply12 VDC/1.5 A±10%
Power ConsumptionBasic: 3.5 WMax.: 11 W (illuminator)
Environment
Operating Temperature–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity≤ 95%
ProtectionIP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions140.5 mm × Φ111.0 mm (5.53" × Φ4.45")
Net Weight0.5 kg (1.10 lb)
Gross Weight1 kg (2.20 lb)
