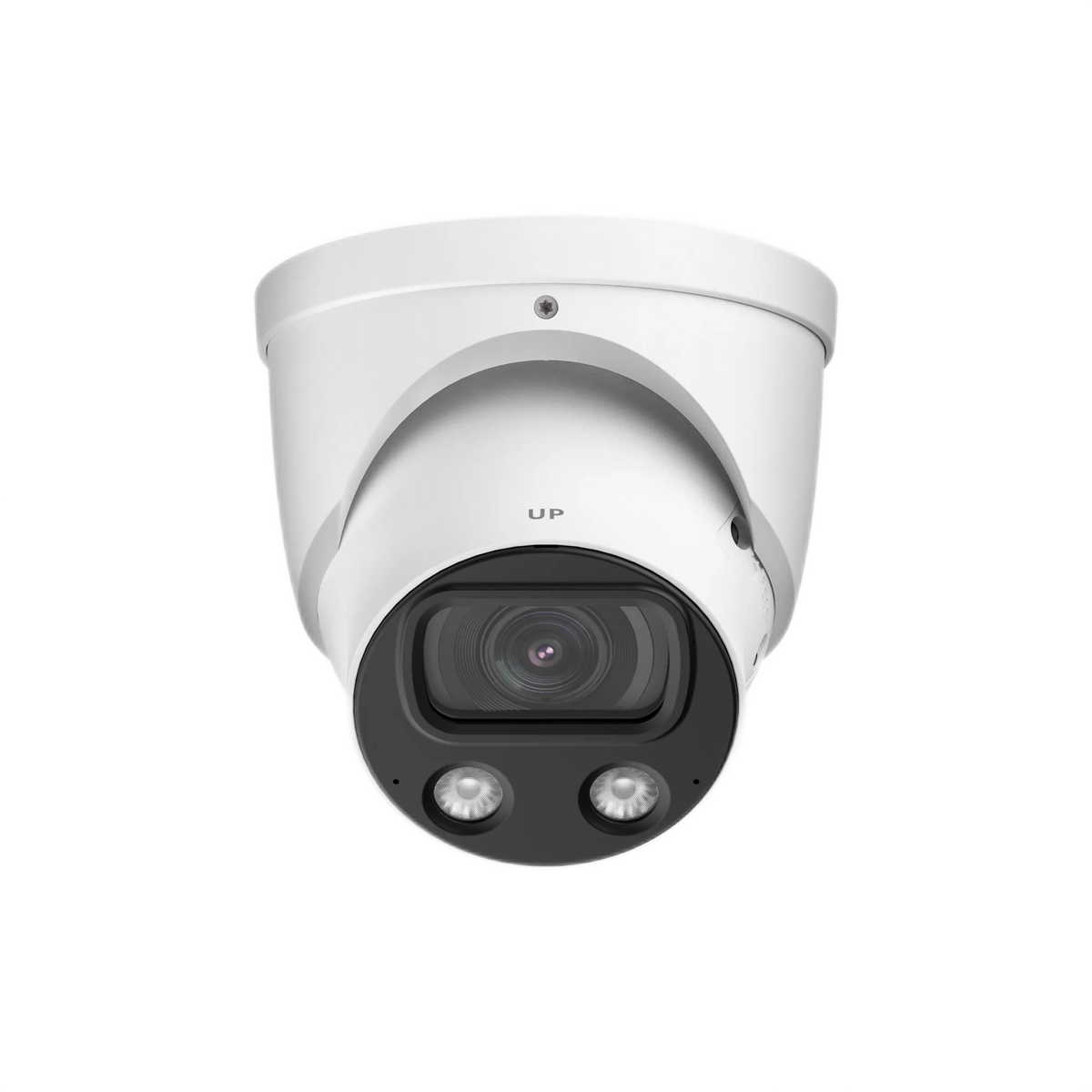

Camera |
Image Sensor | 1/1.2'' CMOS |
Max. Resolution | 3840 (H) × 2160 (V) |
ROM | 128 MB |
RAM | 1 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.0005Lux@F1.0 |
S/N Ratio | >56 dB |
Illumination Distance | 50 m (164.04 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
Lens |
Lens Type | Fixed-focal |
Mount Type | M22 |
Focal Length | 2.8 mm; 3.6 mm |
Max. Aperture | F1.0 |
Field of View | 2.8 mm: H: 102°; V: 53° ; D: 125°3.6 mm: H: 88°; V:48° ; D: 104° |
Iris Type | Fixed |
Close Focus Distance | 2.8 mm: 5 m (16.4 ft)3.6 mm: 6 m (19.7 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 95.6m (313.65 ft) | 38.2 m (125.33 ft) | 19.1 m (62.66 ft) | 9.6 m (31.50 ft) |
3.6 mm | 105.9 m (347.44 ft) | 42.4 m (139.11 ft) | 21.2 m (69.55 ft) | 10.6 m (34.78 ft) |
Smart event |
IVS | Abandoned object; missing object |
Heat Map | Yes |
Professional, intelligent |
IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+/Smart H.264+ |
Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps)Sub stream: D1 (1 fps–25/30 fps)Third stream: 1080p (1 fps–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 3 streams |
Resolution | 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 3 kbps–16384 kbpsH.265: 3 kbps–16384 kbps |
Day/Night | Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 140 dB |
Defog | Yes |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio |
Built-in MIC | Yes |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management |
Network |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
Interoperability | ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P |
User/Host | 20 (Total bandwidth: 80 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser | IE: IE9 and laterChromeFirefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Client | IOS; Android |
Certification |
Certifications | CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: 5mA 3V–5 VDC |
Alarm Output | 1 channel out: 300mA 12 VDC |
Power |
Power Supply | 12 VDC (±30%)/PoE (802.3af)/ePoE |
Power Consumption | Basic: 3.6 W (12 VDC); 5 W (PoE)Max. (H.265 + 3 streams + intelligence + LED): 7.9 W (12 VDC); 9.6 W (PoE) |
Environment |
Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
Protection Grade | IP67 |
Structure |
Casing | Metal |
Dimensions | Φ122 mm × 119.7 mm (Φ4.80" × 4.71" ) |
Net Weight | 0.74kg(1.63lb) |
Gross Weight | 0.96kg(2.12lb) |
