EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech

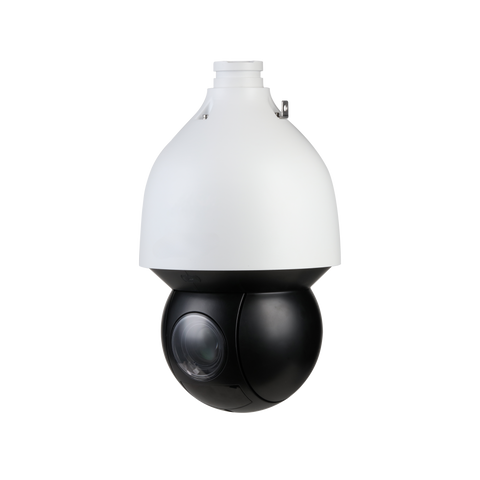

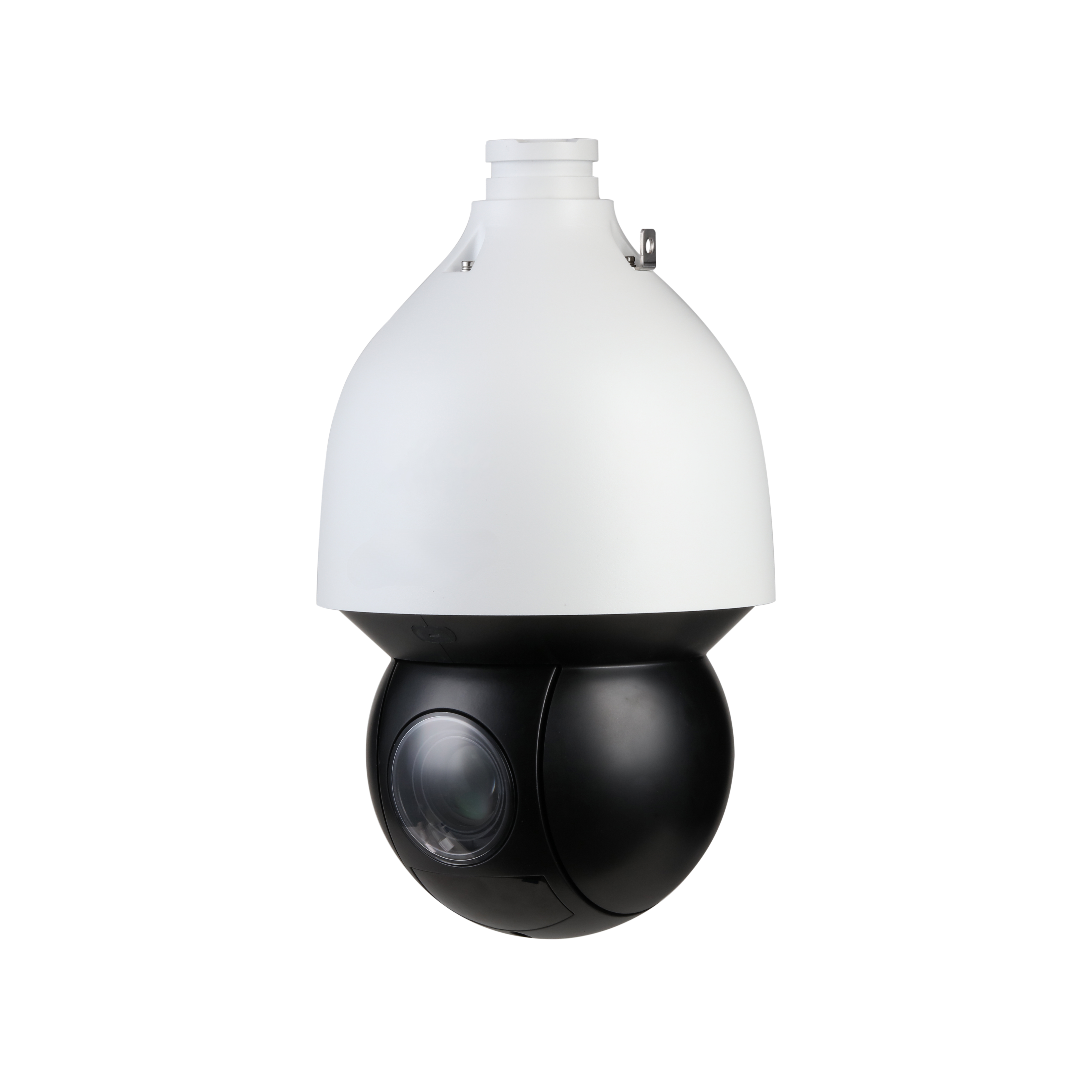

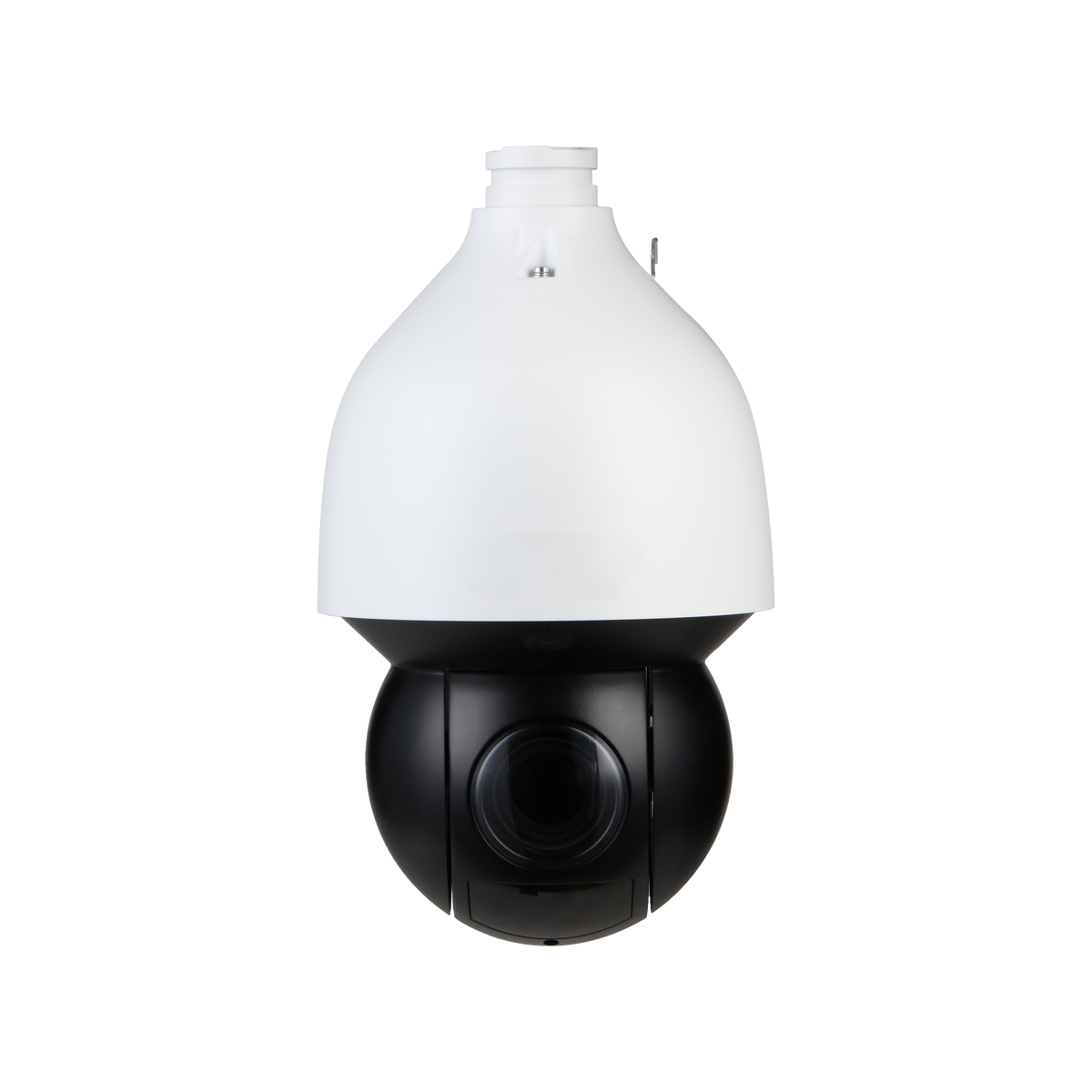

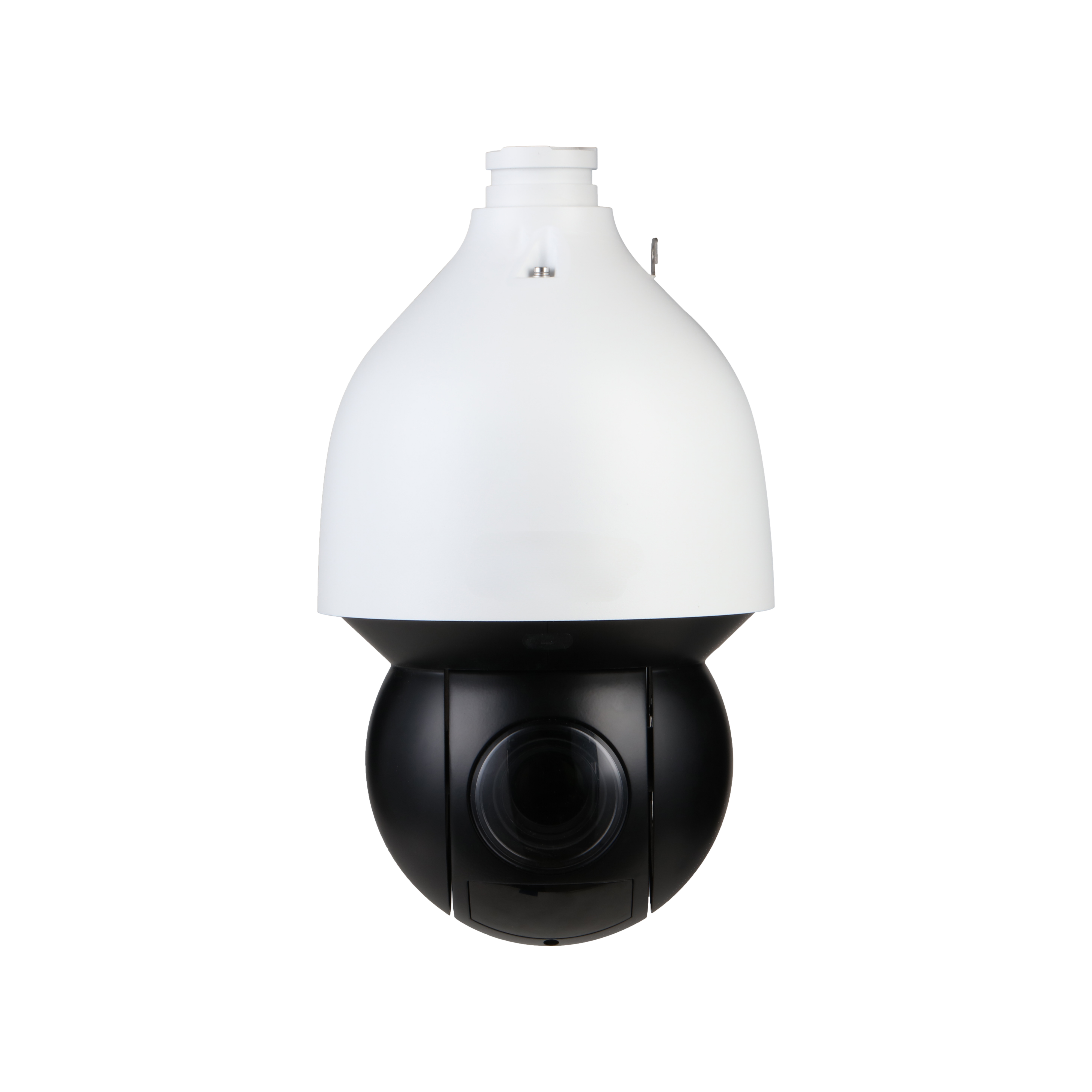

EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera

$799.99
$799.99
$799.99

Estimated delivery is 2 weeks, and expedited shipping is not available.

  • High-Quality Imaging with 4MP Resolution
  • 25× Optical Zoom Provide Close Up Views Over Expansive Areas
  • Expansive Night View With up to 150m IR Distance for 24/7 Monitoring
  • Enhanced Deep Learning-Based Human and Vehicle Classification
  • Face Detection: Leveraging Facial Data to Enhance Analytics Accuracy
  • Auto Tracking 3.0：Effective Target Monitoring with Detailed Intruder Trajectories
  • IP67 and IK10 Ratings for Protection Against Harsh Environments

🛑 Low stock! Only 1 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech

EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera

$799.99 $799.99
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech
EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera - EmpireTech

EmpireTech PTZ5A4M-25X-S2 1/1.8" CMOS 4MP 25x Starlight IR 5.4mm–135mm Vari-Focal PTZ Camera

$799.99 $799.99
Product
Overview
Specs
Reviews
FAQ

Installation Type

Packing List Included: PFB305W Wall Mount
Optional Accessories（Most mount needs to be purchased separately）：

(Included)







Product Specs
Camera
Image Sensor1/1.8" CMOS
Pixel4 MP
Max. Resolution2560 (H) × 1440 (V)
ROM4 GB
RAM1 GB
Electronic Shutter Speed1 s–1/30,000 s
Scanning SystemProgressive
Min. Illumination0.001 lux@1.5 (Color, 30 IRE);
0.0001 lux@1.5(B/W, 30 IRE);
0 lux (Illuminator on)
Illumination Distance150 m (492.13 ft) (IR)
Illuminator On/Off ControlZoom Prio; Manual; Auto; Off
Illuminator Number4 (IR light)
Lens
Focal Length5.4 mm–135 mm
Max. ApertureF1.6–F4.0
Field of ViewH: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°
Optical Zoom25 x
Focus ControlAuto; semi-auto; manual
Close Focus Distance0.1 m–2 m (0.33 ft–6.56 ft)
Iris ControlAuto, manual
DORI DistanceDetectObserveRecognizeIdentify
1862.1 m (6109.25 ft)735.5 m (2413.06 ft)372.4 m(1221.78 ft)186.2 m (610.89 ft)
PTZ
Pan/Tilt RangePan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180°
Manual Control SpeedPan: 0.1°/s–300°/s;
Tilt: 0.1°/s–140°/s
Preset SpeedPan: 0.1°/s–400°/s;
Tilt: 0.1°/s–300°/s
Preset300
Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Power-off MemoryYes
Idle MotionPattern; Preset; Scan; Tour
Intelligence
IVS (Perimeter Protection)Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object;
fast moving; parking detection; people gathering; human alarm classification; linkage tracking
Face DetectionSupports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images.
Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected.
Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo.
The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto TrackingAuto tracking
Smart Motion DetectionSmart Motion Detection 4.0
Quick PickYes
Video
Video CompressionH.264H; H.264B; Smart H.265+; H.265; MJPEG(Sub Stream); Smart H.264+; H.264M
Streaming Capability3 streams
Resolution4M (2560 × 1440); 3M (2304× 1296); 1080p (1920 × 1080); 960p (1280 ×960);720p (1280 × 720);
D1 (704 × 576/704 × 480);VGA (640 ×480); CIF (352 × 288/352 × 240)
Video Frame RateMain stream: 4M/3M/1080p/1.3M/720p @ (1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate ControlCBR/VBR
Video Bit RateH264: 96 Kbps–14,848 Kbps
H265: 38 Kbps–8,960 Kbps
Day/NightAuto (ICR); Color/B/W
BLCYes
WDR140 dB
HLCYes
White BalanceAuto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain ControlAuto; manual
Noise Reduction2D NR; 3D NR
Motion DetectionYes
Region of Interest (RoI)Yes
Image StabilizationElectronic Image Stabilization (EIS)
DefogElectronic
Digital Zoom16 ×
Image Rotation180°
Privacy MaskingUp to 24 areas can be set, with up to 8 areas in the same view;Multiple colors and mosaic available
S/N Ratio≥55 dB
Audio
Audio CompressionPCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723
Network
Network PortRJ-45 (10/100 Base-T)
Network ProtocolFTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;QoS;HTTPS;SNMP;
TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;RTSP;ARP
InteroperabilityONVIF (Profile S & Profile G & Profile T);CGI;SDK
Streaming MethodUnicast/Multicast
User/Host20 (total bandwidth: 64 M)
StorageMicro SD card (512 GB); FTP/SFTP; NAS
Browserweb5.0:IE 9 and later versions;
Chrome 41 and later versions;
Firefox 52 and later versions;
Safari 10 and later versions
Mobile ClientiOS; Android
Certification
CertificationsCE; FCC
Port
Audio Input1 channel (LINE IN, bare wire)
Audio Output1 channel (LINE OUT,bare wire)
Alarm Input2 (on-off value input: 0–5 VDC)
Alarm Output1 channel
Alarm LinkageCapture; recording; send email; preset; tour; pattern; alarm digital output
Alarm EventMotion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply24 VDC, 2.5 A ± 25%PoE+ (802.3at)
Power ConsumptionBasic: 11 W
Max. (Basic power consumption + WDR + IR on + PTZ operation): 22 W (24 VDC)
Environment
Operating Temperature–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity≤95%
ProtectionTVS 6000 V lightning proof;IP67; surge protection; voltage transient protection
Structure
Product DimensionsΦ331.9 mm × 190.4 mm (Φ13.07" × 7.50")
Net Weight4.7 kg (10.36 lb)
Gross Weight8 kg (17.64 lb)
