EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech

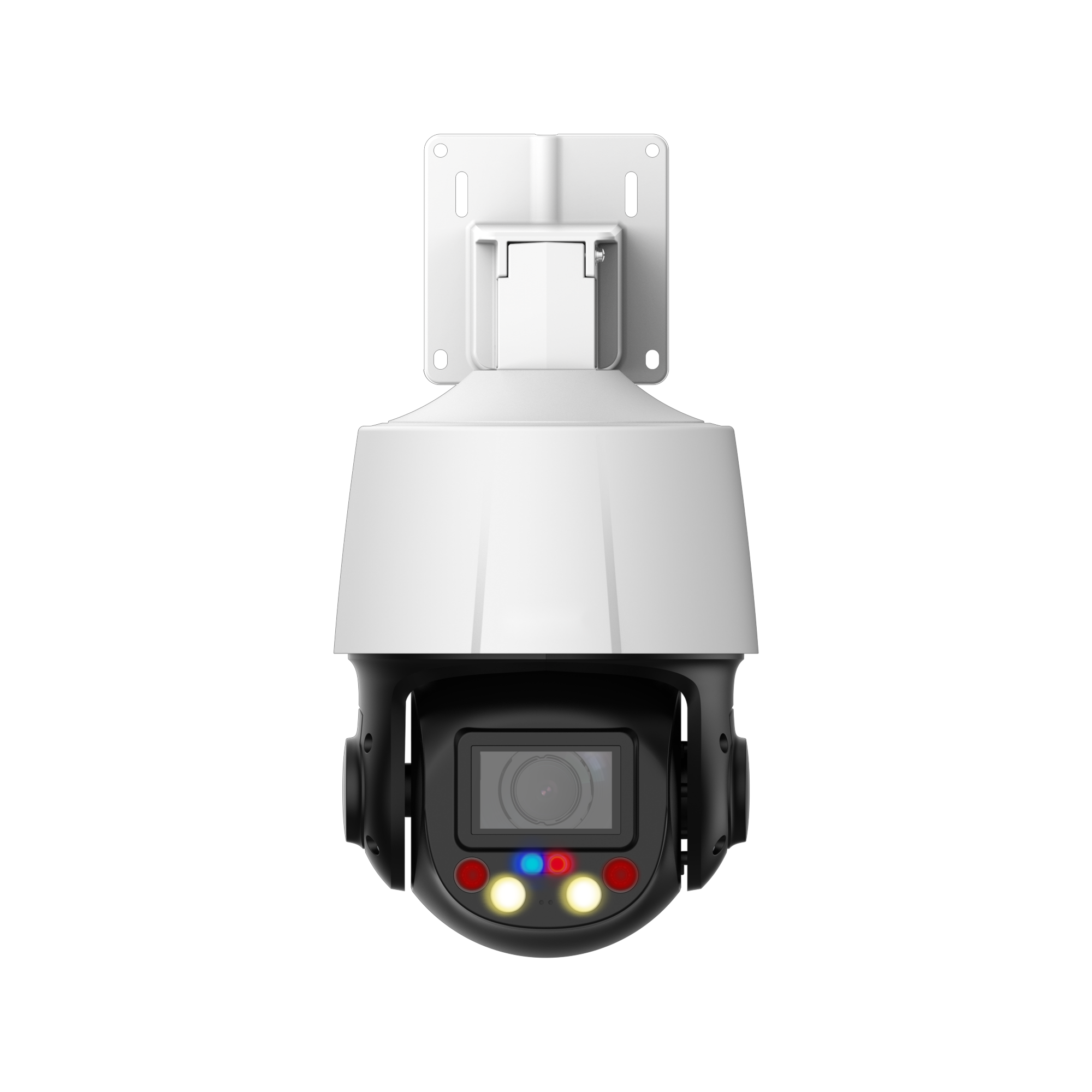

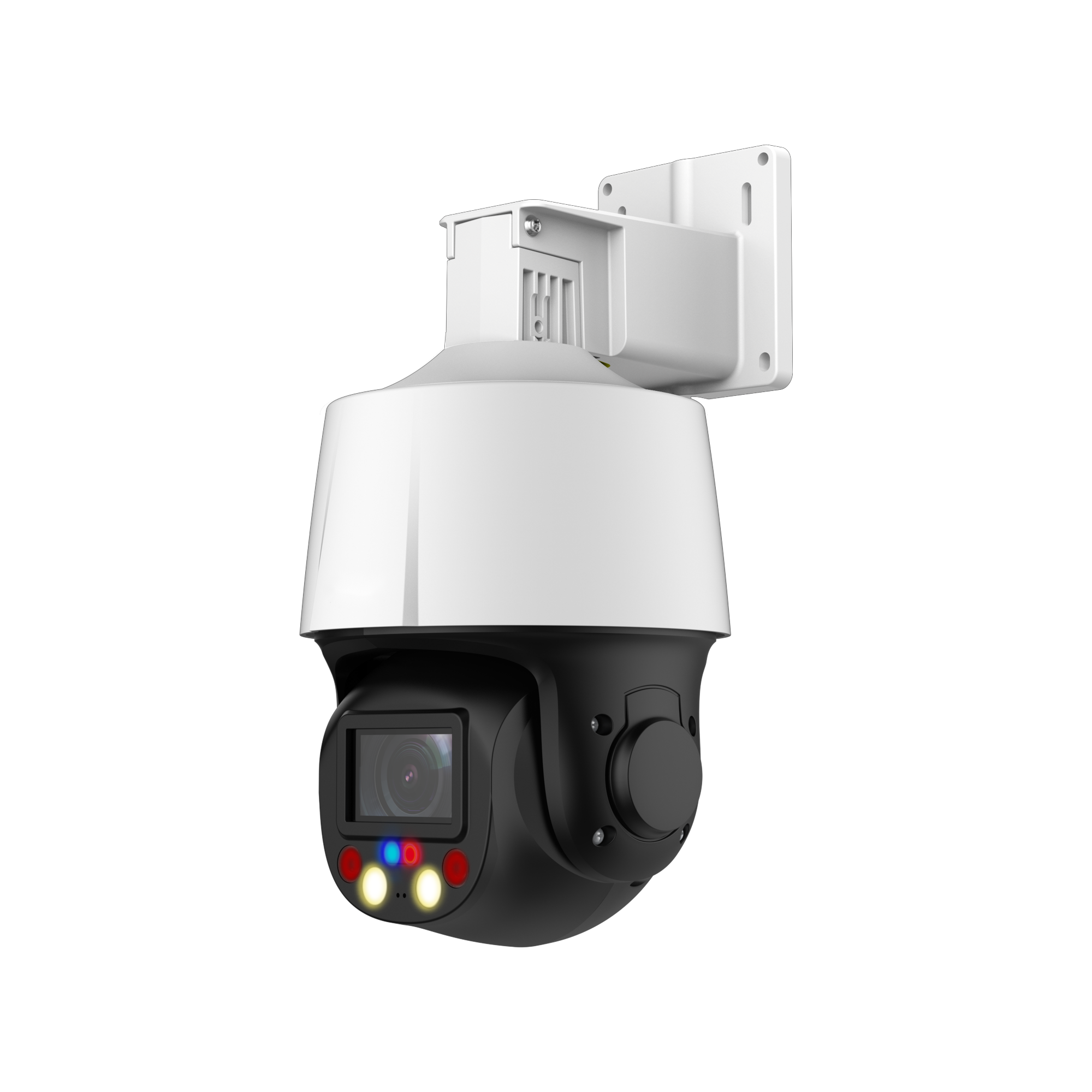

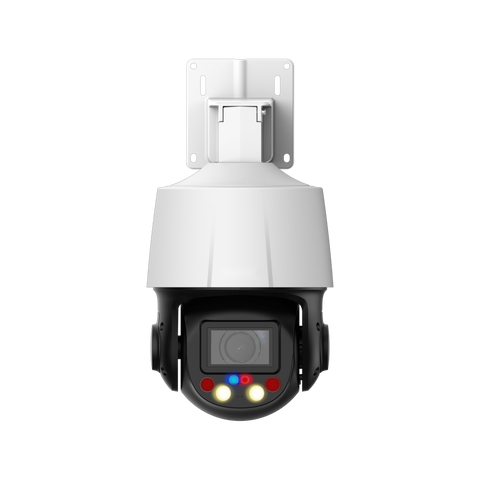

EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x TiOC 2.7mm–13.5mm Vari-Focal PTZ Camera

$229.99
$249.99
$229.99
The EmpireTech PTZ3E405-AI is a high-end security TiOC camera that features a 1/2.8" CMOS, a 4MP resolution, and 5x Network PTZ. It also includes Two-way talk and 4 alarm lights: 2 IR, 2 Warm, 1 Red, and 1 Blue. All of these features combine for excellent security and surveillance capabilities.

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech

EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x TiOC 2.7mm–13.5mm Vari-Focal PTZ Camera

$249.99 $229.99
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech
EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x Network PTZ Camera Support Two-way Talk Built-in 2 IR, 2 Warm light, 1 Red light, 1 Blue light - EmpireTech

EmpireTech PTZ3E405-AI 1/2.8"CMOS 4MP 5x TiOC 2.7mm–13.5mm Vari-Focal PTZ Camera

$249.99 $229.99
Product
Overview
Specs
Reviews
FAQ

4MP 5x TiOC Network PTZ Camera

  • 1/2.8" 4Megapixel CMOS.
  • 5x optical zoom.
  • Max. 25/30fps@4M.
  • IR distance up to 50 m.
  • Warm light illumination distance up to 30 m.
  • SMD 3.0.
  • Perimeter protection.
  • Face detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out.
  • Built-in Mic and Speaker for Two-way Talk.
  • 12 VDC/PoE power supply.
  • IP66.
  • Sound and light alarm (red and blue lights).


Installation Type

SD3E405DB-GNY-A-PV1 installation type

Optional Accessories（Mount needs to be purchased separately）：

PFA121 PFA152-E



PTZ3E405-AI package list PTZ3E405-AI SD card slot and hard reset button PTZ3E405-AI Dimensions

Packing List

  • Network Camera × 1
  • Mounting Bracket × 1
  • Installation Package × 1

SD Card Slot and Hard Reset Button

Do not keep the lower cover open for a long time in humid environment, in case of water mist risk.

  • SD card slot is available on select models.
  • Disconnect the power from the device before installing the SD card.
  • Press the reset button for 10 seconds to reset the device.Please do this when device ic powered on.

Dimensions (mm[inch])

  • Product Dimensions 165.5 mm × 140 mm × 271.6 mm (6.52" × 5.51" ×10.69") (L × W × H)
  • Net Weight 1.5 kg (3.31 lb)
  • Gross Weight 2.1 kg (4.63 lb)







Product Specs
Camera
Image Sensor1/2.8" CMOS
Pixel4 MP
Max. Resolution2560 (H) × 1440 (V)
ROM128 MB
RAM512 MB
Electronic Shutter Speed1/1 s–1/30,000 s
Scanning SystemProgressive
Min. IlluminationColor: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance50 m (164.04 ft) (IR)
30 m (98.43 ft) (Warm light)
Illuminator On/Off ControlZoom Prio; Manual; Auto; Off
Illuminator Number2 (IR)
2 (Warm light)
1 (Red light)
1 (Blue light)
Lens
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.6–F3.0
Field of ViewH: 94.9°–30.1°;
V: 51°–17.1°;
D: 112.3°–34.6°
Optical Zoom5×
Focus ControlAuto; semi-auto; manual
Close Focus Distance1.5 m (4.92 ft)
Iris ControlFixed
DORI DistanceDetectObserveRecognizeIdentify
270 m(885.83 ft)106.6 m(349.74 ft)54 m(177.17 ft)27 m(88.58 ft)
PTZ
Pan/Tilt RangePan: 0° to 355°
Tilt: –15° to +90°
Manual Control SpeedPan: 0.1°/s–36°/s
Tilt: 0.1°/s–25.8°/s
Preset SpeedPan: 35.7°/s;
Tilt: 27.1°/s
Preset300
Power-off MemoryYes
Idle MotionPreset
Intelligence
IVS (Perimeter Protection)Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection;
people gathering; vehicle/human alarm classification; linkage tracking
Face DetectionSupports face detection, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first
Auto Tracking LiteYes
SMDYes
Active Deterrence
Light WarningRed and blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low
Sound WarningOffers 11 types of sound alarms, and supports importing up to 10 custom sound alarms.
The sound alarm can be set to play 1 to 10 times
Video
Video CompressionH.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability3 streams
Resolution4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576);
VGA (640 × 480); CIF (352 × 288)
Video Frame RateMain stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Sub stream 2: 720p @(1–25/30 fps)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 96 kbps–14848 kbps
H.265: 38 kbps–8960 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
WDR120 dB
HLCYes
White BalanceAuto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain ControlAuto; manual
Noise Reduction2D NR; 3D NR
Motion DetectionYes
Region of Interest (RoI)Yes
Image StabilizationElectronic (EIS)
DefogElectronic
Digital Zoom16×
Image Rotation180°
S/N Ratio≥55 dB
Audio
Audio CompressionG.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Network
Network PortRJ-45 (10/100 Base-T)
Network ProtocolFTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;
HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
InteroperabilityCGI;SDK;ONVIF (Profile S&G&T);P2P
Streaming MethodUnicast/Multicast
User/Host20 (total bandwidth: 64 M)
StorageFTP/SFTP; Micro SD card (512 GB); NAS
BrowserIE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management SoftwareDMSS;DSS Pro
Mobile ClientiOS;Android
Certification
CertificationsCE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm LinkageCapture; recording; send email; preset; alarm digital input; audio; warning light
Alarm EventMotion/tampering detection; audio detection; network disconnection detection; IP conflict detection;
memory card state detection; memory space detection
Alarm I/O1/1
Audio I/O1/1
Power
Power Supply12 VDC, 2 A ± 10%PoE+ (802.3at)
Power ConsumptionBasic: 4.5 W
Max.: 15 W (illuminator + PTZ + speaker + heating glass)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity≤95%
ProtectionIP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" ×9.29")
Net Weight1.5 kg (3.31 lb)
Gross Weight2.1 kg (4.63 lb)
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision,
contact your local sales representative for assistance with selecting the model.


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tyson Matheney
Good Camera

Easy to setup and get running. Good image quality and PTZ control speed.

Have a question?

We are here to help.

Check out the most common questions our customers asked. Still have questions ? Contact our customer support.

100% compatibility is not guaranteed.

Most of EmpireTech security cameras have an IP66 or IP67 protection.

We will deliver the goods within 1-2 working days after the order is completed.

It depends on the delivery address. Shipping is free to most areas. If it is a remote address, shipping costs will be incurred.
Please contact our customer support [sales02@empiretech01.com]
