| Camera |
| Image Sensor | Overview channel: 1/2.8" CMOS;
Detail channel: 1/2.8" CMOS |
| Pixel | Overview channel: 8 MP;
Detail channel: 4 MP |
| Max. Resolution | Overview channel: 5376 (H) × 1520 (V);
Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB;
Detail channel: 4 GB |
| RAM | Overview channel: 2 GB;
Detail channel: 1GB |
| Electronic Shutter Speed | Overview channel: 1 s–1/100,000 s;
Detail channel: 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Detail channel: 1 s–1/30,000 s0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light)
Detail channel:7 0 m (229.66 ft); 30 m (98.43 ft) (white light) |
| Illuminator On/Off Control | Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off |
| Illuminator Number | Overview channel: 2 (IR light); 2 (white light);
Detail channel: 2 (Dual light fusion); 2 (IR light) |
| Lens |
| Focal Length | Overview channel: 2.8 mm;
Detail channel: 4 mm–40 mm |
| Max. Aperture | Overview channel: F1.6;
Detail channel: F1.6-F3.6 |

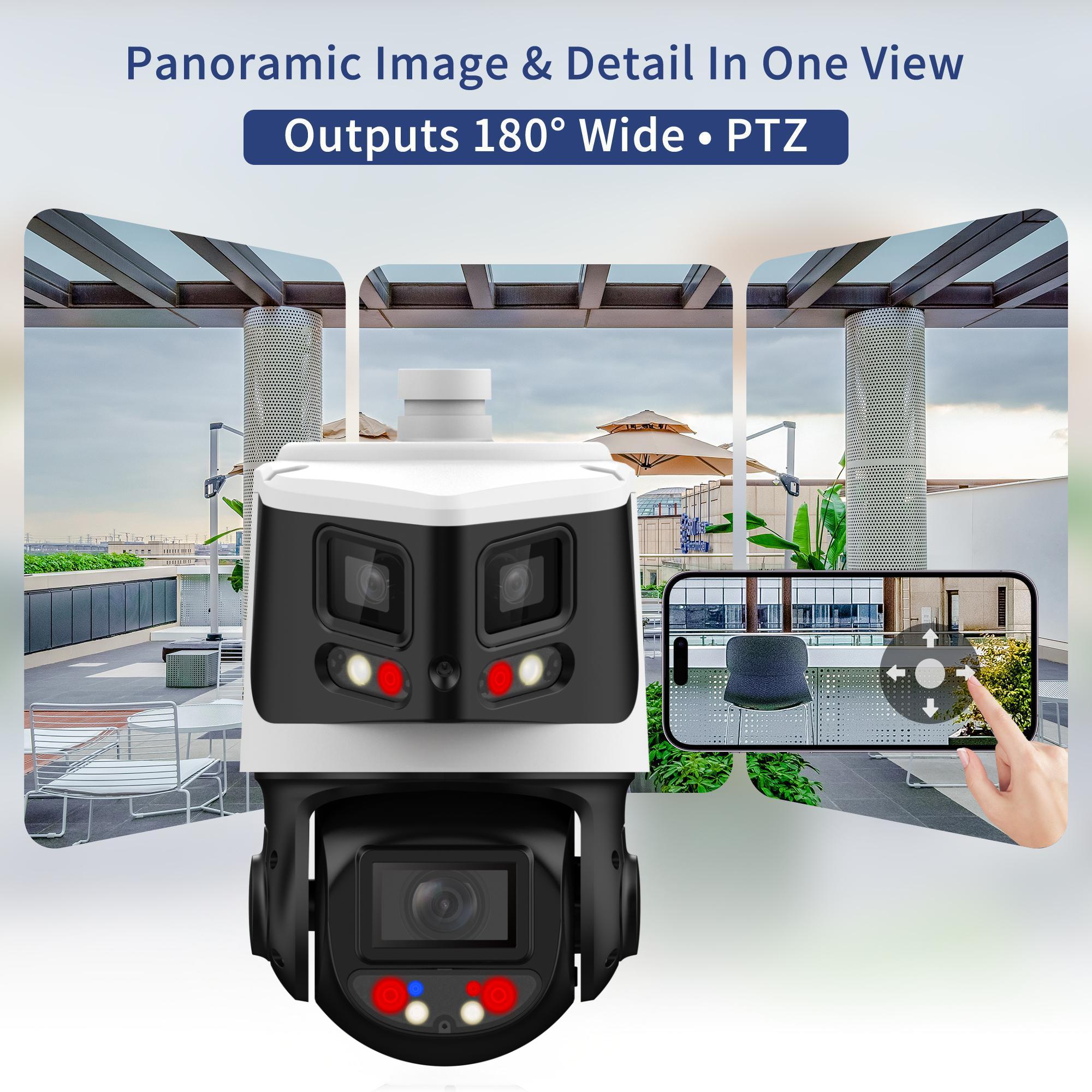

| Field of View | Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° |
| Optical Zoom | Overview channel: NA;
Detail channel: 10× |
| Focus Control | Auto; manual; semi-auto |
| Close Focus Distance | Overview channel: 0.6 m (1.97 ft);
Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris Control | Overview channel: NA;Detail channel: NA |
| DORI Distance | Detect | Observe | Recognize | Identify |
| 500 m(1640.42 ft) | 197.5 m(647.97 ft) | 100 m(328.08 ft) | 50 m(164.04 ft) |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing
the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent
function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| PTZ |
| Pan/Tilt Range | Pan: 0° to 345°;
Tilt: -10° to +90° |
| Manual Control Speed | Overview channel: NA;
Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s |
| Preset Speed | H: 80°/s; V: 50°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Intelligence |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection;
people gathering; human/vehicle alarm classification; linkage tracking (only for people) |
| Face Detection | Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots
and enhancing face images.
Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected.
Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo.
The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image
among a group of snapshots. |
| SMD | SMD 4.0 |
| SMD | Yes |
| Active Deterrence |
| Light Warning | Red and blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.Play times can be set from 1-10. |
| Video |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | Overview channel:
5376 × 1520; 26886 × 752;
1080p (1920 × 1080);
720p (1280 × 720); 1344 × 368;
D1 (704 × 576/704 × 480);
CIF (352 × 288/352 × 240);
Detail channel:
2560 × 1440; 3M (2304 × 1296);
1080p (1920 × 1080); 1280 × 960 (1.3M);
720p (1280 × 720); D1 (704 × 576/704 × 480);
CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel:
Main stream: 5376 × 1520 @(1–25/30 fps)
Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps);
Detail channel:
Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Overview channel:
H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel:
H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps |
| Day/Night | Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR
Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio |
| Noise Reduction | Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic
Detail channel: Electronic |
| Digital Zoom | Overview channel: NA
Detail channel: 16× |
| Image Rotation | Overview channel: NA
Detail channel: 180° |
| S/N Ratio | Overview channel: ≥55dB
Detail channel: ≥55dB |
| Audio |
| Audio Compression | Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA |
| Network |
| Network Port | RJ-45 (100 Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP;
NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
| Port |
| Audio Input | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input | 1 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection;
memory card state detection; memory space detection |
| Power |
| Power Supply | 12 VDC, 3 A ± 10%
PoE+(802.3at) |
| Power Consumption | Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ) |
| Environment |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Structure |
| Product Dimensions | 140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H) |
| Net Weight | 2.17 kg (4.78 lb) |
| Gross Weight | 3.1 kg (6.83 lb) |
|
