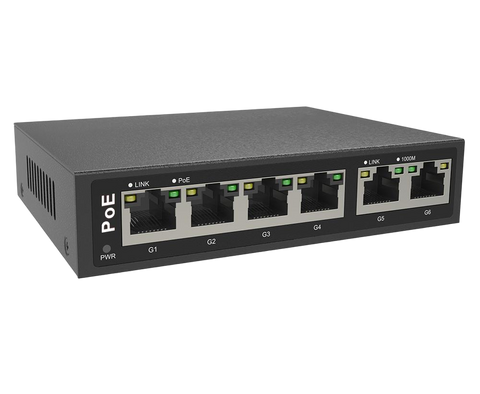

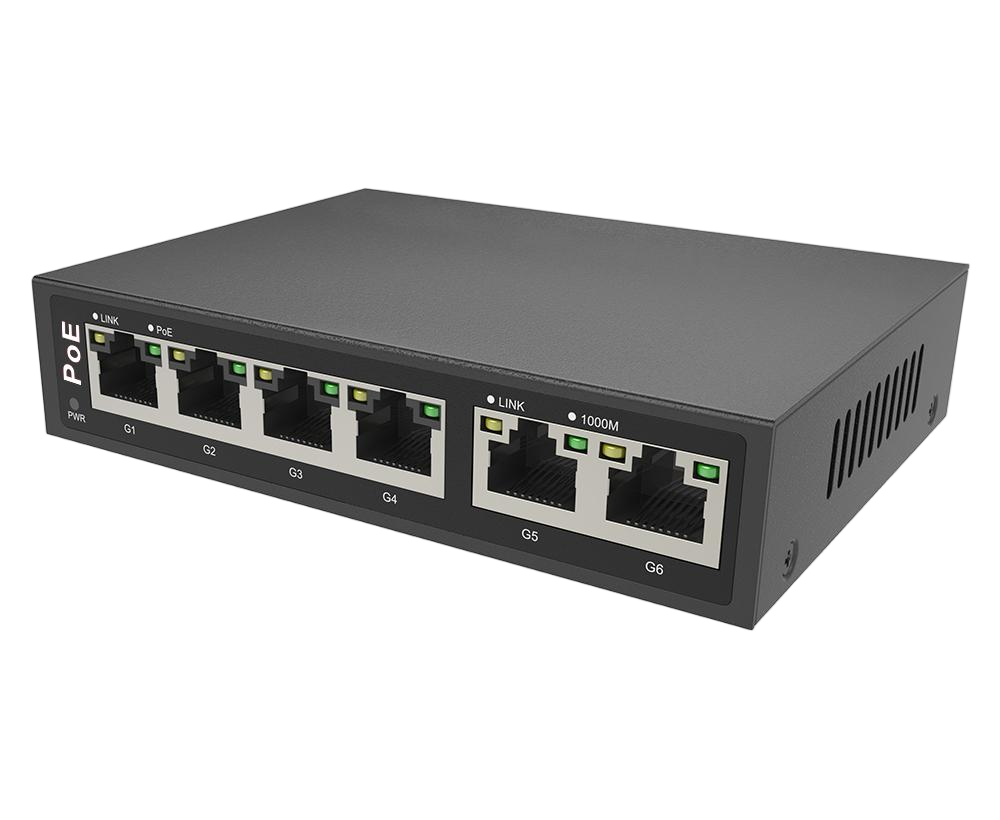

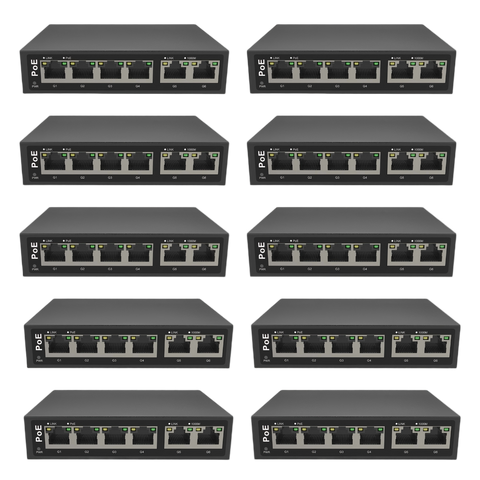

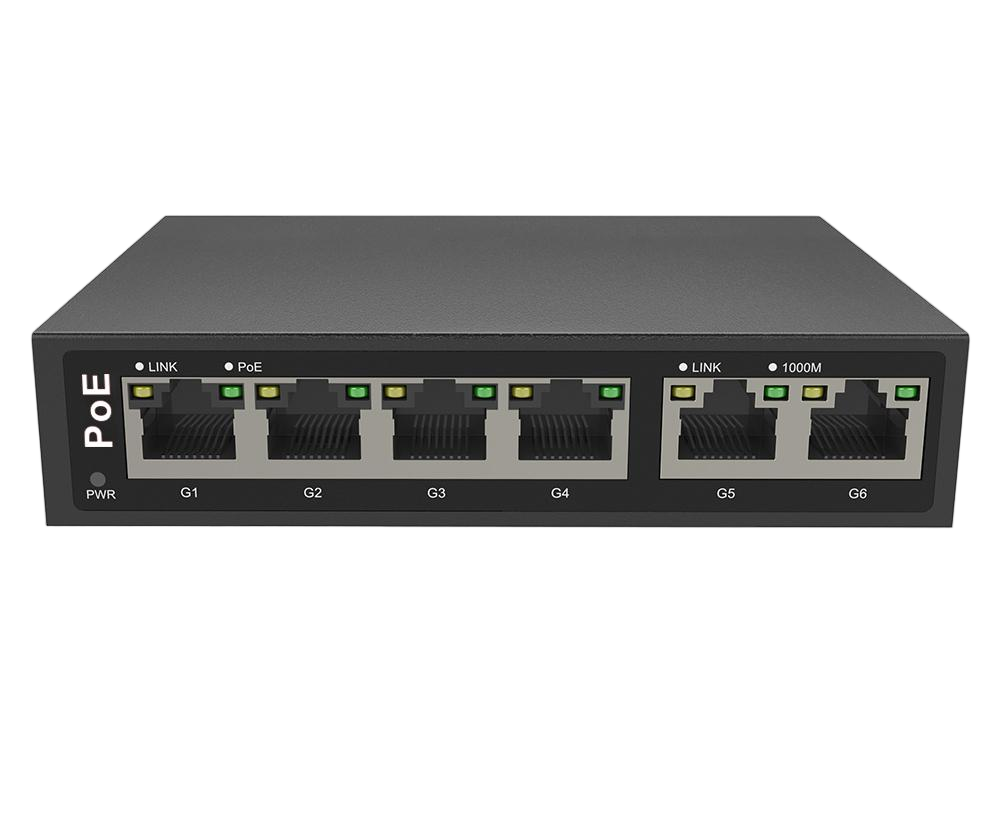

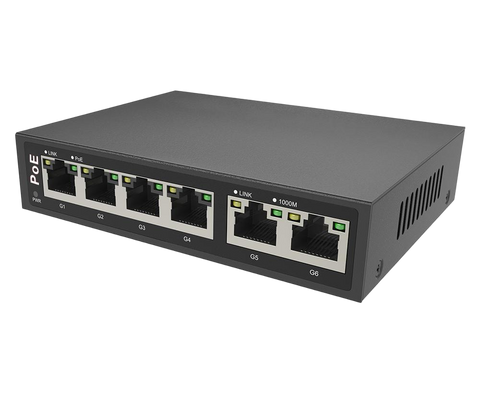

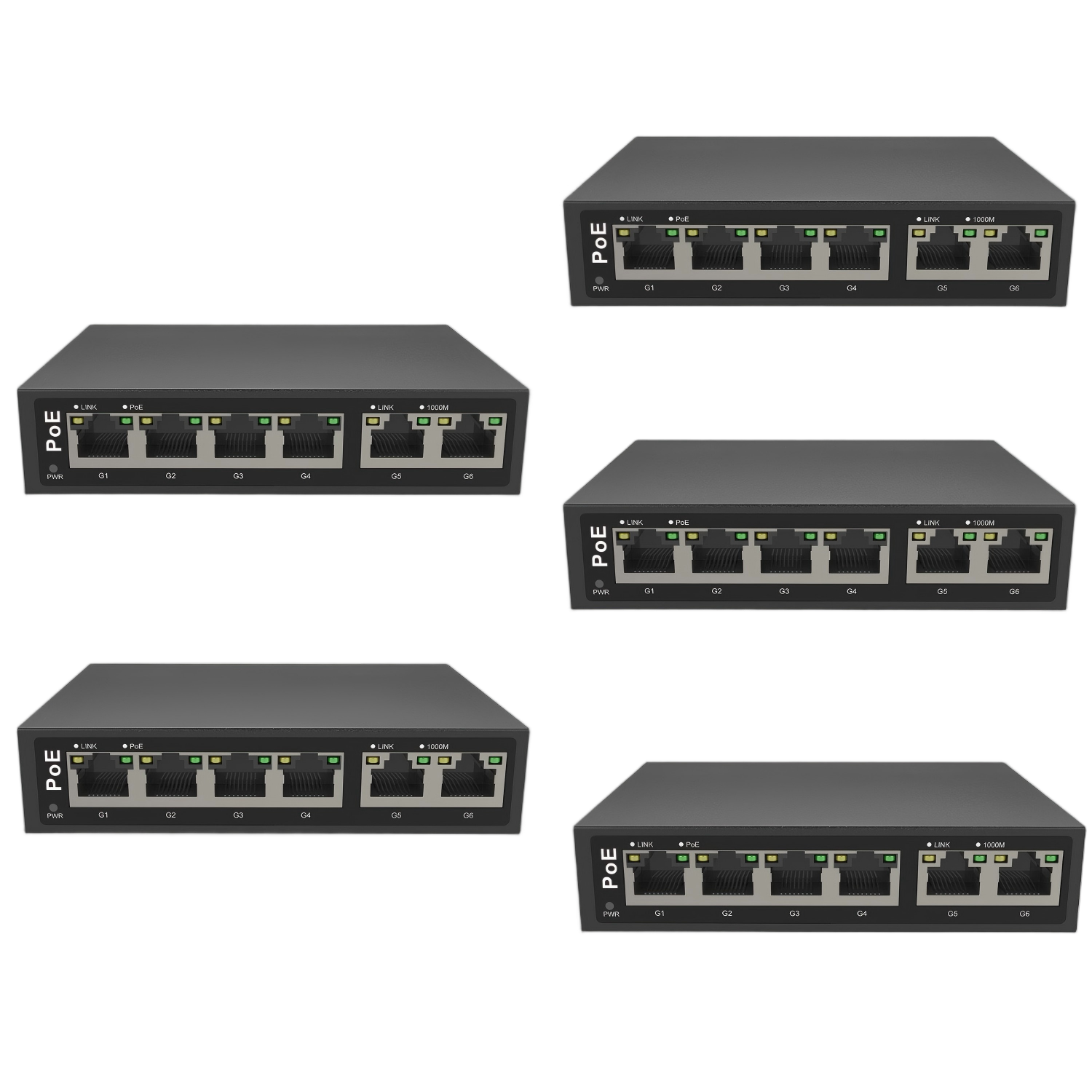

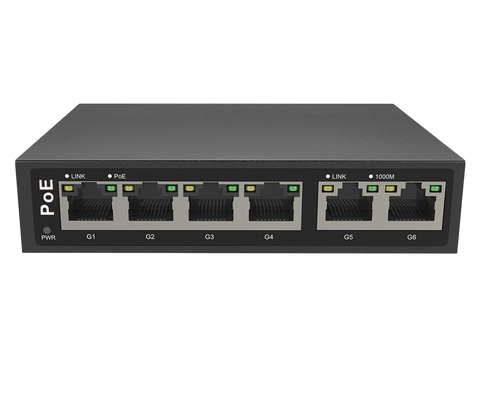

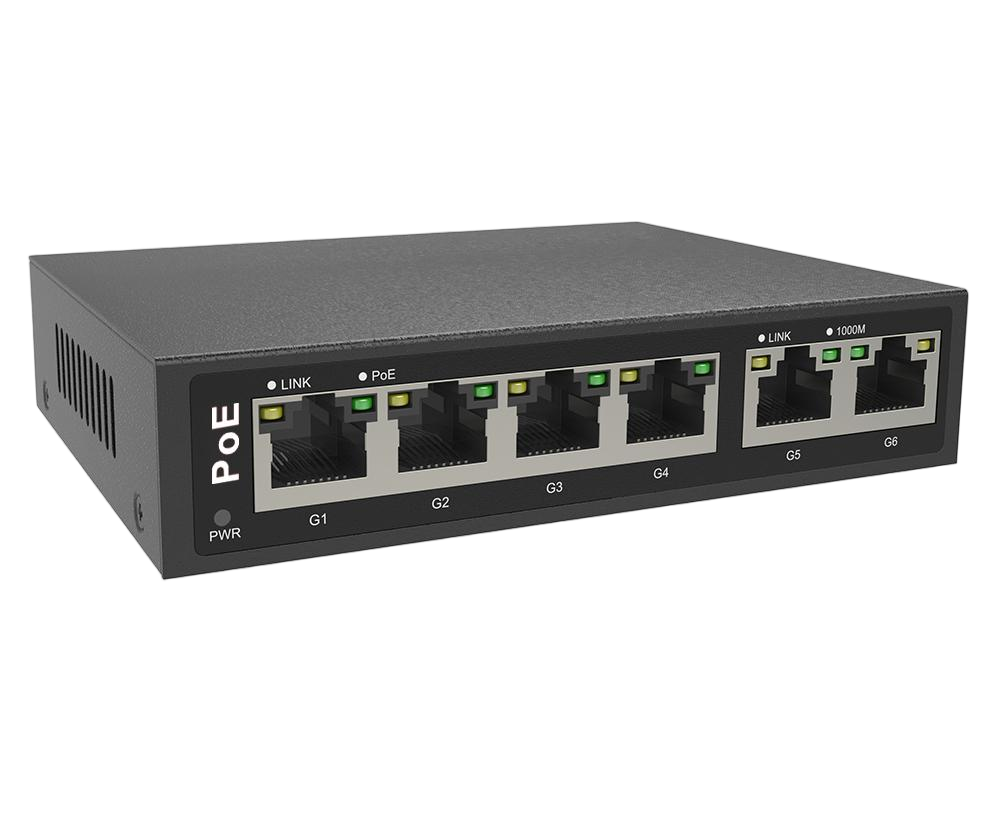

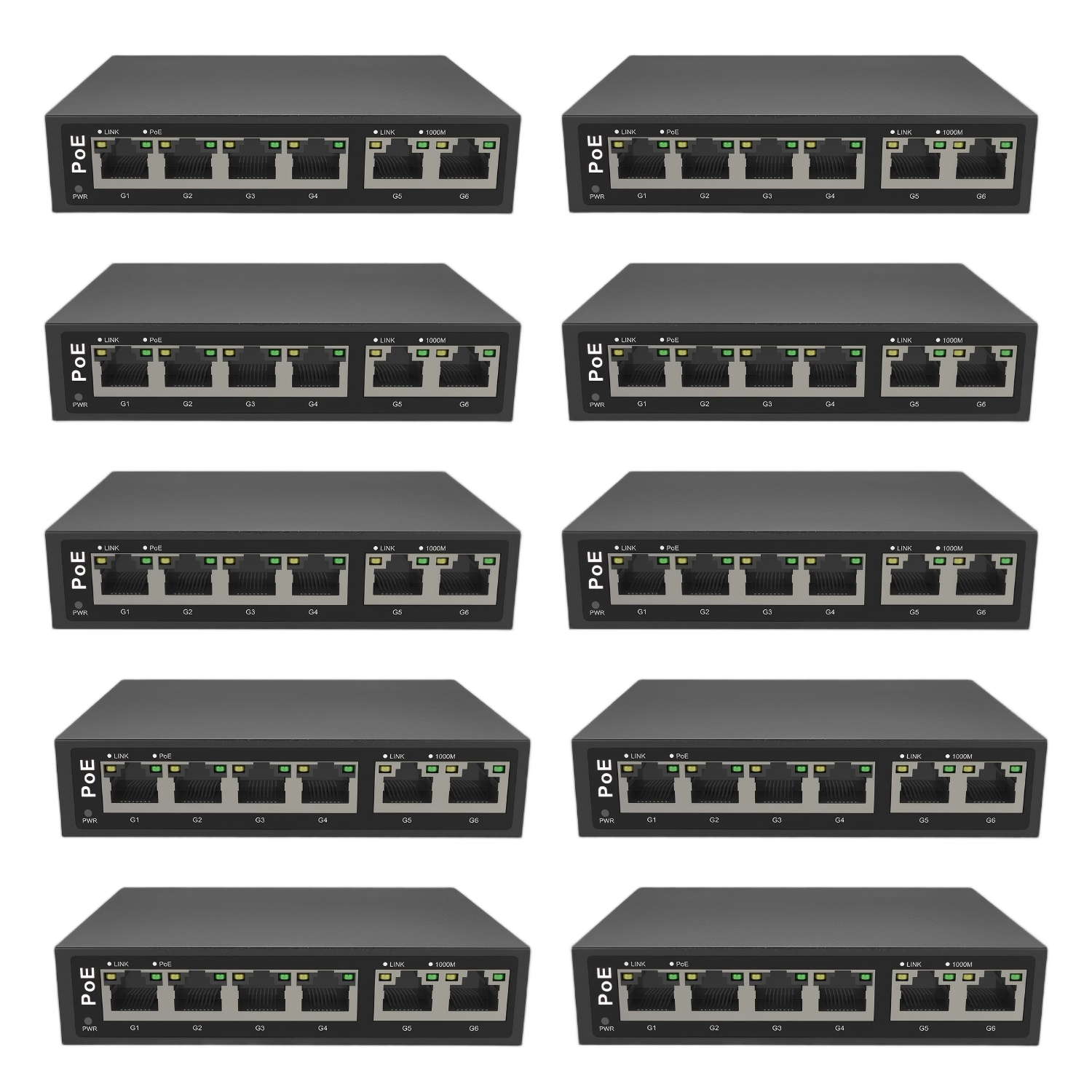

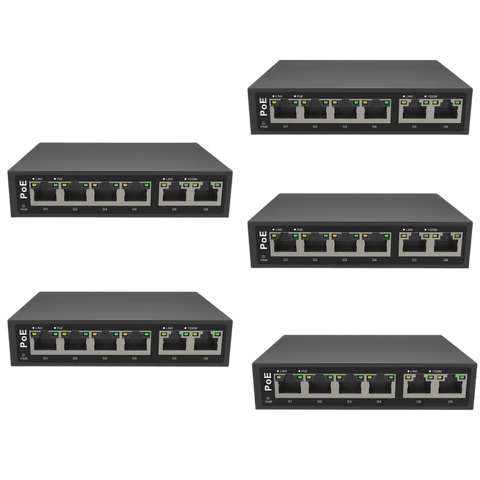

EmpireTech POE4CH-110W Gigabit 6-port PoE switch

$59.99
$59.99
$59.99
  • Unmanaged PoE switch with 6*10/100/1000M RJ45 ports.
  • Port 1-4 can support IEEE 802.3 af/at PoE standard. External power supply.
Number: 1

🛑 Low stock! Only 5 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech

EmpireTech POE4CH-110W Gigabit 6-port PoE switch

$59.99 $59.99
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech
EmpireTech POE4CH-110W Gigabit 6-port PoE switch - EmpireTech

EmpireTech POE4CH-110W Gigabit 6-port PoE switch

$59.99 $59.99
Number: 1
Product
Overview
Specs
Reviews
FAQ

FEATURE

Gigabit access, full-line speed forwarding

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Support all-line high-speed forwarding,user-flexibly flexible networking, to meet the needs of various scenarios networking.



Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.



Stable and reliable

◇ Plug and play, no configuration, simple and convenient.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link and PoE.

◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

Product Specs
Interface Characteristics
Fixed Port4*10/100/1000Base-T PoE ports (Data/Power)2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet PortPort 1-6 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP (≤100 meters)100BASE-TX: Cat5 or later UTP (≤100 meters)1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network ProtocolIEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding ModeStore and Forward (Full Wire Speed)
Switching Capacity16Gbps (Non-blocking)
ForwardingRate@64byte8.93Mpps
MAC8K
Buffer Memory2M
Jumbo Frame10K
LED IndicatorPower: PWR (Green), Data: Link(Yellow), PoE: PoE (Green)
PoE & Power Supply
PoE PortPort 1-4
Power Supply Pin1/2(+) 3/6 (-)
Max Power Per Port30W, IEEE 802.3 af/at
Total PWR / Input Voltage110W/ DC52V
Power ConsumptionStandby<6W, Full load<110W
Power SupplyExternal power adapter, AC100~240V 50-60Hz, 2.0A
Physical Parameter
Operation TEMP/ Humidity-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity-40°C~+75°C, 5%~95% RH Non condensing
Dimension (L*W*H)118*95*28mm
Net /Gross Weight0.35kg /0.85kg
InstallationDesktop, wall mount
Certification & Warranty
Lightning ProtectionLightning protection: 4KV 8/20us, Protection level: IP30
CertificationCE, FCC
Warranty2 years, lifelong maintenance.
