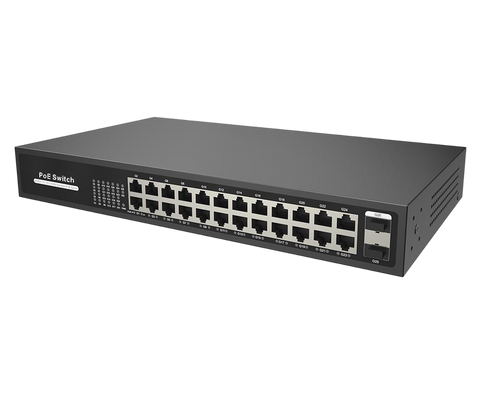

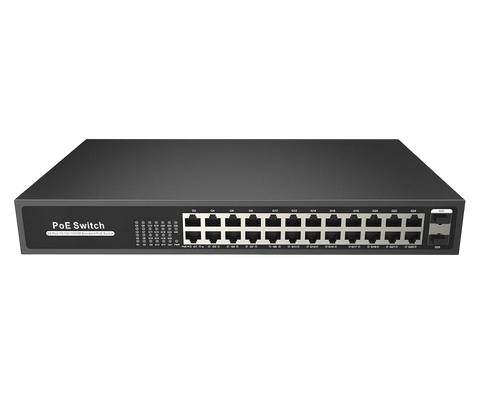

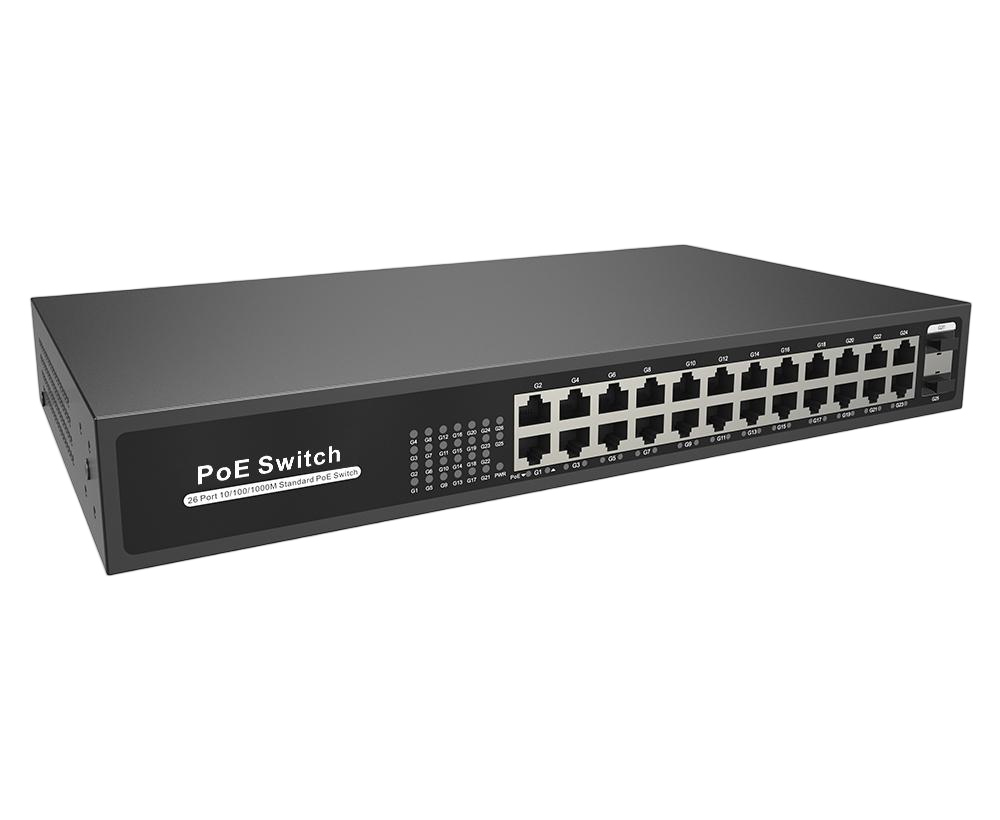

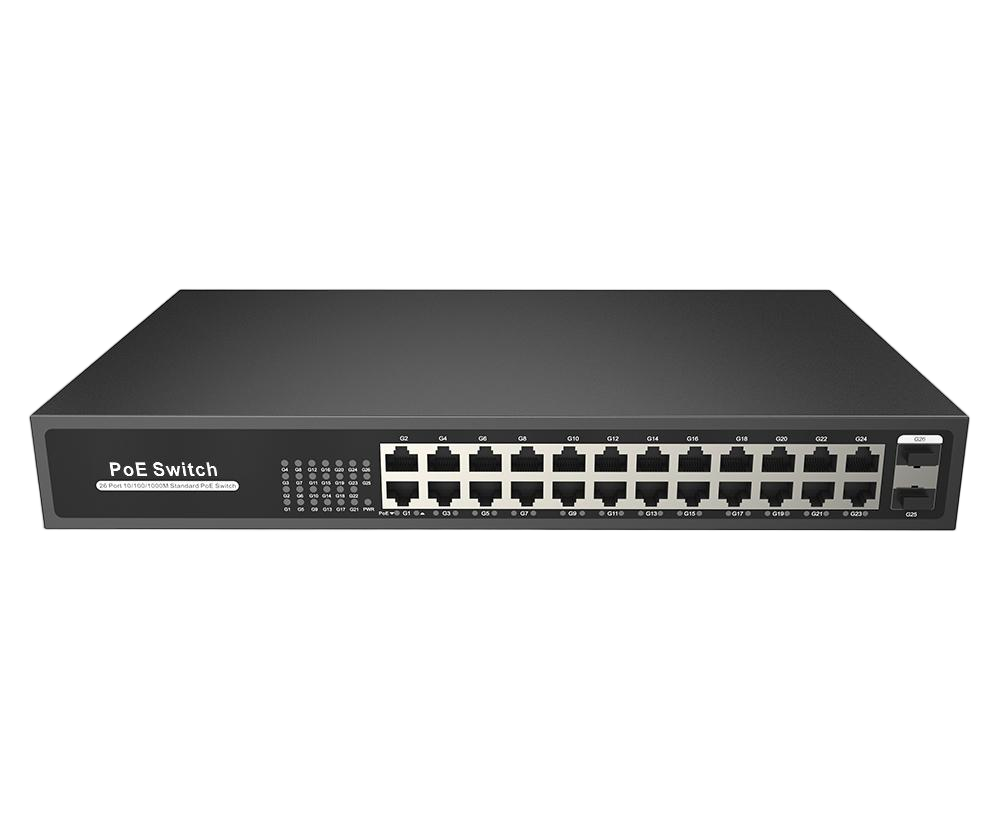

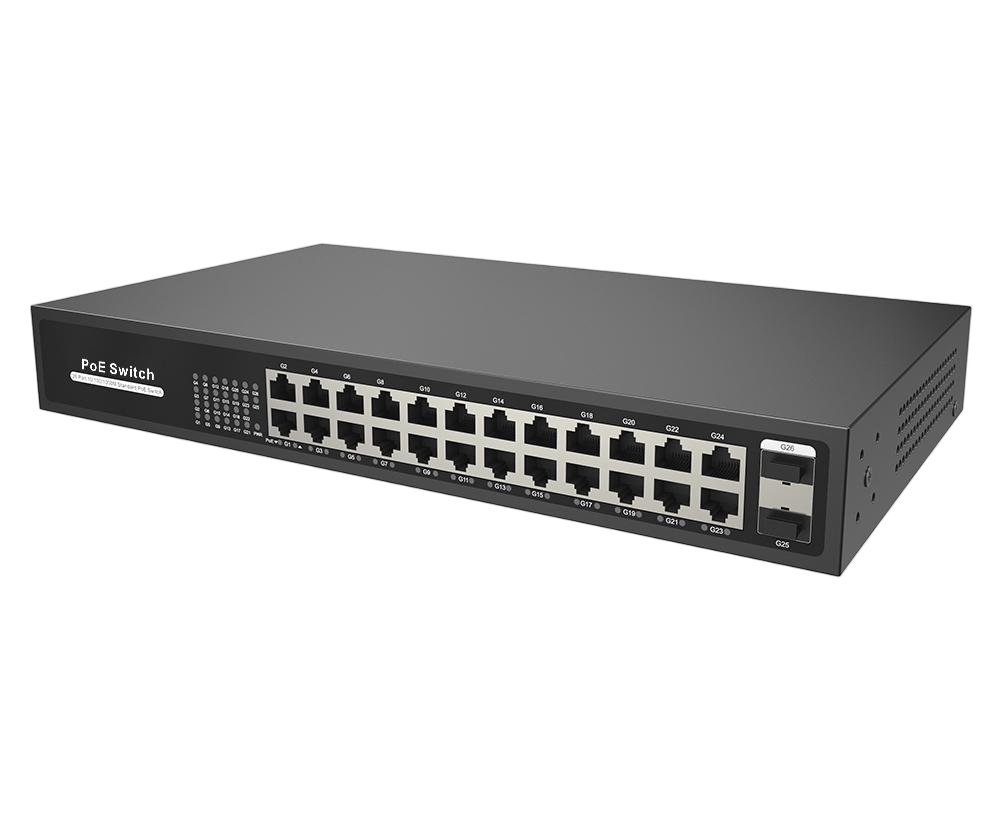

EmpireTech POE24CH-250W Gigabit 26-port PoE switch

$159.99
$159.99
$159.99
  • PoE switch with 24*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports.
  • Port 1-24 can support the IEEE802.3 af/at PoE standard. It built-in power supply and 1U/19” cabinet installation.
Number: 1

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech

EmpireTech POE24CH-250W Gigabit 26-port PoE switch

$159.99 $159.99
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech
EmpireTech POE24CH-250W Gigabit 26-port PoE switch - EmpireTech

EmpireTech POE24CH-250W Gigabit 26-port PoE switch

$159.99 $159.99
Number: 1
Product
Overview
Specs
Reviews
FAQ

FEATURE

Gigabit access

◇ Support IEEE 802.3x full-duplex flow control and Backpressure.

◇ Support non-blocking wire-speed forwarding for smoother transmission.

◇ Provide Gigabit RJ45 ports and SFP fiber port uplink for flexible networking, and meet the networking requirements of various scenarios.


Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 24*10/100/1000Base-T RJ45 ports can support PoE power, meeting the PoE power requirements of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.


Stable and reliable

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

◇ Low power consumption, with fan, galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.

Product Specs
Interface Characteristics
Fixed Port24*10/100/1000Base-T PoE ports (Data/ Power)2*1000Base-X uplink SFP fiber ports (Data)
Ethernet PortPort 1-16/ 1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3, 4, 5 UTP (≤100 meters)100BASE-TX: Cat5 or later UTP (≤100 meters)1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber PortDefault no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ DistanceMulti-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network ProtocolIEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding ModeStore and forward (Full wire speed)
Switching Capacity52Gbps (non-blocking)
Forwarding Rate@64byte38.69Mpps
MAC8K
Buffer Memory4M
LED IndicatorPower: PWR (Green), Network: Link (Green), PoE: PoE (Green), Fiber port: G1/G2 (Green)
PoE &Power Supply
PoE PortPort 1-24
Power Supply Pin1/2 (+) 3/6 (-)
Max Power Per Port30W, IEEE802.3 af/at
Total PWR/ Input Voltage250W /(AC100-240V)
Power ConsumptionStandby<20W, full load<250W
Power SupplyBuilt-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/ Humidity-20°C~55°C, 5%~90% RH non condensing
Storage Temp/ Humidity-40°C~75°C, 5%~95% RH non condensing
Dimension (L*W*H)330*204*44mm
Net /Gross Weight1.9kg /2.4kg
InstallationDesktop, wall mount, 1U/19” cabinet
Certification &Warranty
Lightning ProtectionLightning protection: 4KV 8/20us, Protection level: IP30
CertificationCE, FCC
Warranty1 year, lifelong maintenance.
