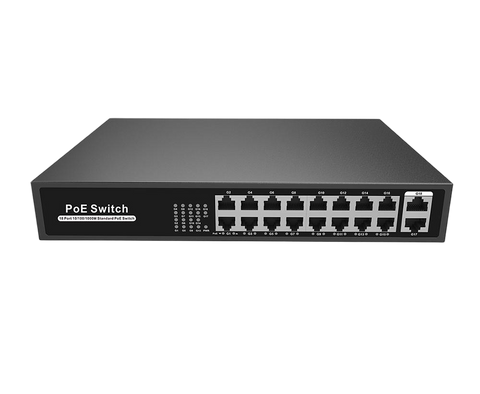

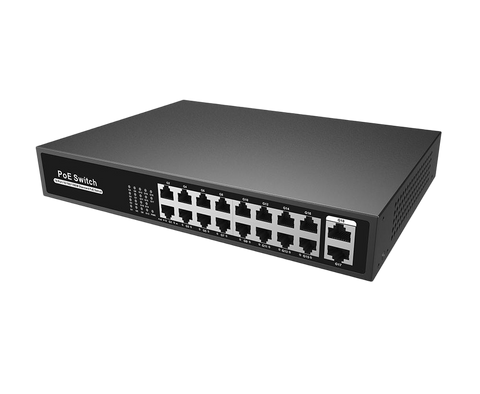

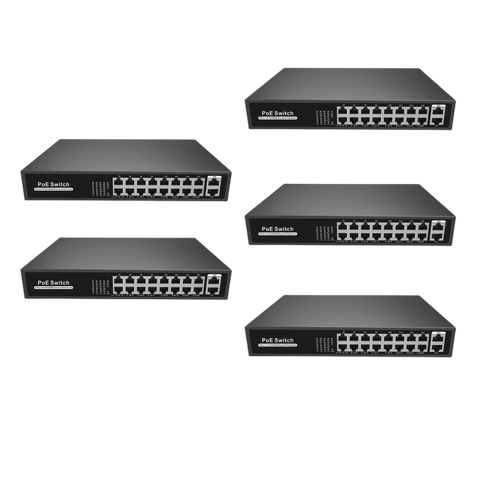

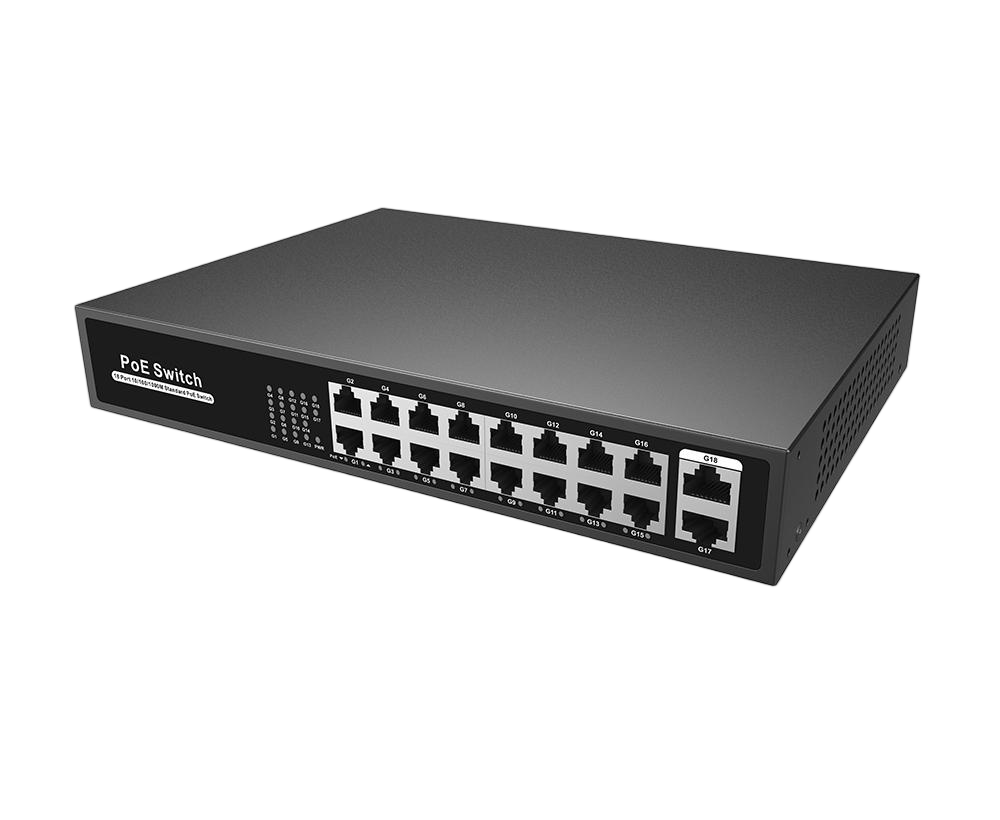

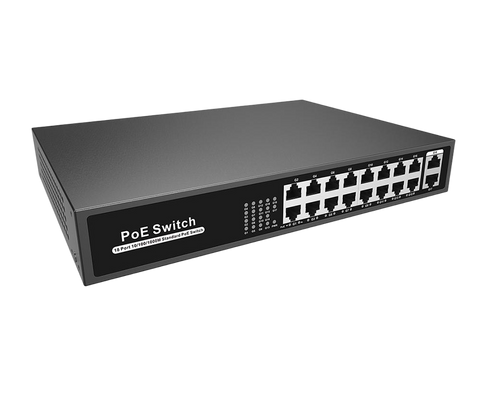

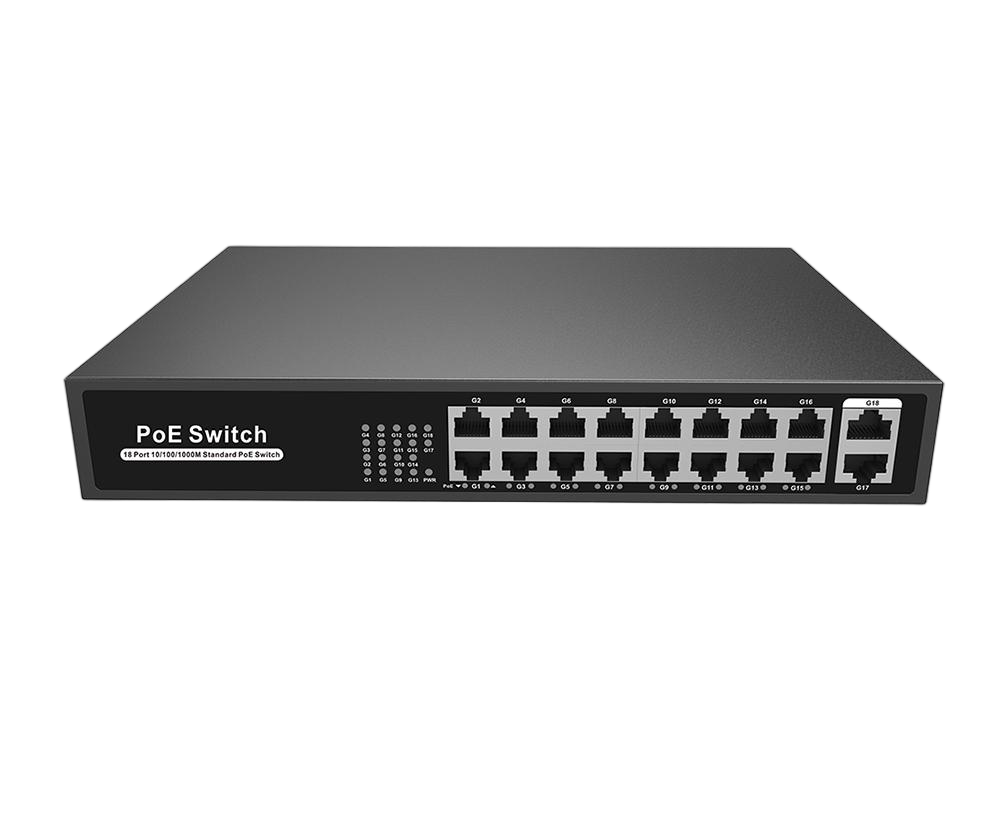

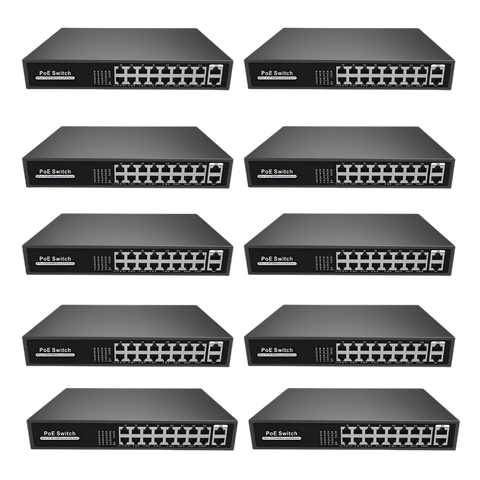

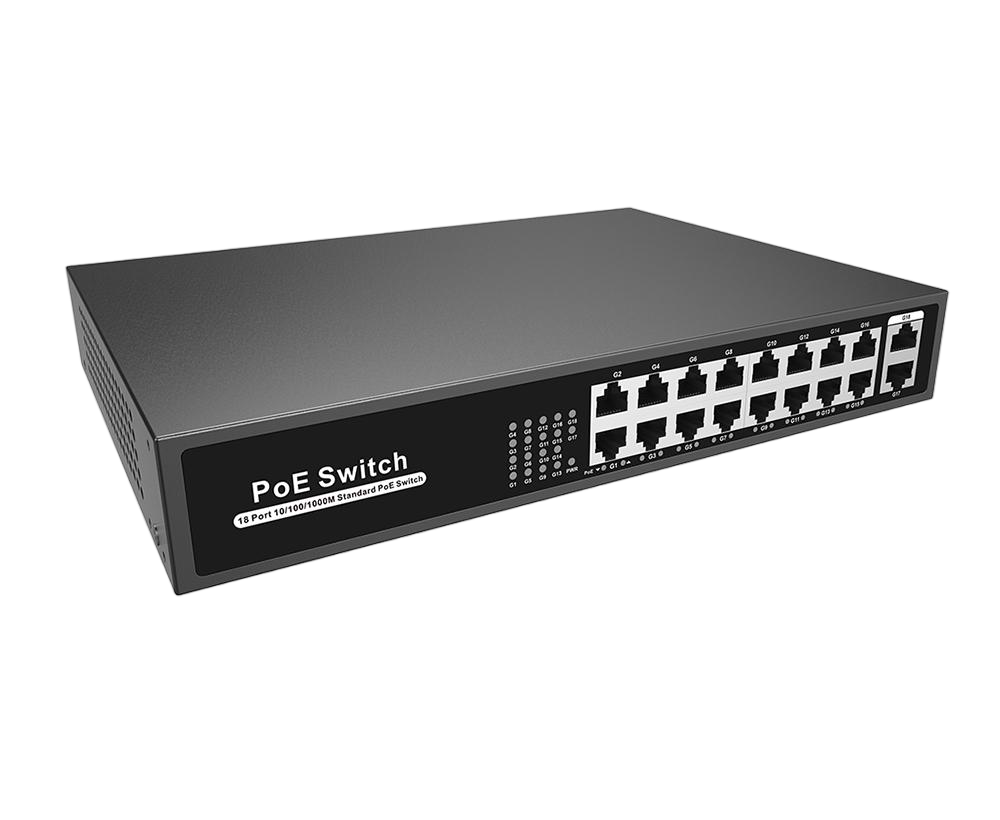

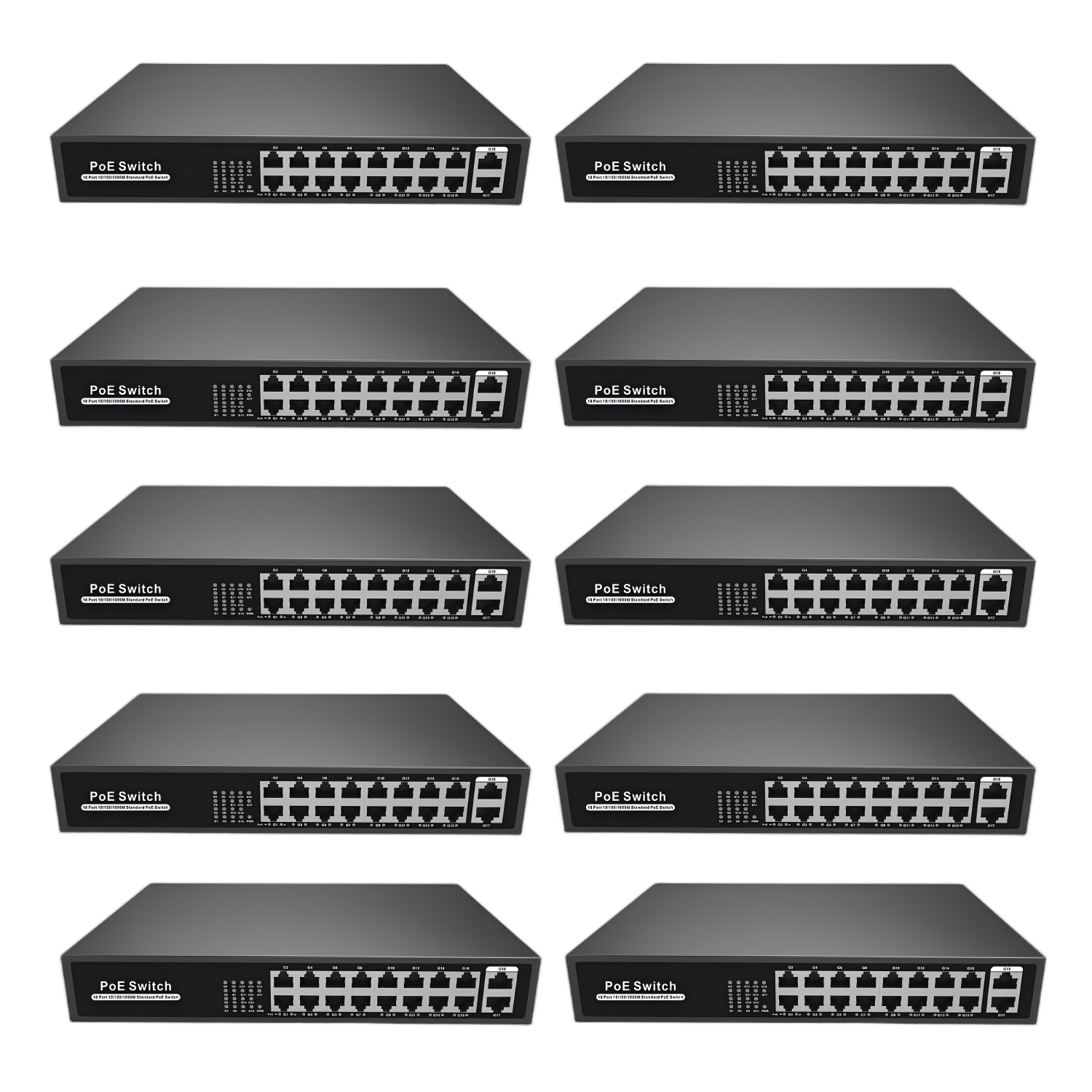

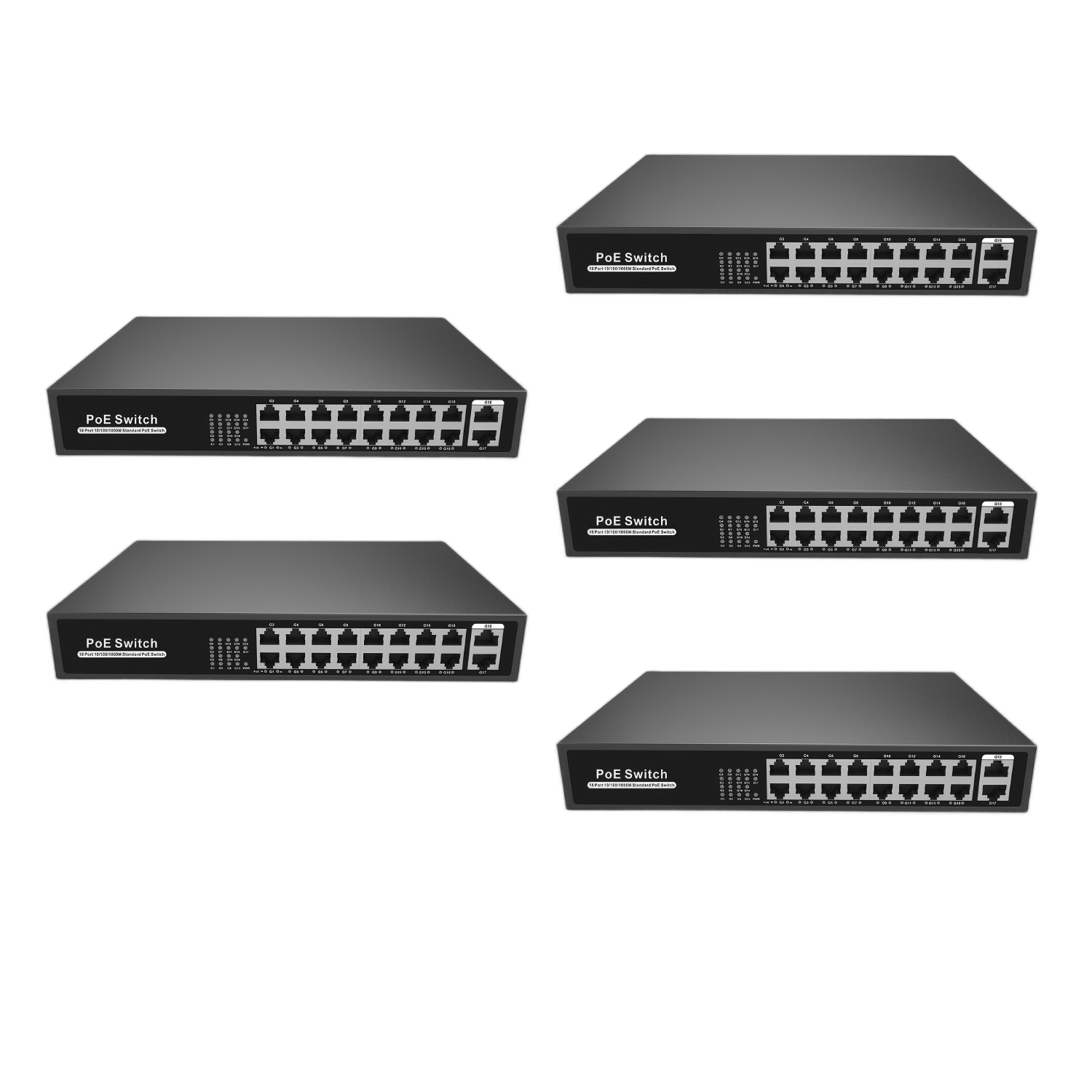

EmpireTech POE16CH-250W Gigabit 18-port PoE switch

$99.99
$99.99
$99.99
  • PoE switch with 18*10/100/1000M RJ45 ports.
  • Port 1-16 can support PoE+ power supply. Built-in power supply.
Number: 1

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech

EmpireTech POE16CH-250W Gigabit 18-port PoE switch

$99.99 $99.99
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech
EmpireTech POE16CH-250W Gigabit 18-port PoE switch - EmpireTech

EmpireTech POE16CH-250W Gigabit 18-port PoE switch

$99.99 $99.99
Number: 1
Product
Overview
Specs
Reviews
FAQ

FEATURE

Gigabit port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Provide Gigabit RJ45 ports and dual RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.


Smart PoE power supply

◇ 16*10/100/1000Base-T PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.


Stable and reliable

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, metal housing, and excellent heat dissipation ensure the stable operation of the switch.

Product Specs
Interface Characteristics
Fixed Port16*10/100/1000Base-T PoE ports (Data/Power)2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet PortPort 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3, 4, 5 UTP (≤100 meters)100BASE-TX: Cat5 or later UTP (≤100 meters)1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network ProtocolIEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding ModeStore and forward (Full wire speed)
Switching Capacity36Gbps (non-blocking)
Forwarding Rate@64byte26.78Mpps
MAC2K
Buffer Memory2M
Jumbo Frame9.2k
LED IndicatorPower: PWR (Green), Network: Link (Green), PoE: PoE (Green)
PoE& Power Supply
PoE PortPort 1-16
Power Supply Pin1/2(+) 3/6(-)
Max Power Per Port30W, PoE+
Total PWR/ Input Voltage250W/ (AC100-240V)
Power ConsumptionStandby<13W, full load<250W
Power SupplyBuilt-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/ Humidity-20~+55°C, 5%~90% RH non condensing
Storage Temp/ Humidity-40~+75°C, 5%~95% RH non condensing
Dimension (L*W*H)270*181*44.5mm
Net /Gross Weight1.6kg/ 2.0kg
InstallationDesktop, 1U/19” cabinet
Certification& Warranty
Lightning ProtectionLightning protection: 4KV 8/20us, Protection level: IP30
CertificationCE, FCC
Warranty1 year, lifelong maintenance.
