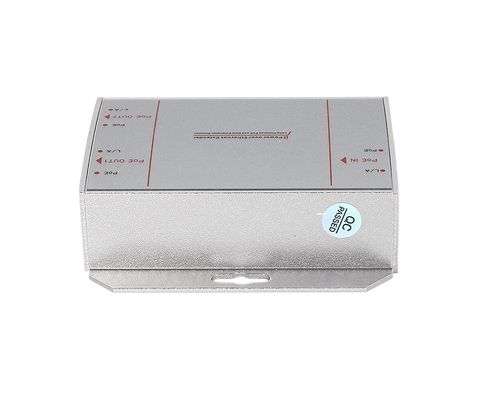

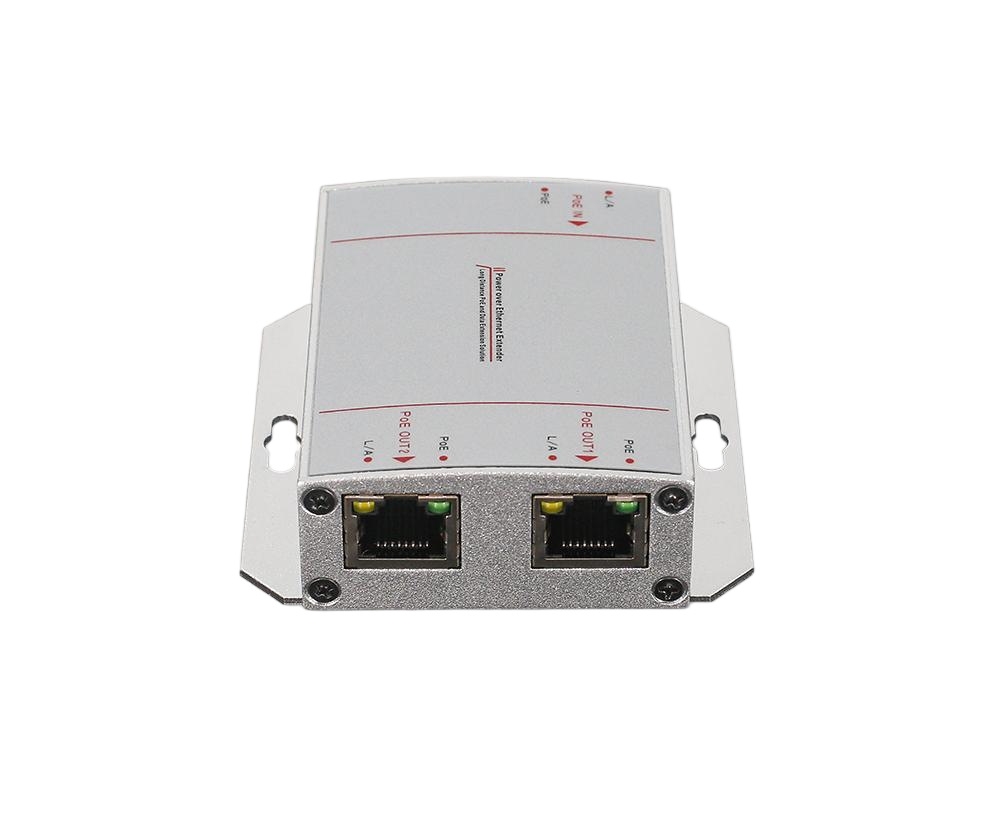

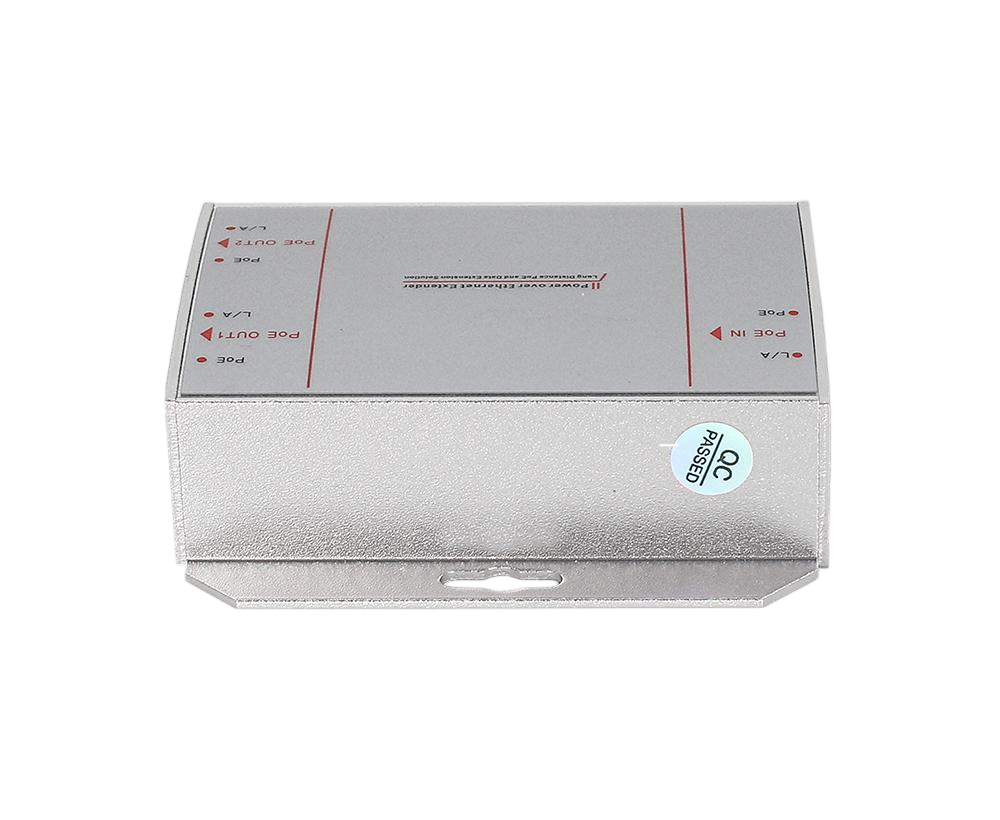

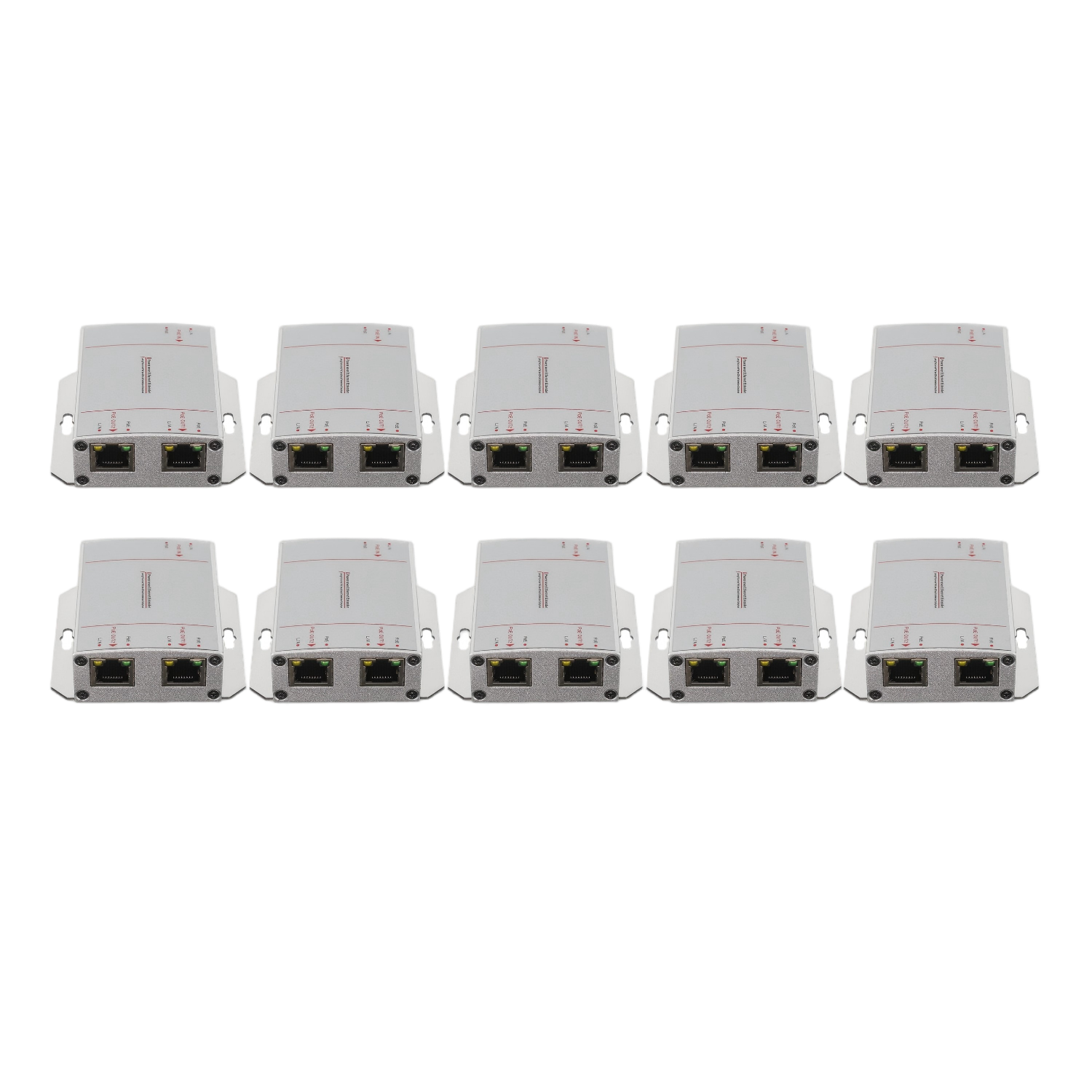

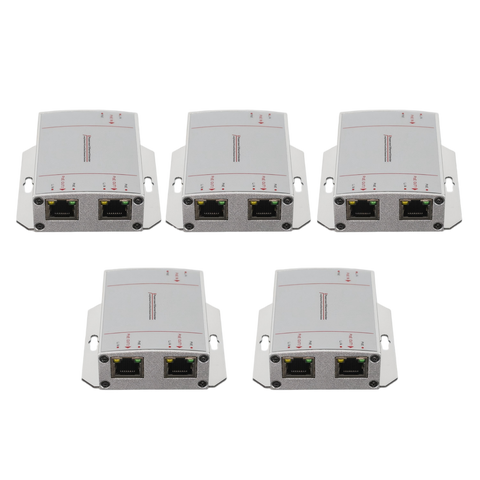

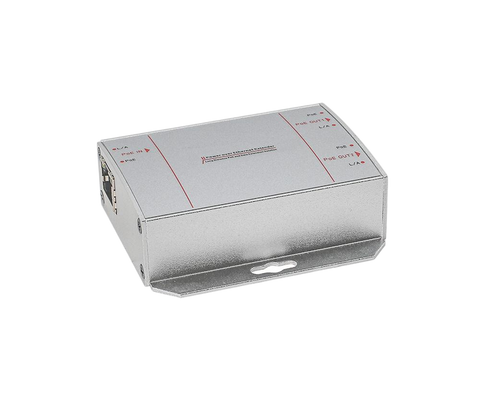

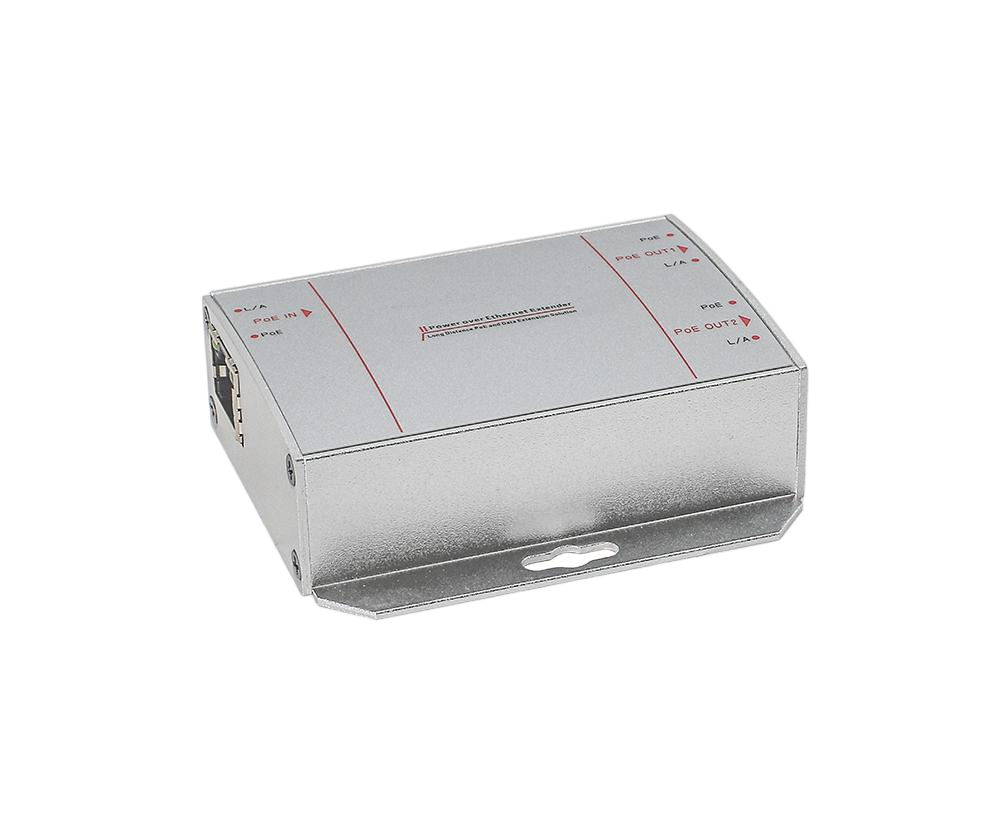

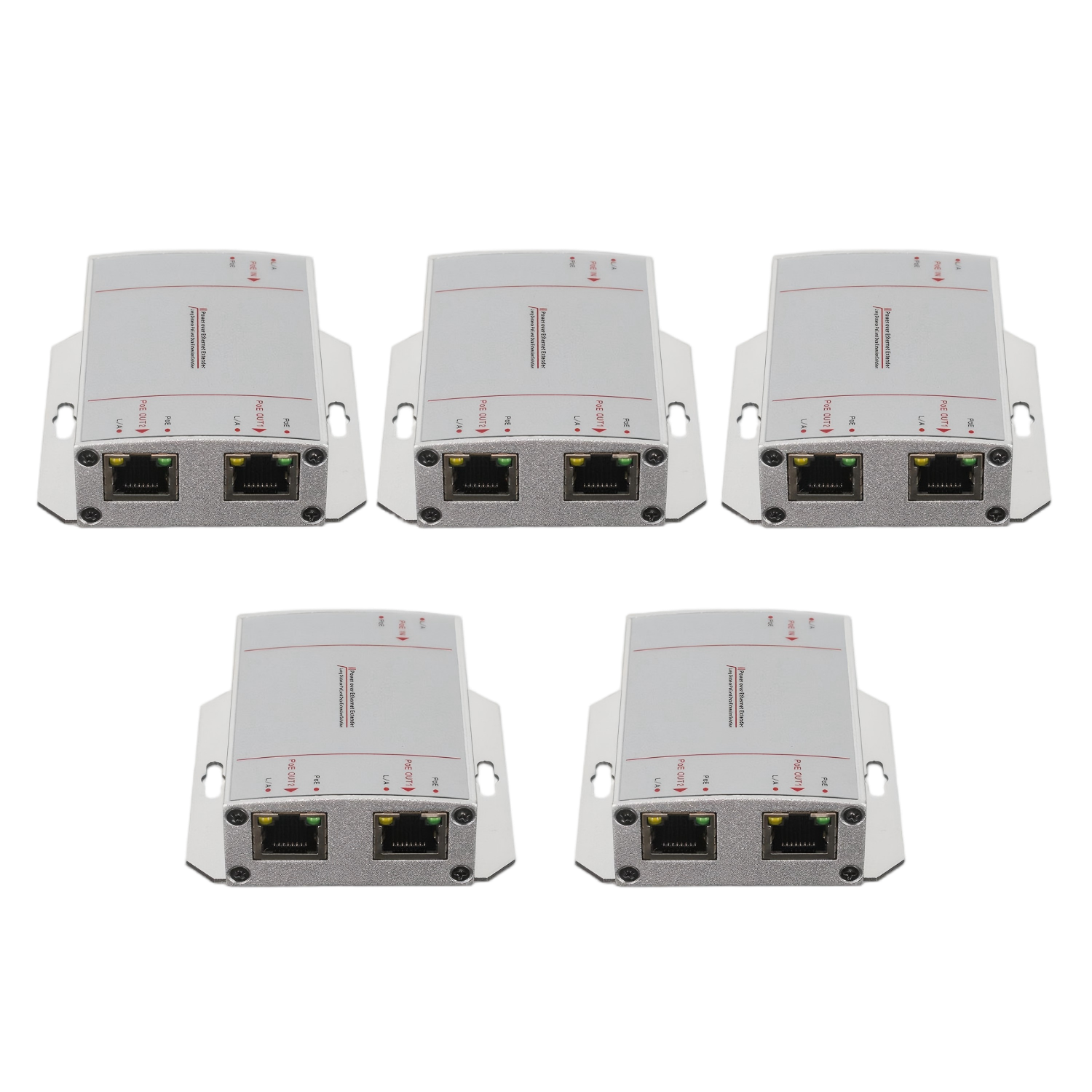

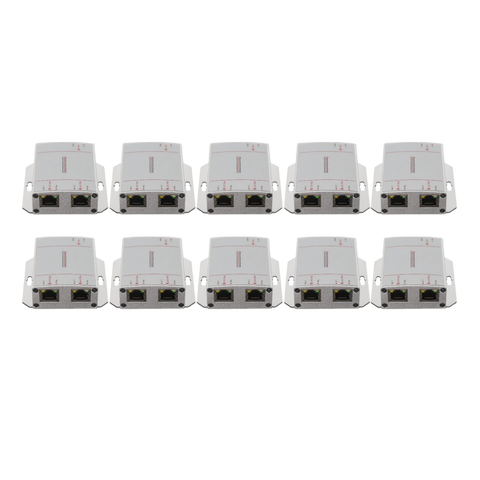

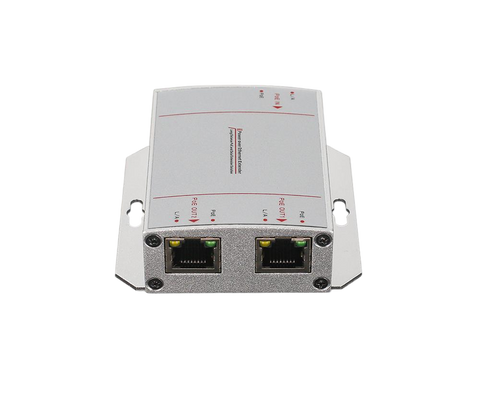

EmpireTech PFT302S Gigabit 3-port PoE Extender

$29.99
$29.99
$29.99
  • PoE Extender with 2*10/100/1000M RJ45 ports and 1*10/100/1000M uplink RJ45 port.
  • The output port supports IEEE802.3af/at PoE standard and the uplink port supports 30W PoE input.
  • Compatible with 1236 and 4578 power supply methods.
Number: 1

🛑 Low stock! Only 5 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech

EmpireTech PFT302S Gigabit 3-port PoE Extender

$29.99 $29.99
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech
EmpireTech PFT302S Gigabit 3-port PoE Extender - EmpireTech

EmpireTech PFT302S Gigabit 3-port PoE Extender

$29.99 $29.99
Number: 1
Product
Overview
Specs
Reviews
FAQ

FEATURE

Gigabit access

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Provides 3*10/100/1000Base-T RJ45 ports. The uplink power port is the power receiving port, flexible networking to meet the power supply and transmission needs of scenarios within 200 meters.


Smart PoE power supply

◇ 2*10/100/1000Base-T RJ45 ports support PoE, meeting the PoE power supply requirements of various scenarios in the security field.

◇ Comply with IEEE802.3af /at PoE standards to automatically identify PoE devices for power supply without damaging non-PoE devices. The max power output using 1*PoE is 25W, and the sum of the max power when using 2*PoE output does not exceed 25W.


Stable and reliable

◇ Plug and play, no configuration, easy to use and maintain.

◇ The user-friendly panel can show the device status through the LED indicators of PWR, Link, and PoE.

◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the PoE extender.

◇ When the repeater is working, no external power supply, and it can easily solve the problem of sufficient bandwidth and power network cable transmission within 200 meters.

Product Specs
Interface Characteristic
Fixed Port2*10/100/1000Base-T PoE ports (Data/ Power)
1*10/100/1000Base-T uplink power receiving port (Data/ Power)
Ethernet PortPort 1-3 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network ProtocolIEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding ModeStore and forward (Full wire speed)
Switching Capacity6Gbps (non-blocking)
Forwarding Rate@64byte4.46Mpps
MAC2K
Buffer Memory2M
Jumbo Frame1536byte
LED IndicatorPower: PWR (Green), Network: Link (Yellow), PoE: PoE (Green)
PoE& Power Supply
PoE Port2 port
Power Pin Assignment1/2(+), 3/6(-), Optional 4/5(+), 7/8(-)
Single-port Max PoE power30W, IEEE802.3af/at
Total PWR/ Input Voltage30W/ (AC100-240V)
Power ConsumptionStandby<4W, full load<30W
Physical Parameter
Operation Temp/ Humidity-20~+55°C, 5%~90% RH non condensing
Storage Temp/ Humidity-40~+80°C, 5%~95% RH non condensing
Dimension (L*W*H)80*76.5*27mm
Net /Gross Weight0.2kg/ 0.3kg
InstallationDesktop, Wall mount
Certification& Warranty
Lightning ProtectionLightning protection: 4KV 8/20us; Protection level: IP30
CertificationCE, FCC
Warranty1 years, lifelong maintenance.
