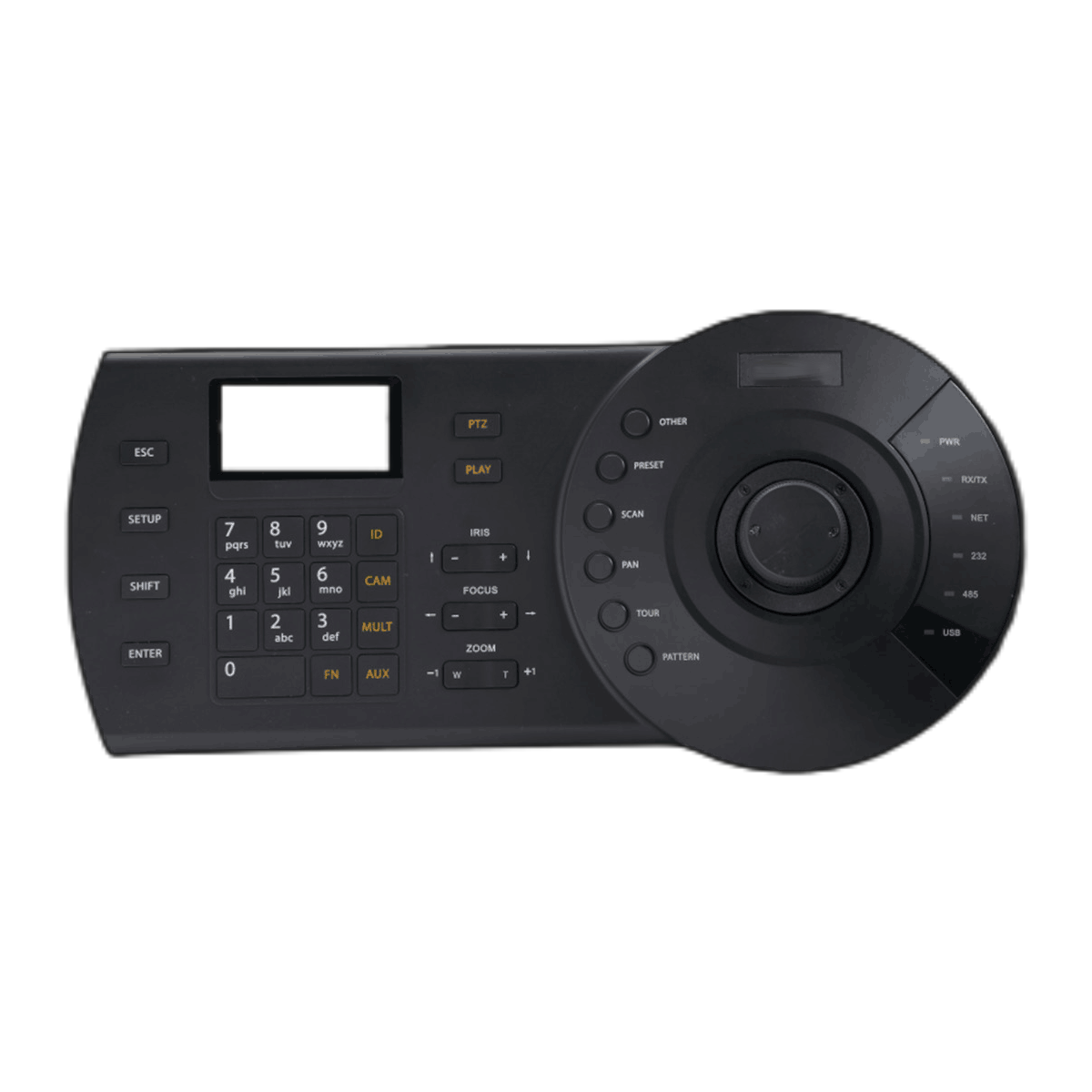

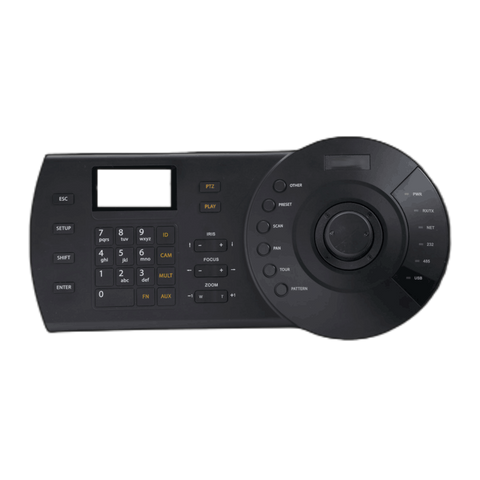

EmpireTech NKB-E1 Network Keyboard to Control, for High Speed Dome, Standalone DVR, Network Video Server Connection, Network Keyboard

$227.99
$239.99
$227.99
Keyboard to Control: High-Speed Dome, Standalone DVR, Network Video Server | Connection: RS485, RS422 (reserved), USB, RS232 & Network | Functions: Three Dimensional Joystick Control of PTZ Functions, Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech NKB-E1 Network Keyboard to Control, for High Speed Dome,Standalone DVR,Network Video Server Connection,Network Keyboard - EmpireTech

EmpireTech NKB-E1 Network Keyboard to Control, for High Speed Dome, Standalone DVR, Network Video Server Connection, Network Keyboard

$239.99 $227.99

EmpireTech NKB-E1 Network Keyboard to Control, for High Speed Dome, Standalone DVR, Network Video Server Connection, Network Keyboard

$239.99 $227.99

Network Keyboard

Keyboard to Control

  • High Speed Dome
  • Standalone DVR
  • Network Video Server

Connection

  • RS485, RS422 (reserved), USB, RS232 & Network

Functions

  • Three Dimensional Joystick Control of PTZ Functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions

Auxiliary Functions

  • On-Screen Menu & User Operation Procedure Tips
  • Connect to SmartPSS or DSS platform via USB
Product Specs
Model
ModelNKB-E1
General
Keyboard Key panelElectromechanical
Joystick3-axis, vector-solving, with twisting, return to-center head
Keyboard ConnectorRJ-45, RS232, RS485, RS422 (reserved), USB
Keyboard CommunicationDirect Mode, Network Mode
Direct ModeInterface:
1 RS232/2 RS485
DVR Protocol: DH-2
Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc
Network ModeInterface: RJ45
DVR/Network Dome: IP Address/Port/Protocol
DisplayLCD, 75.2mm×33.85mm
Maximum Number of Users64 (including "admin")
Max RS485 Addresses (Each User)256
Max Number of PTZ (IPC) That Can be Added over Network (Each User)2048
Environmental
Power SupplyPower adapter, input 100V~240V 50Hz/60Hz, output DC12V/2A
Power Consumption5W
Working Temperature-10℃~+55℃
Working Humidity10% ~ 90%
Atmosphere Pressure86kpa~106kpa
Dimension330mm×139mm×53mm (W×D×H)(height: 103mm including joystick)
Weight1.3kg (Including package)
