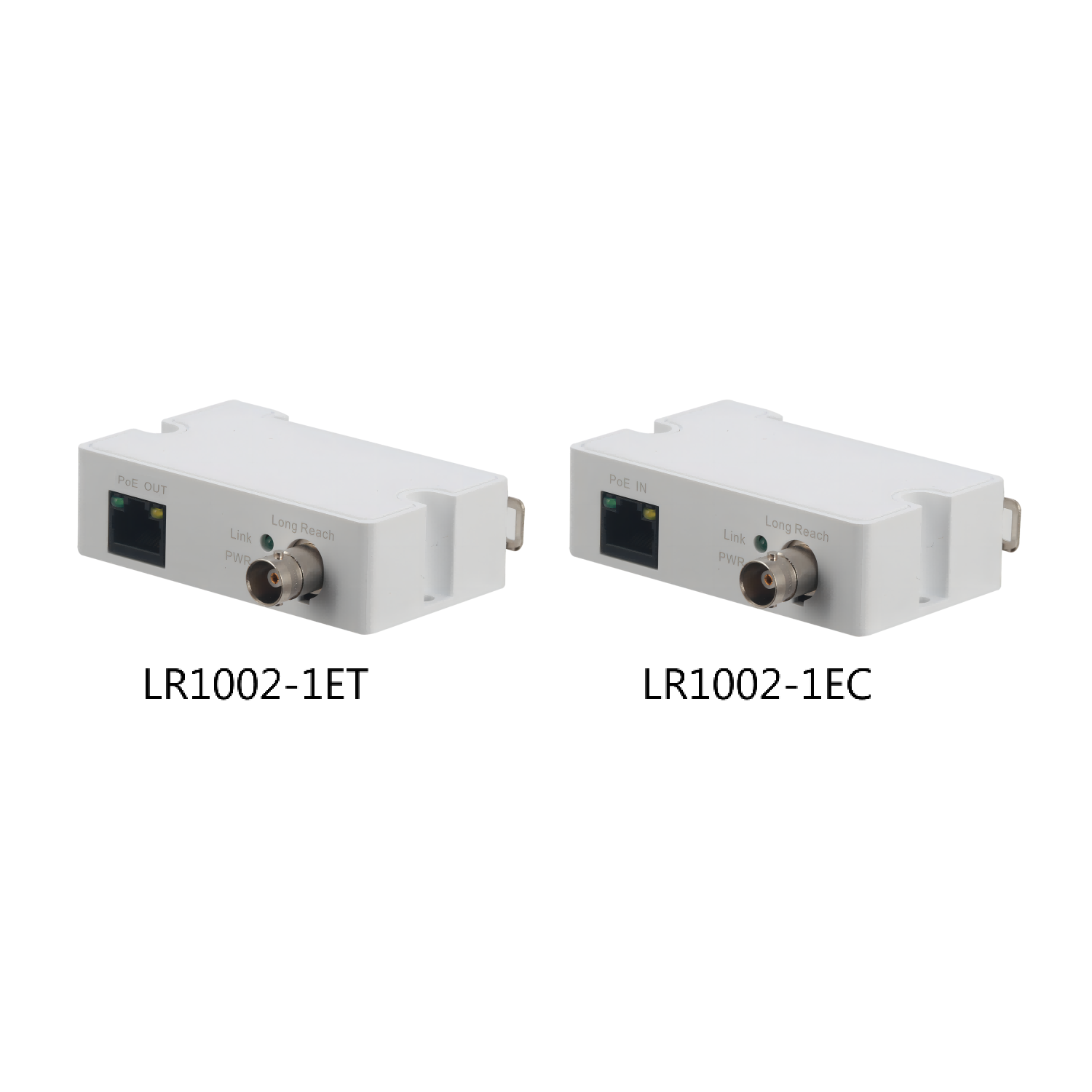

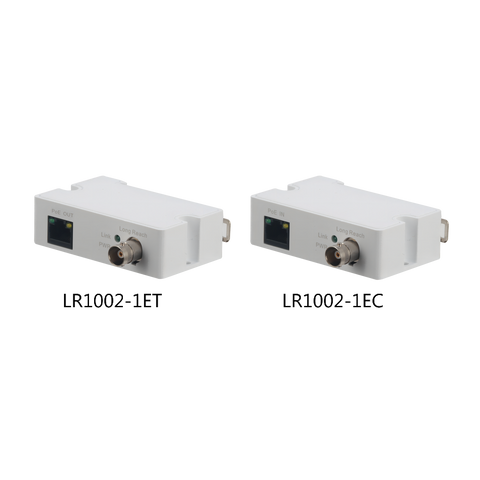

EmpireTech LR1002-1ET + LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender - EmpireTech

EmpireTech LR1002-1ET + LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender

$69.99
$69.99
> Supports IEEE802.3, IEEE802.3u standards.  > Support data line (1, 2, 3, 6) PoE power supply.  > Port: 1*RJ45 10/100Mbps, 1*BNC.  > Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps.  > Supports MDI/MDIX self-adaption.  > Supports long range power supply transmission via coaxial cable.

Please note that:

Due to different credit card companies' terms, they may charge charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech LR1002-1ET + LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender - EmpireTech

EmpireTech LR1002-1ET + LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender

$69.99

EmpireTech LR1002-1ET + LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender

$69.99

Single-Port Long Reach Ethernet over Coax Extender

  • Supports IEEE802.3, IEEE802.3u standards.
  • Support data line (1, 2, 3, 6) PoE power supply.
  • Port: 1*RJ45 10/100Mbps, 1*BNC.
  • Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps.
  • Supports MDI/MDIX self-adaption.
  • Supports long range power supply transmission via coaxial cable.



Hardware
ModelLR1002-1ETLR1002-1EC
Function Port1*10/100 Mbps Base-TX
1*BNC
Power Consumption<2W
Transmission BandwidthRG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps
PoE Protocol48V Passive PoE (Pairs 1, 2+; 3, 6 Return)
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3x
Lightning ProtectionCommon Mode 4KV
Differential Mode 2KV
Operating Temperature–30°C to 65°C (–22°F to 149 °F )
Operating Humidity5%–95%
Weight61 g (0.13 lb)
Dimension (W×D×H)79 mm × 52 mm × 23 mm (3.11'' × 2.05'' × 0.91'')
Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
LR1002-1ET/LR1002-1EC Supports with 48VSupports with 53V
100mBandwidth (Mbps)100100
Load Capacity (W)2125.5
200mBandwidth (Mbps)100100
Load Capacity (W)1524
300mBandwidth (Mbps)100100
Load Capacity (W)1119
400mBandwidth (Mbps)100100
Load Capacity (W)916
500mBandwidth (Mbps)1010
Load Capacity (W)713
800mBandwidth (Mbps)1010
Load Capacity (W)58
1000mBandwidth (Mbps)1010
Load Capacity (W)46
