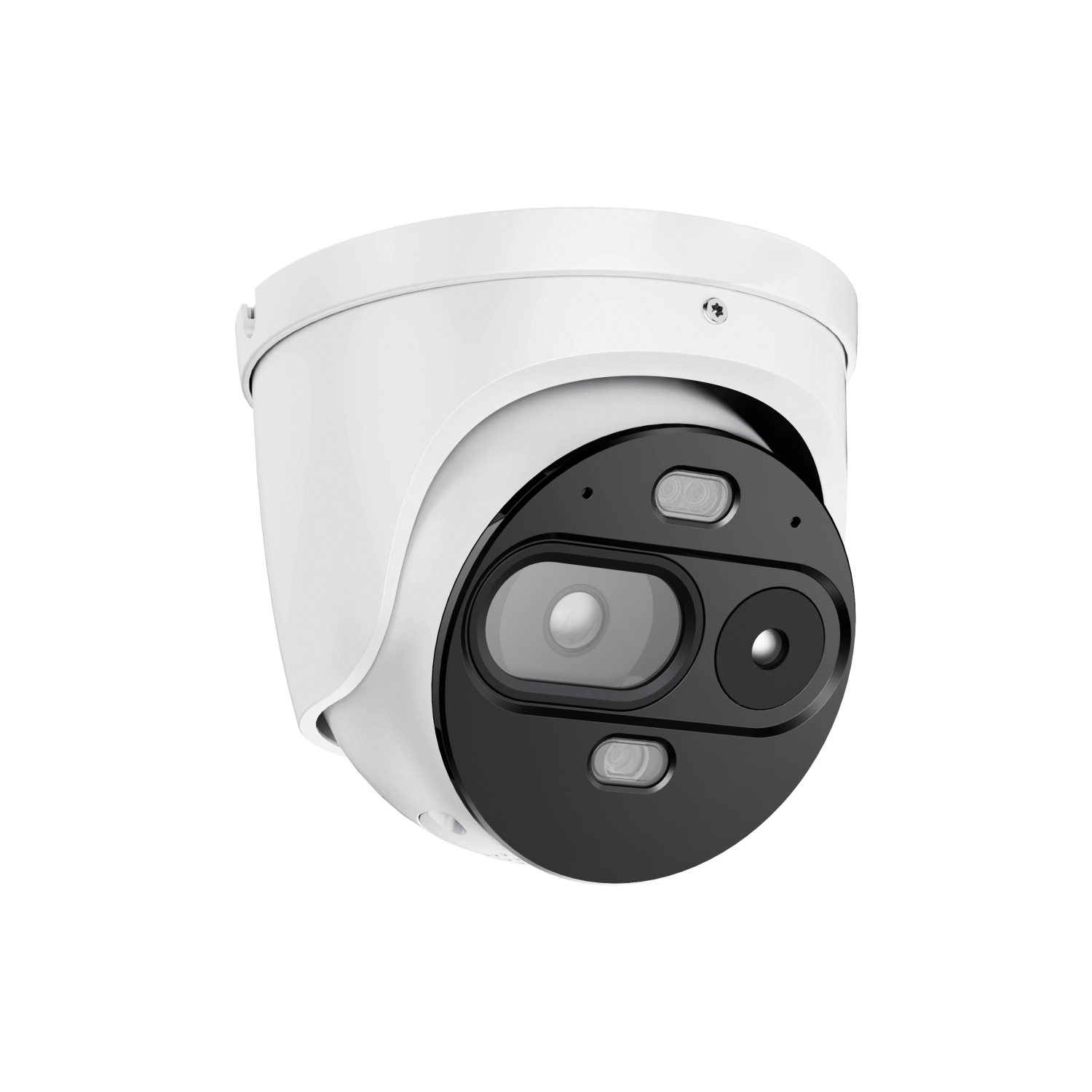

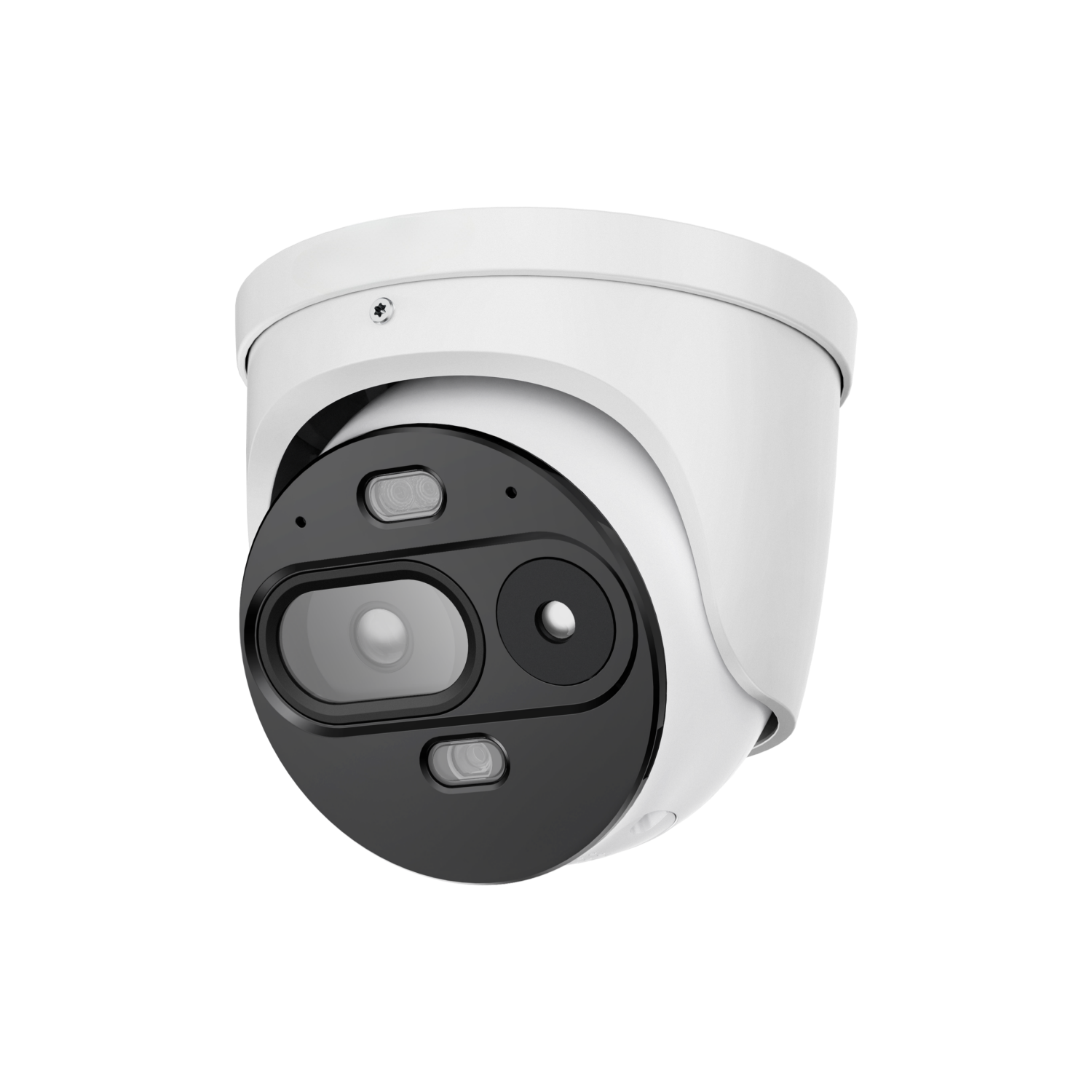

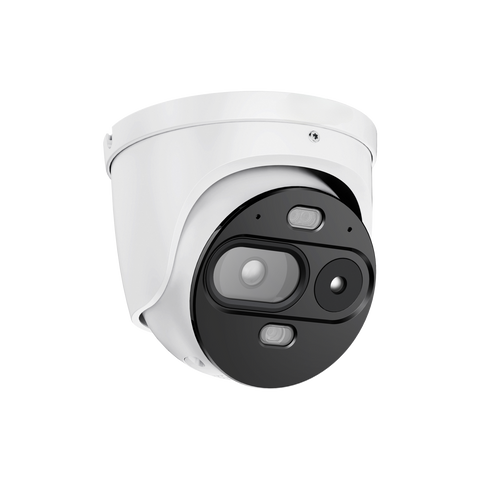

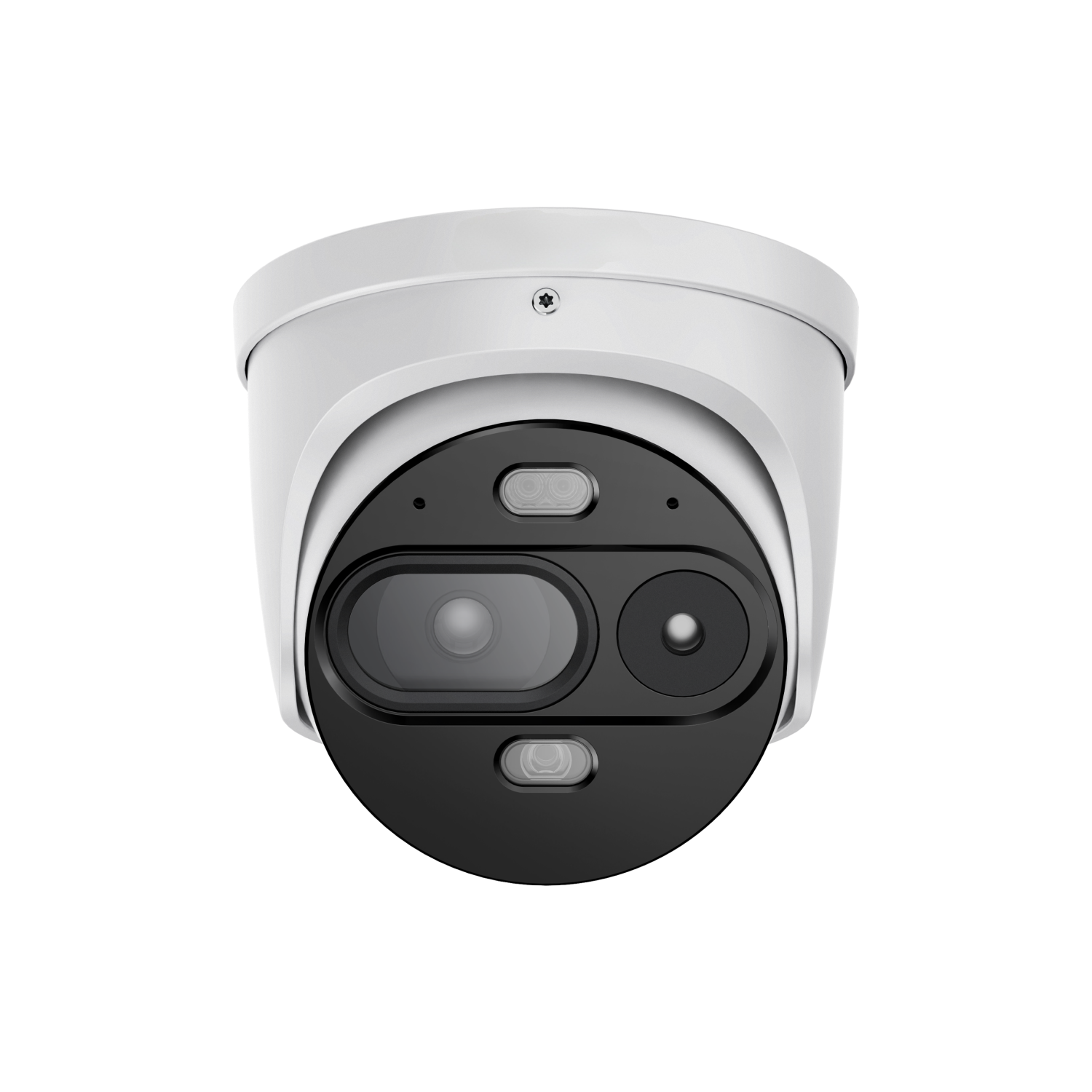

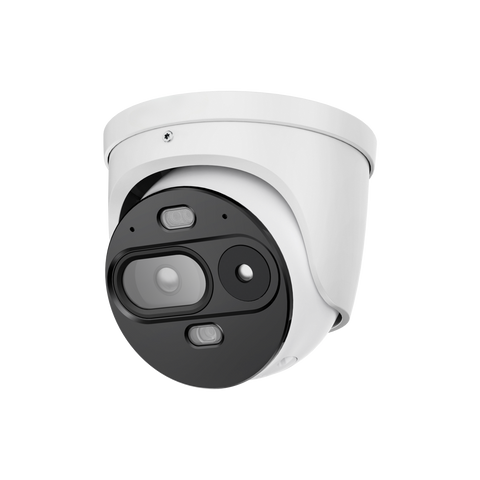

EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera

$549.99
$549.99
$549.99

2.6mm, expedited shipping is not supported.

  • Thermal and Visible Dual Channels for 7×24h Monitoring
  • Support Three-In-One camera
  • Wide Voltage: 12~24VDC
  • Smoking & Call Detection
  • Built-in White Light & Audio Alarm
Lens: 2.6mm (Thermal 2.6mm | Visible 2.8mm)

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera

$549.99 $549.99
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-T-S3 1.8" CMOS 4MP Thermal Network Mini Temperature Measurement Turret Camera

$549.99 $549.99
Lens: 2.6mm (Thermal 2.6mm | Visible 2.8mm)
Product
Overview
Specs
Reviews
FAQ
Product Specs
Technical Specification
Thermal
Detector TypeVanadium oxide uncooled focal plane detector
Max. Resolution256 (H) × 192 (V)
Pixel Pitch12 μm
Spectral Range8 μm–14 μm
Thermal Sensitivity (NETD)≤25 mK@f/1.0
Field of View2.6 mm: H: 66.8°; V: 50.0°3.5 mm: H: 50.6°; V: 37.8°7 mm: H: 24.0°; V: 18.0°
Close Focus Distance2.6 mm: 0.3 m (0.98 ft)3.5 mm: 0.5 m (1.64 ft)7 mm: 1 m (3.28 ft)
ApertureF1.0
Digital DetailEnhancement (DDE)Yes
Digital Zoom16 levels
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
Image Flip0°; 90°; 180°; 270°
Color Palettes18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/
sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Fusion ModeYes (disabled by default)
Visible
Image Sensor1/1.8" CMOS
Max. Resolution2688 (H) × 1520 (V)
Pixel4 MP
Electronic Shutter Speed1/30,000 s–1 s
Min. IlluminationColor: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)
Illumination DistanceIR: 2.6 mm: 30 m (98.43 ft); 3.5 mm: 30 m (98.43 ft);
7 mm: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft)
Illuminator On/Off ControlAuto; Manual
Aperture2.8 mm:F1.65
4 mm: F1.6
6 mm: F1.6
Field of View2.8 mm:H: 112.2°; V: 57.8°
4 mm: H: 88.0°; V: 49.9°
6 mm: H: 59.9°; V: 34.7°
Focus ControlFixed
Close Focus Distance2.8 mm: 0.3 m (0.98 ft)
4 mm: 1 m (3.28 ft)
6 mm: 1.7 m (5.58 ft)
Day/NightAuto (ICR); Color; B/W
BLCYes
WDR120 dB
HLCYes
White BalanceAuto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
S/N Ratio≥55 dB
Region of Interest (RoI)RoI cannot be deleted
Image Flip0°; 90°; 180°; 270°
Temperature Measurement Range
Focal Length (Target Size)   Min. DistanceMax. Distance
 2.6 mm  0.1 m × 0.1 m  1 m (3.28 ft)  4 m (13.12 ft)
 0.2 m × 0.2 m  2 m (6.56 ft)  8 m (26.25 ft)
 1.0 m × 1.0 m  10 m (32.81 ft)  40 m (131.23 ft)
 3.5 mm  0.1 m × 0.1 m  1 m (3.28 ft)  5.8 m (19.03 ft)
 0.2 m × 0.2 m  2 m (6.56 ft)  11.6 m (38.06 ft)
 1.0 m × 1.0 m  10 m (32.81 ft)  58 m (190.29 ft)
 7 mm  0.1 m × 0.1 m  3 m (9.84 ft)  11.7 m (38.39 ft)
 0.2 m × 0.2 m  6 m (19.69 ft)  23.4 m (76.77 ft)
 1.0 m × 1.0 m  30 m (98.43 ft)  117 m (383.86 ft)
DRI Distance
Focal LengthDetection Distance①Recognition Distance②Identification Distance③
2.6 mmVehicle: 333 m (1,092.52 ft);Human: 108 m (354.33 ft)Vehicle: 81 m (265.75 ft);Human: 27 m (88.58 ft)Vehicle: 41 m (134.51 ft);Human: 13 m (42.65 ft)
3.5 mmVehicle: 447 m (1,466.54 ft);Human: 146 m (479.00 ft)Vehicle: 112 m (367.45 ft);Human: 36 m (118.11 ft)Vehicle: 56 m (183.73 ft);Human: 18 m (59.06 ft)
7 mmVehicle: 894 m (2,933.07 ft);Human: 292 m (958.01 ft)Vehicle: 224 m (734.91 ft);Human: 73 m (239.50 ft)Vehicle: 112 m (367.45 ft);Human: 36 m (118.11 ft)
Intelligence
General IntelligenceTripwire, Intrusion with Entry/Exit/Appear for human/vehicle,
10 rules total, up to 5 groups (2 rules per group)
Advanced IntelligenceHeat (fire) Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection
Smoke Detection
Temperature Measurement
Temperature RangeLow Temperature Mode:–20 °C to +150 °C (–4 °F to +302 °F)
High Temperature Mode:100 °C to +650 °C (+212 °F to +1202 °F)
Temperature AccuracyMax (±2°C, ±2%)
Operating Temperature–20 °C to +50 °C (–4 °F to +122 °F)
Temperature ModeSpot: 21Line: 21Area: 21Support 21 rules simultaneously
Video and Audio
Video CompressionH.265; H.264; H.264H; MJPEG
ResolutionThermal: Main stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192; 1280 × 960 (default);
Sub stream: 640 × 480; 256 × 192; 256 × 192 (default)
Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default);
Sub stream: 1280 × 720; 704 × 576; 352 × 288; 352 × 288 (default)
Frame RateThermal (50 Hz):Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default;
Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default;
Thermal (60 Hz):Main stream: 1 fps–30 fps, 25 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default;
Visible (60 Hz):Main stream: 1 fps–30 fps, 25 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default
Audio CompressionG.711a; G.711mu; PCM; AAC
Network
ProtocolHTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE;
IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Edge StorageMicro SD card (256 G)
BrowserIE: IE11 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer)
Chrome: 65 and laterFirefox: 65 and later
User/Host12
SecurityAuthorized username and password; attached MAC address;
HTTPS; IEEE 802.1x; controlled network access
Port
Network1 × RJ-45 (10/100 Base-T)
Audio Input1
Audio Output1
Alarm Input2
Alarm Output2
RS-4851 pair
Local AudioWhite light alarm prompts, red and blue light alarm prompts
Power
Power Supply12 (±20%)–24 VDC; PoE (802.3af)
Power ConsumptionBasic: <5.3 W (12 VDC; illuminator off; speaker off; red and blue light off; power output off);
6.5 W (PoE, without power output function)
Max: <12 W (12 VDC; illuminator on; speaker on; red and blue light on; power output on);
11.5 W (PoE, without power output function)
Power Output12 VDC; ≤0.15 A (supported when the device is powered by DC, not supported when powered by POE)
Environment
Operating Temperature–40 °C to +65 °C (–40 °F to +149 °F)
Storage Temperature–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity≤95%
ProtectionIP67
Anticorrosive CoatingNeutral salt spray test 240 h
Anti-corrosion LevelBasic Protection*The products are designed for general use in areas that
have no specific requirements for anti-corrosion protection.
Structure
Product Dimensions122 mm × 122 mm × 117.4 mm (4.80" × 4.80" × 4.62") (L × W × H)
Packaging Dimensions155 mm × 155 mm × 135 mm (6.1" × 6.1" × 5.31") (L × W × H)
Net Weight≤0.9 kg (1.98 lb)
Gross Weight≤1 kg (2.20 lb)
Heat (Fire) Detection Distance
Focal LengthMax. Distance
2.6 mm30 m (98.43 ft)
3.5 mm45 m (147.64 ft)
7 mm86 m (282.15 ft)
