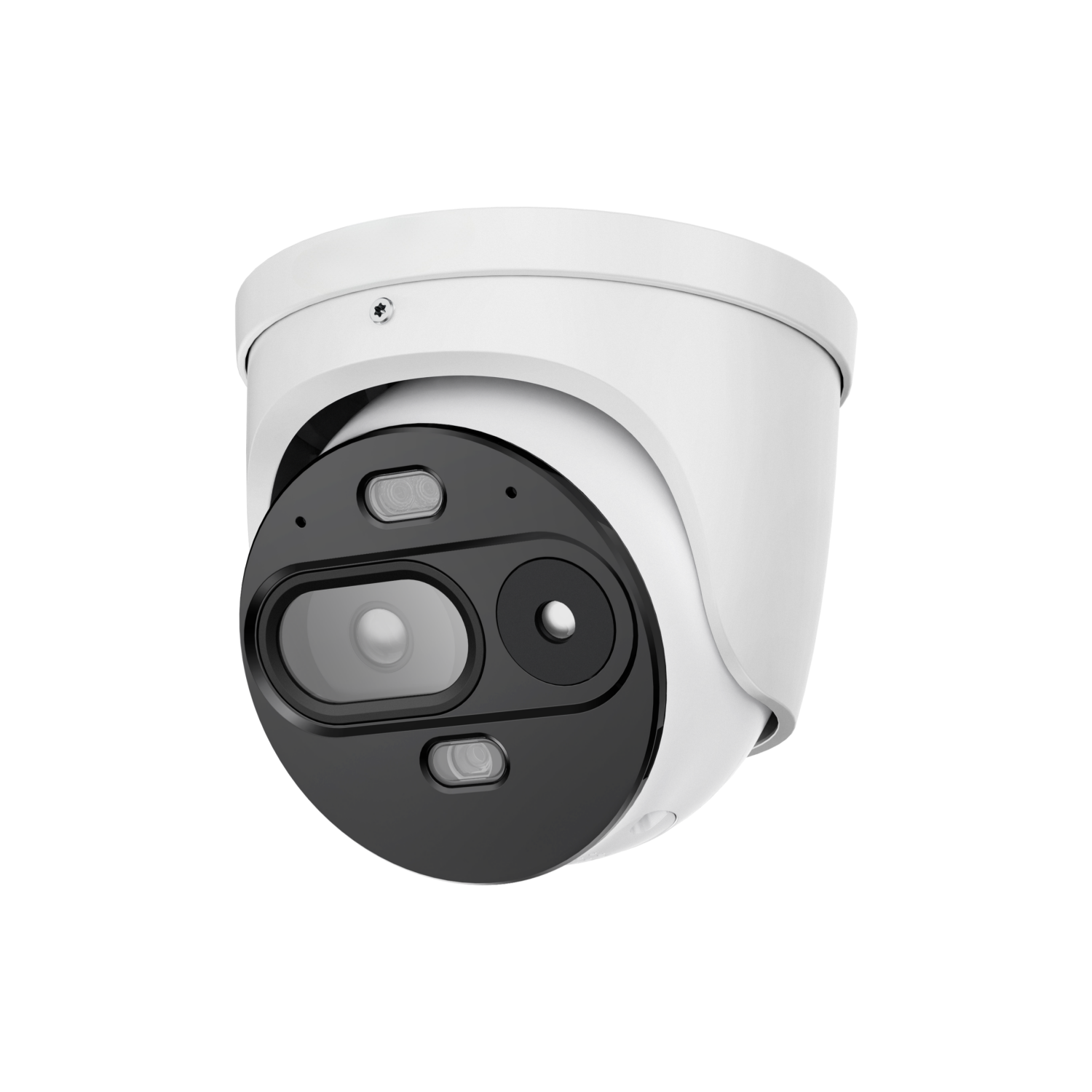

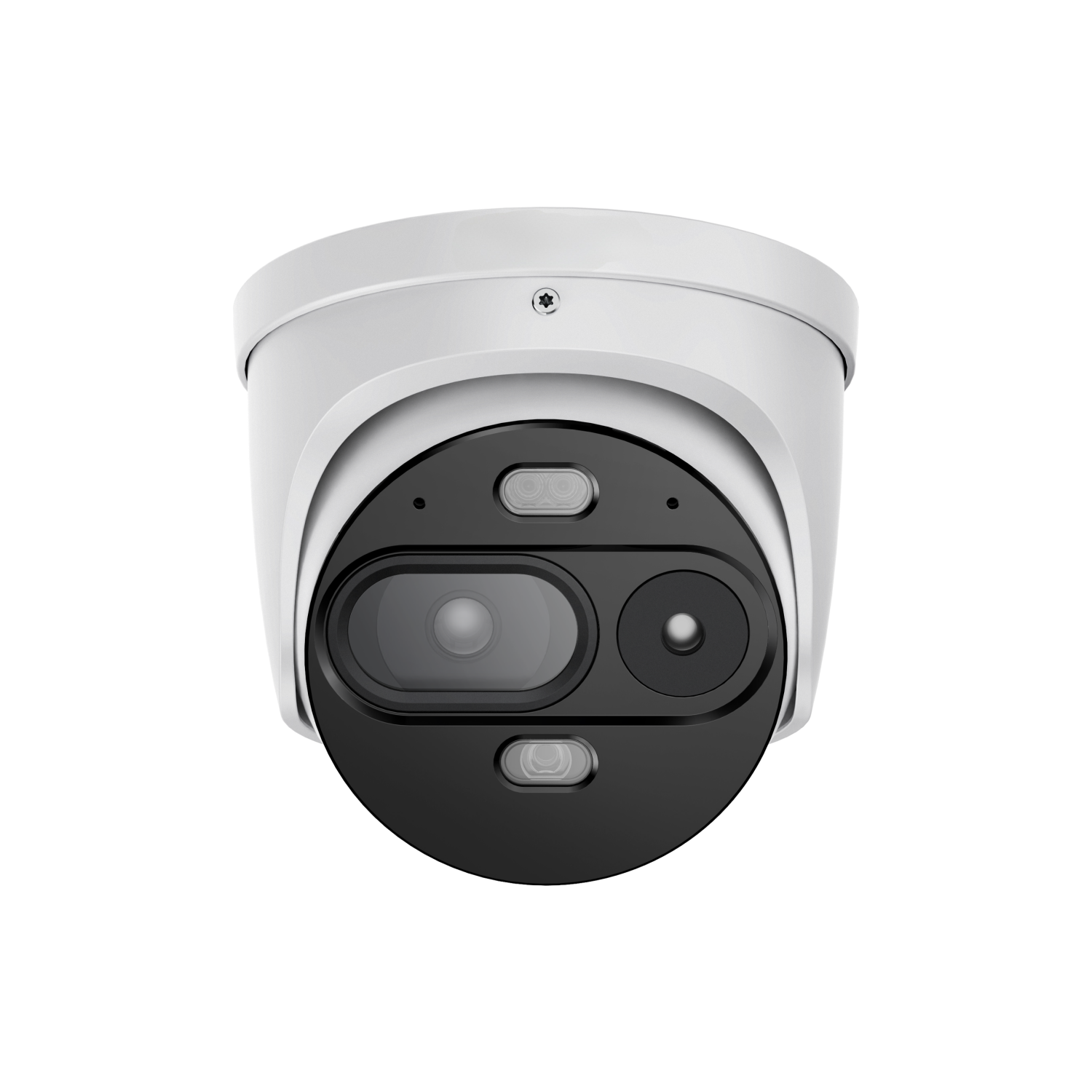

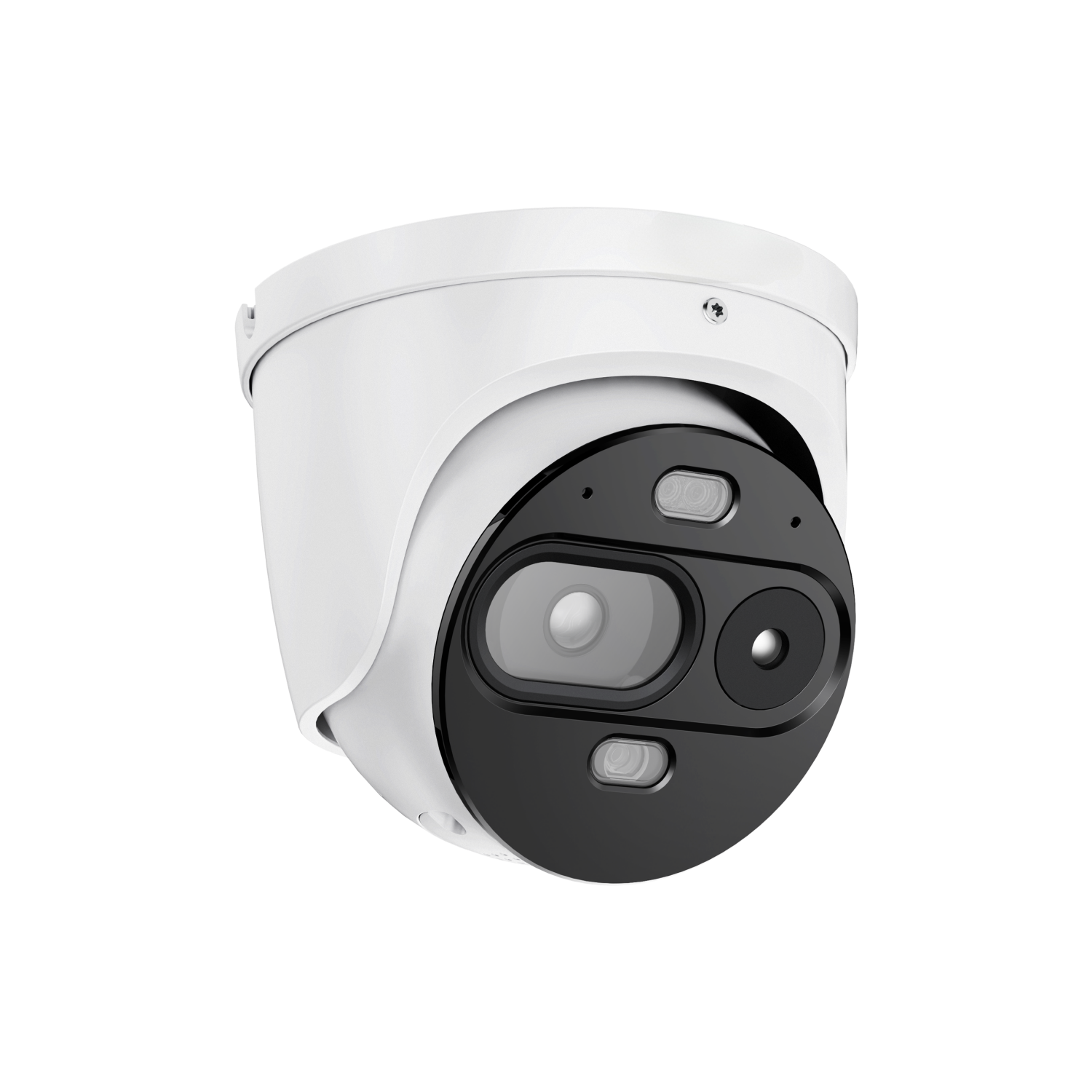

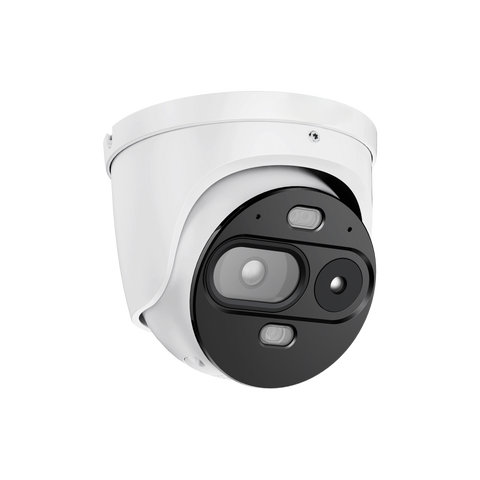

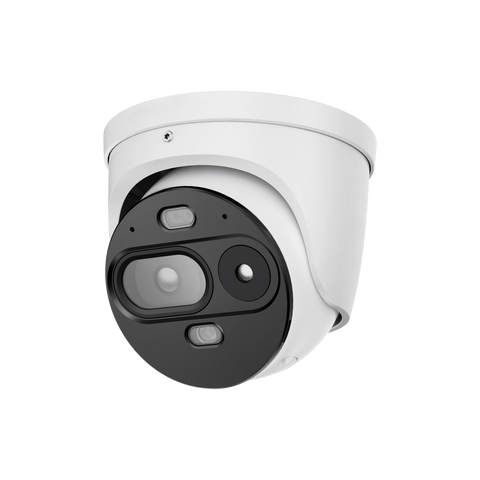

EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera

$499.99
$499.99
$499.99
  • Thermal and Visible Dual Channels for 7×24h Monitoring
  • Support Three-In-One camera
  • Wide Voltage: 12~24VDC
  • Smoking & Call Detection
  • Built-in White Light & Audio Alarm
Lens: 2.6mm (Thermal 2.6mm | Visible 2.8mm)

🛑 Low stock! Only 3 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera

$499.99 $499.99
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech
EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera - EmpireTech

EmpireTech IPC-TPC124X-AI-S3 1/1.8" CMOS 4MP Thermal Network Mini Hybrid Turret Camera

$499.99 $499.99
Lens: 2.6mm (Thermal 2.6mm | Visible 2.8mm)
Product
Overview
Specs
Reviews
FAQ
Product Specs
Technical Specification
Thermal
Detector TypeVanadium oxide uncooled focal plane detector
Max. Resolution256 (H) × 192 (V)
Pixel Pitch12 μm
Spectral Range8 μm–14 μm
Thermal Sensitivity (NETD)≤25 mK@f/1.0
Field of View2.6 mm: H: 66.5°; V: 50°3.5 mm: H: 50.6°; V: 37.8°7 mm: H: 24.0°; V: 18.0°
Close Focus Distance2.6 mm: 0.3 m (0.98 ft)3.5 mm: 0.5 m (1.64 ft)7 mm: 1 m (3.28 ft)
ApertureF1.0
Digital DetailEnhancement (DDE)Yes
Digital Zoom16 levels
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
Image Flip0°; 90°; 180°; 270°
Color Palettes18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/
jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Fusion ModeYes (disabled by default)
Visible
Image Sensor1/1.8" CMOS
Max. Resolution2688 (H) × 1520 (V)
Pixel4 MP
Electronic Shutter Speed1/30,000 s–1 s
Min. IlluminationColor: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)
Illumination DistanceIR: 2.6 mm: 30 m (98.43 ft); 3.5 mm: 30 m (98.43 ft);
7 mm: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft)
Illuminator On/Off ControlAuto; Manual
Aperture2.8 mm:F1.654 mm: F1.66 mm: F1.6
Field of View2.8 mm:H: 112.2°; V: 57.8°
4 mm: H: 88.0°; V: 49.9°
6 mm: H: 59.9°; V: 34.7°
Focus ControlFixed
Close Focus Distance2.8 mm: 0.3 m (0.98 ft)
4 mm: 1 m (3.28 ft)
6 mm: 1.7 m (5.58 ft)
Day/NightAuto (ICR); Color; B/W
BLCYes
WDR120 dB
HLCYes
White BalanceAuto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
S/N Ratio≥55 dB
Region of Interest (RoI)RoI cannot be deleted
Image Flip0°; 90°; 180°; 270°
Perimeter Protection Distance (IVS Distance)
Focal Length     Distance (Human)
                                                General Large-Scale AI Models
2.6 mm26 m (85.30 ft)33.8 m (110.89 ft)
3.5 mm35 m (114.83 ft)45.5 m (149.28 ft)
7 mm70 m (229.66 ft)91 m (298.56 ft)
  Distance (Vehicle)
                                                  General Large-Scale AI Models
2.6 mm78 m (255.91 ft)—
3.5 mm105 m (344.49 ft)—
7 mm210 m (688.98 ft)—
DRI Distance
Focal LengthDetection Distance①Recognition Distance②Identification Distance③
2.6 mmVehicle: 333 m (1,092.52 ft);
Human: 108 m (354.33 ft)		Vehicle: 81 m (265.75 ft);
Human: 27 m (88.58 ft)		Vehicle: 41 m (134.51 ft);
Human: 13 m (42.65 ft)
3.5 mmVehicle: 447 m (1,466.54 ft);
Human: 146 m (479.00 ft)		Vehicle: 112 m (367.45 ft);
Human: 36 m (118.11 ft)		Vehicle: 56 m (183.73 ft);
Human: 18 m (59.06 ft)
7 mmVehicle: 894 m (2,933.07 ft);
Human: 292 m (958.01 ft)		Vehicle: 224 m (734.91 ft);
Human: 73 m (239.50 ft)		Vehicle: 112 m (367.45 ft);
Human: 36 m (118.11 ft)
①Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 1.5 pixels of the image).
②Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 6 pixels of the image).
③Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck,
car (the object must cover more than 12 pixels of the image).
Intelligence
General IntelligenceTripwire, Intrusion with Entry/Exit/Appear for human/vehicle,
10 rules total, up to 5 groups (2 rules per group)
Advanced IntelligenceHeat (fire) Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection
Smoke Detection
Temperature Measurement
Temperature RangeLow temperature mode: –20 °C to +150 °C(–4 °F to+302 °F)
Temperature AccuracyMax (±8°C, ±8%）
Operating Temperature–20 °C to +50 °C (–4 °F to +122 °F)
Video and Audio
Video CompressionH.265; H.264; H.264H; MJPEG
ResolutionThermal: Main stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192; 1280 × 960 (default);
Sub stream: 640 × 480; 256 × 192; 256 × 192 (default)
Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default);
Sub stream: 1280 × 720; 704 × 576; 352 × 288; 352 × 288 (default)
Frame RateThermal (50 Hz):Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default;
Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default;
Thermal (60 Hz):Main stream: 1 fps–30 fps, 25 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default;
Visible (60 Hz):Main stream: 1 fps–30 fps, 25 fps by default; Sub stream: 1 fps–30 fps, 15 fps by default
Audio CompressionG.711a; G.711mu; PCM; AAC
Network
ProtocolHTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE;
IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Edge StorageMicro SD card (256 G)
BrowserIE: IE11 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer)
Chrome: 65 and laterFirefox: 65 and later
User/Host12
SecurityAuthorized username and password; attached MAC address;
HTTPS; IEEE 802.1x; controlled network access
Port
Network1 × RJ-45 (10/100 Base-T)
Audio Input1
Audio Output1
Alarm Input2
Alarm Output2
RS-4851 pair
Local AudioWhite light alarm prompts, red and blue light alarm prompts
Power
Power Supply12 (±20%)–24 VDC; PoE (802.3af)
Power ConsumptionBasic: <5.3 W (12 VDC; illuminator off; speaker off; red and blue light off; power output off);
6.5 W (PoE, without power output function)
Max: <12 W (12 VDC; illuminator on; speaker on; red and blue light on; power output on);
11.5 W (PoE, without power output function)
Power Output12 VDC; ≤0.15 A (supported when the device is powered by DC, not supported when powered by POE)
Environment
Operating Temperature–40 °C to +65 °C (–40 °F to +149 °F)
Storage Temperature–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity≤95%
ProtectionIP67
Anticorrosive CoatingNeutral salt spray test 240 h
Anti-corrosion LevelBasic Protection*The products are designed for general use in areas that
have no specific requirements for anti-corrosion protection.
Structure
Product Dimensions122 mm × 122 mm × 117.4 mm (4.80" × 4.80" × 4.62") (L × W × H)
Packaging Dimensions155 mm × 155 mm × 135 mm (6.1" × 6.1" × 5.31") (L × W × H)
Net Weight≤0.9 kg (1.98 lb)
Gross Weight≤1 kg (2.20 lb)
Heat (Fire) Detection Distance
Focal LengthMax. Distance
2.6 mm30 m (98.43 ft)
3.5 mm45 m (147.64 ft)
7 mm86 m (282.15 ft)
