Installation Type

Optional Accessories（Mount needs to be purchased separately）：

SD Card Slot and Hard Reset Button Do not keep the lower cover open for a long time in a humid environment, in case of water mist risk. SD card slot is available on select models. Disconnect the power from the device before installing the SD card. Press the reset button for 10 seconds to reset the device. Do this when the device is powered on. Motorized vari-focal series is equipped with a motorized vari-focal lens, which needs no manual adjustment; the device with a bidirectional W/T button needs to realize focus and zoom via a bidirectional W/T button. You can connect an analog output port to the TV monitor and check the image via an analog output cable.	Adjust the Lens Angle	Dimensions Product Dimensions: 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")  Net Weight: 0.92 kg (2.03 lb)  Gross Weight: 1.15 kg (2.54 lb)

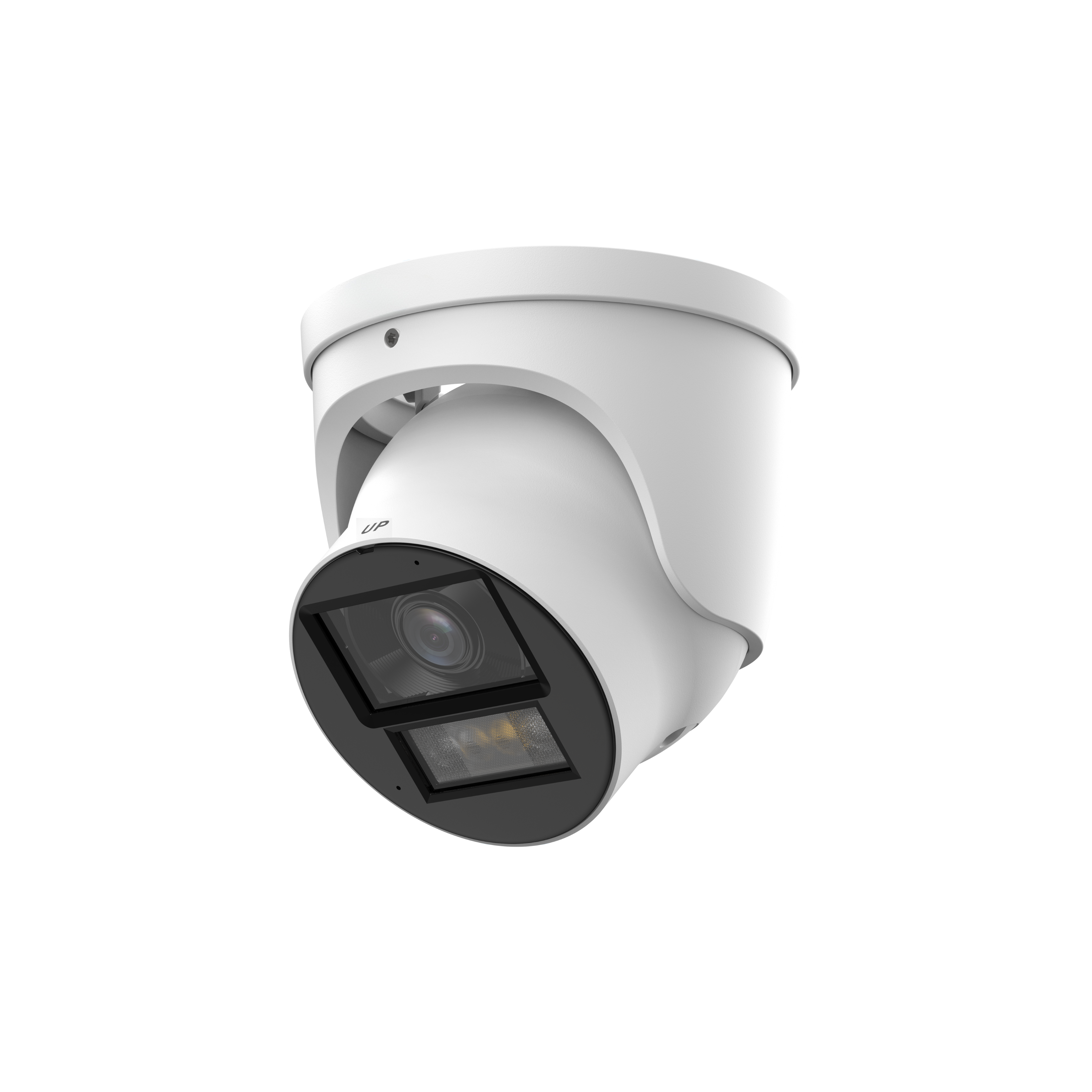

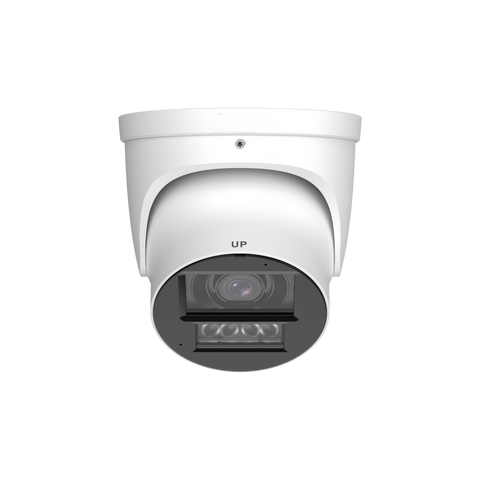

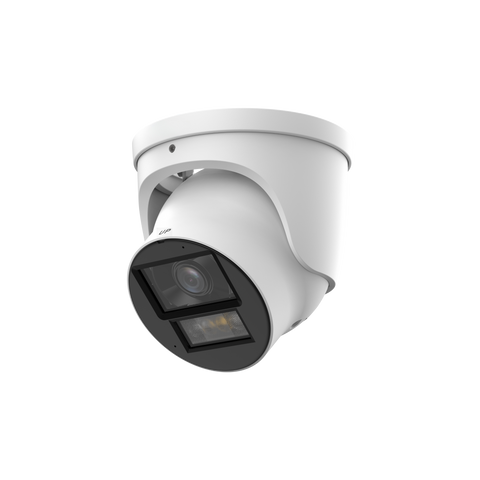

Camera

• Image Sensor: 1/1.8" CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 4 GB
• RAM: 2 GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination
• 0.0004 lux@F1.2 (Color, 30 IRE)
• 0.0003 lux@F1.2 (B/W, 30 IRE)
• 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance:
• Up to 60 m (196.85 ft) (IR)
• Up to 50 m (164.04 ft) (Warm light)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 4 (Multi-core (IR + warm) light)
• Angle Adjustment:
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M16
• Focal Length: 2.8 mm; 3.6 mm
• Max. Aperture: F1.0
• Field of View:
• 2.8mm:
• H: 111°
• V: 60°
• D: 135°
• 3.6mm:
• H: 95°
• V: 51°
• D: 114°
• Iris Control: Fixed
• Close Focus Distance:
• 2.8 mm: 2 m (6.56 ft)
• 3.6 mm: 3.5 m (11.48 ft)
• DORI Distance:
• Lens:
• 2.8 mm:
• Detect: 56.6 m (185.70 ft)
• Observe: 22.6 m (74.75 ft)
• Recognize: 11.3 m (37.07 ft)
• Identify: 5.7 m (18.7 ft)
• 3.6 mm:
• Detect: 69.0 m (226.38 ft)
• Observe: 27.6 m (90.55 ft)
• Recognize: 13.8 m (45.28 ft)
• Identify: 6.9 m (22.64 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters IVS (Perimeter Protection) out false alarms.
• SMD: SMD 4.0
• AcuPick: Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets
• Face Detection: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time settings.
• People Counting: Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
• Heat Map: Yes
• Video Metadata:
• Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
• Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
• Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• AI Coding: AI H.265; AI H.264  *include smart codec technology, Smart H.265+ and Smart H.264+
• Video Frame Rate:
• Main stream: 2688 × 1520@(1–25/30 fps)
• Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
• Third stream: 1920 × 1080@(1–25/30 fps)
• Fourth stream: 1280 × 720@(1–25/30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Streaming Capability: 4 Streams
• Resolution: 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: VBR; CBR
• Video Bit Rate:
• H.264: 3 kbps–16384 kbps;
• H.265: 3 kbps–16384 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Smart Dual Light: Yes
• Defog: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 mosaics or 8 color blocks
• LDC: Yes

Audio

• Built-in MIC: Yes, built-in dual Mic
• Built-in Speaker: Yes, built-in speaker
• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

Network

• Network Port: RJ-45 (10/100 Enhancement Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
• Interoperability: ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 1 TB); NAS
• Browser:
• IE: IE 11 and later;
• Chrome: Chrome 102 and later
• Firefox: Firefox 88 and later
• Management: Software DSS; DMSS; DoLynk Care
• Mobile Client: iOS; Android
• Security: Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS;802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning

Function

• Light Warning:
• Warm light warning
• Flash/Solid on duration: 5 s-30 s
• Light Warning: Flash frequency: high, medium, low
• Sound Warning:
• Offers 11 sound alarms and supports importing 10 custom sound alarms.
• Sound: 0–100.
• Play times can be set from 1 to 10.

Certification

• Certifications:
• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

• RS-485: 1 (baud rate range: 1200 bps–115200 bps)
• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC
• Alarm Output: 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
• Power Output: 12 VDC power output, max. current 165 mA, peak current 700mA

Power

• Power Supply: 12 VDC (±30%); PoE+ (802.3at); ePoE
• Dual Power Backup: When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
• Power Consumption:
• Basic: 4.1 W (12 VDC); 4.8 W (PoE);
• Max.: Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2 W (PoE)
• ePoE: Yes

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95% (RH), non-condensing
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: ≤95% (RH), non-condensing
• Protection: IP67; IK10

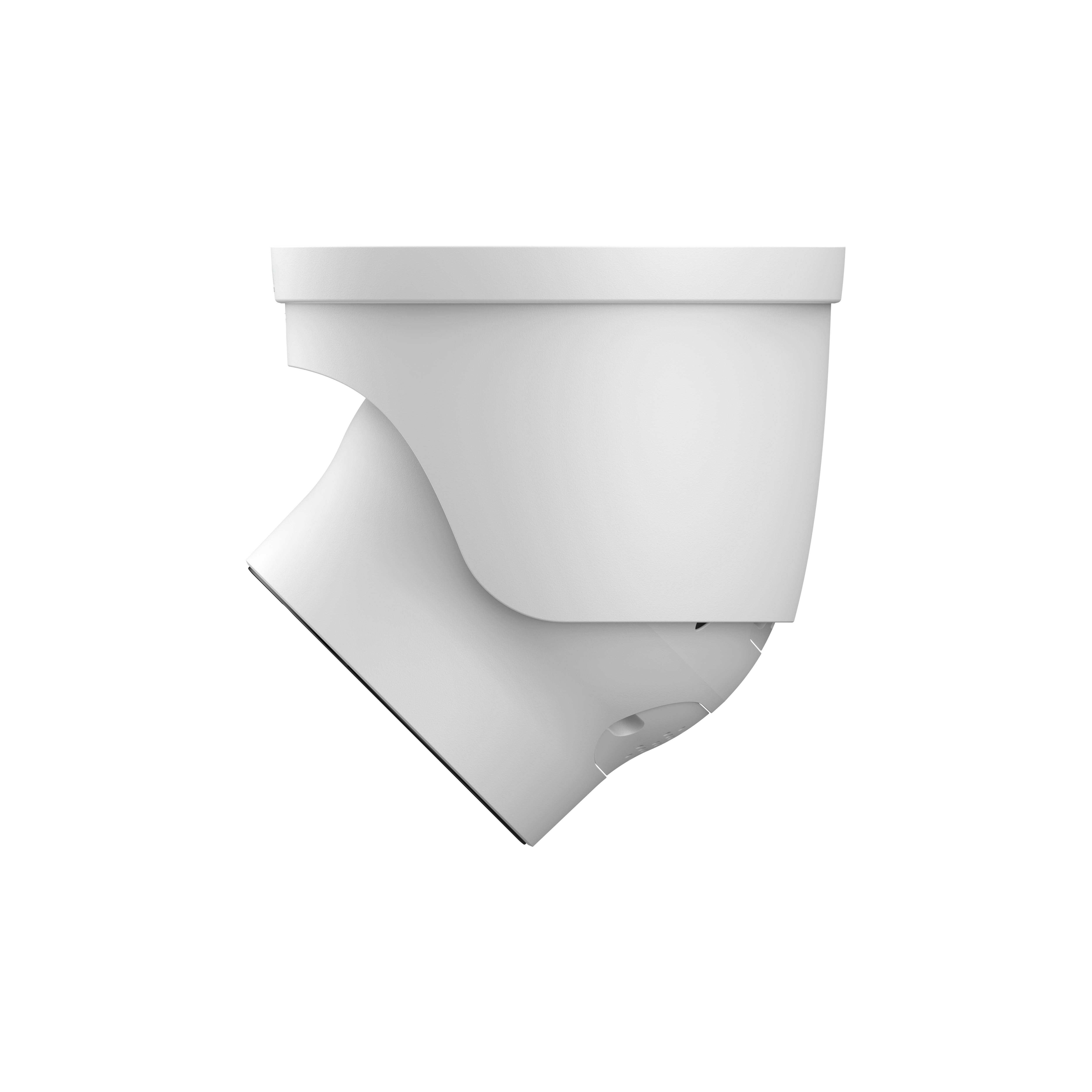

Structure

• Casing Material: Metal
• Product Dimensions: 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
• Net Weight: 0.92 kg (2.03 lb)
• Gross Weight: 1.15 kg (2.54 lb)
