| Camera |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 4320 (H) × 1944 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.4 (Color, 30 IRE)
0.0003 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 355°
Tilt: 0° to 77°
Rotation: 0° to 355° |
| Lens |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: H: 180°; V: 72° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) |
| DORI Distance | |
| Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 50.6 m
( 166.01 ft) | 20.2 m
( 66.27 ft) | 10.1 m
( 33.14 ft) | 5.1 m
( 16.73 ft) |
|
| Intelligence |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human),
stay detection, loitering detection |
| Smart Motion Detection | Smart Motion Detection 4.0 |
| Smart Pick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people,
animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure;
face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority
and optimization snapshot); face angle filter; optimization duration setting. |
| Smart Search | Works together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | AI H.264; AI H.265
*Includes smart codec technology, Smart H.264+ and Smart H.265+. |
| Video Frame Rate | Main stream: 4320 × 1944@(1–20 fps)
Sub stream: 1200 × 536@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
*The values above are the max frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 8M (4320 × 1944/4096 × 1860); 1920 × 860; 1200 × 536; 960 × 432; D1 (704 × 576/704 × 480) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 6 kbps–16384 kbps;
H.265: 6 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Privacy Masking | 8 areas |
| Audio |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in dual speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection;
video tampering; tripwire; intrusion; loitering detection; stay detection; face detection (full image);
scene changing; audio detection; voltage detection; defocus detection; SMD; security exception |
| Network |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max 512 GB); NAS |
| Browser | IE
Chrome
Firefox |
| |
| Mobile Client | iOS;
Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;
syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function |

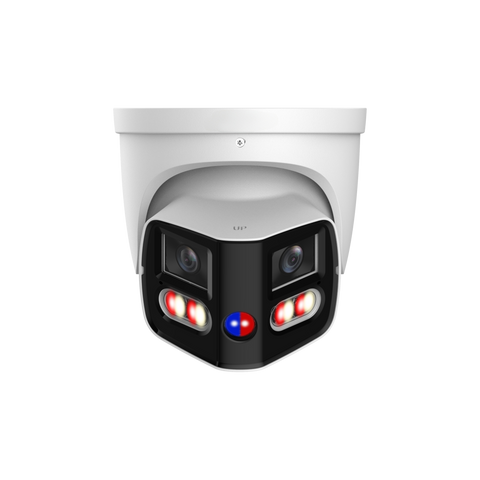

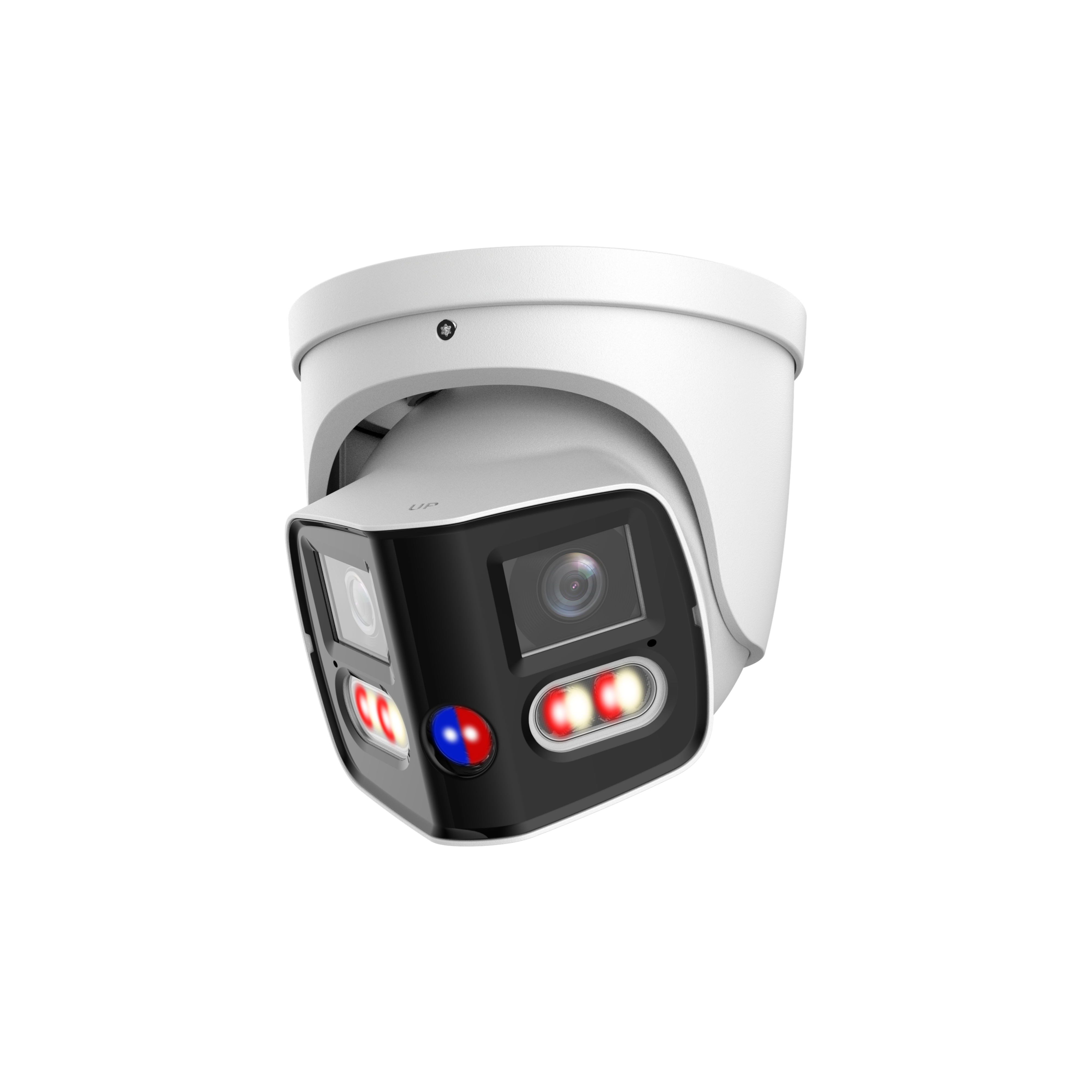

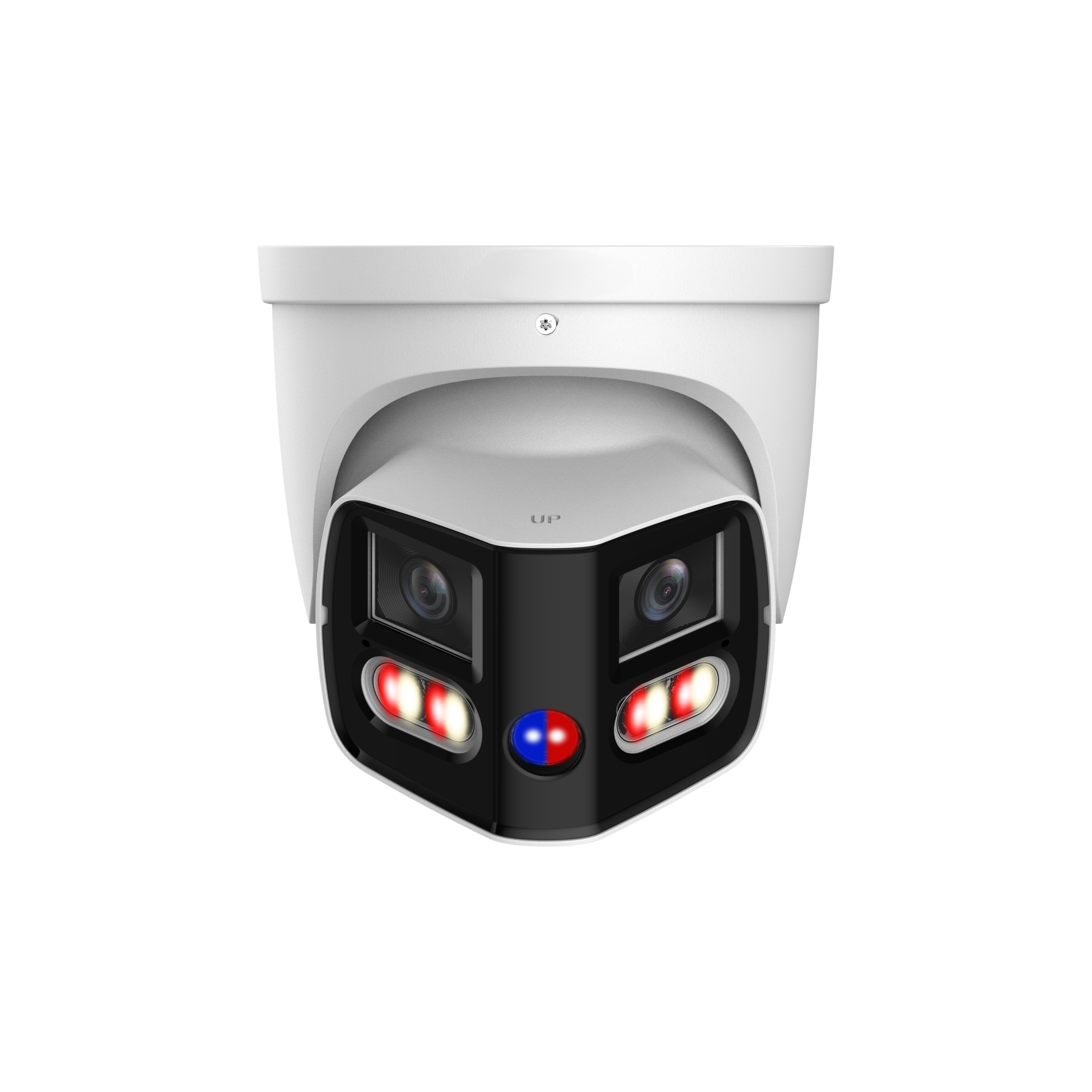

| Light Warning | Light Warning: Red and blue light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low |
| Sound Warning | Sound Warning:
Offers 11 sound alarms and supports importing custom sound alarms
Sound: 0-100
Play times can be set from 1 to 10 |
| Certification |
| Certifications | CE |
| Port |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them.
The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1 W (12 VDC); 5.6 W (PoE);
Max.: 12.2 W (12 VDC); 14.8 W (PoE) (H.265 + WDR + warm light + sound and light active deterrence + intelligence on) |
| Environment |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection*The products are designed for general use and are applicable even in areas
with no specific requirements for anti-corrosion protection. |
| Structure |
| Casing Material | Metal |
| Product Dimensions | 135.2 mm × Φ122.0 mm (5.32" × Φ4.80") |
| Net Weight | 0.99 kg (2.18 lb) |
| Gross Weight | 1.15 kg (2.54 lb) |
