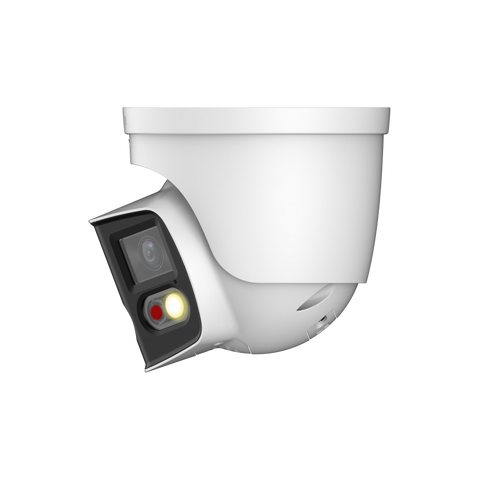

EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech

EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk

$227.49
$239.49
$227.49
  • Outputs 180° wide angle splicing image. · Outputs max. 8 MP (4096 × 1860)@20 fps.
  • Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD 4.0.
  • One-tap arming/disarming through alarm input.

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech

EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk

$239.49 $227.49
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech
EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk - EmpireTech

EmpireTech IPC-PDW3849-A180-AS-PV 2x4MP TiOC EPTZ Duo Splicing Fixed-focal Turret Camera, support two-way talk

$239.49 $227.49
Product
Overview
Specs
Reviews
FAQ
  • Outputs 180° wide angle splicing image. · Outputs max. 8 MP (4096 × 1860)@20 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD 4.0.
  • One-tap arming/disarming through alarm input.

Installation Type

IPC-Color4K-T180 Installation Type

Junction Mount methods: PFA137

Ceiling Mount methods: PFB200C + PFA109

Wall Mount methods: PFB2203W

Pole Mount methods: PFA152-E+ PFB2203W

Optional Accessories（Mount needs to be purchased separately）：




PFA152-E Pole Mount Bracket



IPC-Color4K-T180_Dimensions IPC-Color4K-T180_Hard_reset_and_SD_card_slot

Product Dimensions: Φ122 mm × 131.9 mm (Φ4.80" × 5.19" )

Net Weight: 990 g (2.18 lb)

Gross Weight: 1150 g (2.54 lb)
  • Long press the reset button (more than 10s) to reset the device.
  • Please do this when camera is powered on.









Product Specs
Camera
Image SensorDual 1/2.7" CMOS
Max. Resolution4096 (H) × 1860 (V)
ROM128 MB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination DistanceUp to 25 m (82.02 ft) (IR LED)
Up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off ControlAuto; Manual
Illuminator Number2 (IR LED); 2 (Warm light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–77°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm
Field of ViewHorizontal: 180°; Vertical: 86°
Max. ApertureF1.4
Iris ControlFixed
Close Focus Distance0.8 m (2.62 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm50.6 m (166.01 ft)20.2 m(66.27 ft)10.1 m(33.14 ft)5.1 m(16.73 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video
to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection
SMDSMD 4.0
Quick PickWith AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
EPTZEnlarge and track the targets of intelligent alarms
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI CodingAI H.265; AI H.264*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame RateMain stream: 4096 × 1860@(1–20 fps )
Sub stream: 1200 × 530@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability3 streams
Resolution8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 6 kbps –16384 kbps
H.265: 6 kbps –16384 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Privacy Masking4 areas
DefogYes
Audio
Built-in MICYes, built-in dual Mic
Built-in speakerYes, built-in speaker
Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; stay detection; loitering detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
SecurityDigest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS;
802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast;
ICMP; IGMP; NFS; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI
User/Host20 (Total bandwidth: 64 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 8 and later
Chrome
Firefox
Management SoftwareSmart PSS Lite; DSS; DMSS
Mobile ClientiOS; Android
Certification
CertificationsCE, FCC
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply12 VDC (±30%); PoE (802.3af)
Power ConsumptionBasic: 3.95 W (12 VDC); 4.95 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
ProtectionIP67
Structure
CasingMetal
Product DimensionsΦ122 mm × 135.2 mm (Φ4.80" × 5.32" )
Net Weight990 g (2.18 lb)
Gross Weight1150 g (2.54 lb)
