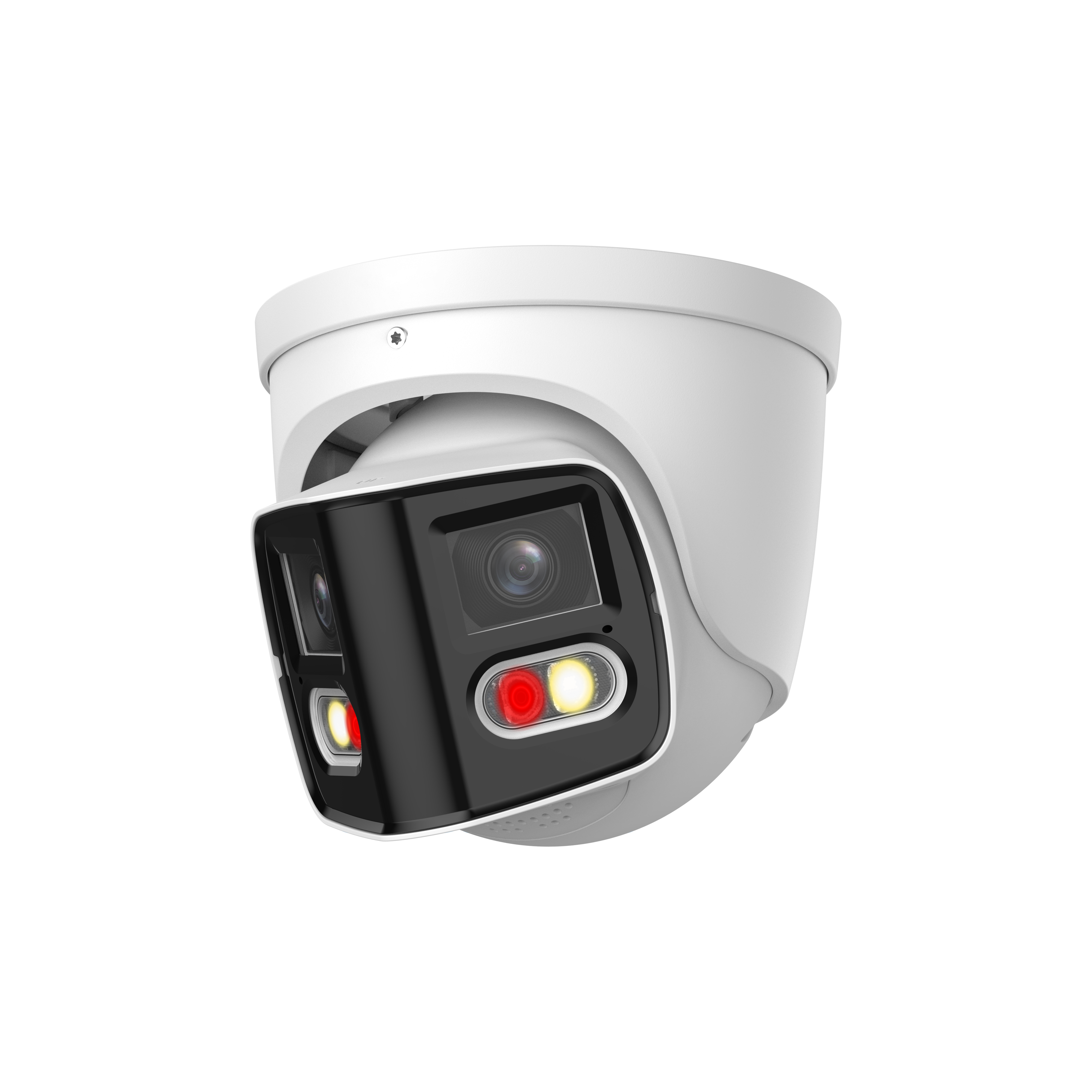

EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera

$199.99
$199.99
$199.99
  • High-Quality Imaging with 8 MP Resolution
  • 180° Splicing Image by Pixel-level Splicing Fusion
  • Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
  • Instant Sound and Light Alerts Deter Intruders & Reduce Incidents
  • Electronic Enlarge and Track the Targets of Intelligent Alarms
  • Enhanced Deep Learning-Based Human and Vehicle Classification
  • Built-in Dual Mic & Speaker: Secure Real-Time Talk
  • IP67 for Protection Against Harsh Environments
Lens: 2.8mm

🛑 Low stock! Only 2 left!

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera - EmpireTech

EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera

$199.99 $199.99
EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera - EmpireTech
EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera - EmpireTech

EmpireTech IPC-PDW2849-A180-S-PV 2x 1/2.7" CMOS 2x4MP Duo Splicing Fixed-focal Turret Camera

$199.99 $199.99
Lens: 2.8mm
Product
Overview
Specs
Reviews
FAQ
Product Specs
Camera
Image Sensor1/2.7" CMOS (×2)
Max. Resolution4096 (H) × 1860 (V)
ROM128 MB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance2.8 mm: Up to 25 m (82.02 ft) (IR)
Up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off ControlAuto;Manual
Illuminator Number2 (IR LED); 2 (Warm light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–77°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm
Max. ApertureF1.4
Field of View2.8 mm: H: 180°; V: 86°
Iris ControlFixed
Close Focus Distance2.8 mm: 0.8 m (2.62 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm50.6 m
( 166.01 ft)		20.2 m
( 66.27 ft)		10.1 m
( 33.14 ft)		5.1 m

( 16.73 ft)
Intelligence
EPTZEnlarge and track the targets of intelligent alarms
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMDSMD 3.0
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateMain stream: 4096 × 1860@(1–20 fps)
Sub stream: 1200 × 536@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity.
Streaming Capability3 streams
Resolution8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368);
1200 × 536; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)
Bit Rate ControlVBR;CBR
Video Bit RateH.264: 6 kbps–16384 kbps;
H.265: 6 kbps–16384 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Smart Dual LightYes
DefogYes
Privacy Masking4 areas
Audio
Built-in MICYes, built-in dual Mic
Built-in SpeakerYes, built-in speaker;
Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory
Audio CompressionG.711a; G.711Mu; G.726; PCM
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection;
video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host20 (Total bandwidth: 64 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 8 and later;
Chrome;
Firefox
Management SoftwareSmartPSS Lite; DSS; DMSS; DoLynk Care
Mobile ClientiOS;Android
SecurityDigest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;
syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Function
Light WarningWarm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound WarningOffers 11 sound alarms and supports importing 10 custom sound alarms
Sound: 0–100Play times can be set from 1 to 10
Certification
CertificationsCE
Power
Power Supply12 VDC (±30%); PoE (802.3af)
Power ConsumptionBasic: 4.5 W (12 VDC); 5.3 W (PoE);
Max.: 9.7 W (12 VDC); 11.2 W (PoE) (H.265 + WDR + light on + intelligence on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤ 95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity≤ 95% (RH), non-condensing
ProtectionIP67
Anti-corrosion LevelBasic Protection*The products are designed for general use and are applicable even in areas
with no specific requirements for anti-corrosion protection.
Structure
Casing MaterialMetal
Product Dimensions135.2 mm × Φ122.0 mm (5.32" × Φ4.80")
Net Weight0.95 kg (2.09 lb)
Gross Weight1.11 kg (2.45 lb)
