EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera

$75.99
$79.99
$75.99
4MP 1/2.9" CMOS | Support Triple Stream | Built-in IR LED, the max. illumination distance is 30 m | Intelligent monitoring: Intrusion, tripwire | Supports max. 256 G Micro SD card; built-in MIC | IP67, IK10 protection | SMD Plus.
Lens: 2.8mm
Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera - EmpireTech

EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera

$79.99 $75.99
EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera - EmpireTech
EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera - EmpireTech

EmpireTech IPC-D24IR-S 1/2.9" CMOS 4MP IR Fixed-focal Dome Network Camera

$79.99 $75.99
Lens: 2.8mm
Product
Overview
Specs
Reviews
FAQ

4MP IR Fixed-focal Dome Network Camera

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. illumination distance is 30 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
  • Supports max. 256 G Micro SD card; built in MIC.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67, IK10 protection.
  • SMD Plus.


Installation Type

IPC-D24IR-S Installation Types

Junction Mount: PFA136

Ceiling Mount: PFA109 + PFB220C

Wall Mount: PFB203W

Pole Mount (Vertical): PFA152-E + PFB203W

Pole Mount (Horizontal): PFA150 + PFB203W

Corner Mount: PFA109 + PDB305W + PFA151

Optional Accessories（Mount needs to be purchased separately）：

PFA136 Junction Box PFA109 mount adapter PFB203W wall mount PFB305W wall mount
PFA150 pole mount bracket PFA152-E PFA151 corner mount bracket PFB220C Ceiling Mount Bracket




IPC-D24IR-S Dimensions IPC-D24IR-S SD card slot and hard reset button IPC-D24IR-S_adjust_angle

Dimensions

  • Product Dimensions: 81 mm × Φ109.9 mm (3.19" × Φ4.33")
  • Casing Material: Metal
  • Net Weight: 0.34 kg (0.75 lb)
  • Gross Weight : 0.49 kg (1.08 lb)

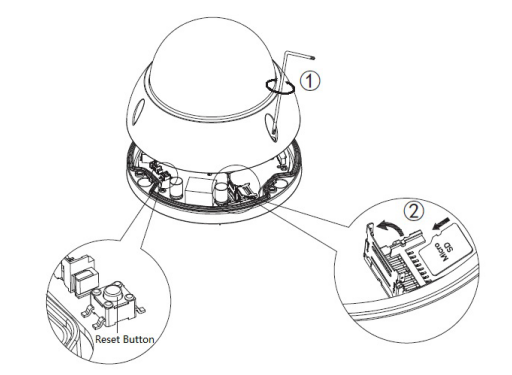

SD Card Slot and Hard Reset Button

  • SD card slot is available on select models.
  • Disconnect the power from the device before installing the SD card.
  • Press the reset button for 10 seconds to reset the device. Please do this when camera is powered on .

Adjusting Angle

  • Please refer to the real model for more details.
  • Please be aware of image rotation direction when it turns to 64° vertically, which is to avoid IR light being blocked by enclosure.



Product Specs
Camera
Image Sensor1/2.9" CMOS
Max. Resolution2688 (H) × 1520 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.006 lux@F1.6 (Color, 30 IRE)
0.0006 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distanceup to 30 m (98.43 ft) (IR LED)
Illuminator On/Off ControlAuto;Manual
Illuminator Number3 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 102°; V: 54°; D: 121°
3.6 mm: H: 84°; V: 42°; D: 101°
Iris ControlFixed
Close Focus Distance2.8 mm: 1.1 m (2.30 ft)
3.6 mm: 1.7 m (4.27 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm63.6 m (208.66 ft)25.4 m(83.33 ft)12.7 m(41.67 ft)6.4 m(21.00 ft)
3.6 mm85.4 m (280.18 ft)34.2 m(112.20 ft)17.1 m(56.10 ft)8.5 m(27.89 ft)
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateMain stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability2 streams
Resolution4M (2688 × 1520/2560 × 1440);
3M (2304 × 1296);
1080p (1920 × 1080);
1.3M (1280 × 960);
720p (1280 × 720);
D1 (704 × 576/704 × 480);
VGA (640 × 480);
CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlManual;Auto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G.726; PCM
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion;
audio detection; voltage detection; SMD; security exception;
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile G); CGI; P2P
User/Host6 (Total bandwidth: 36 M)
StorageFTP;SFTP; Micro SD card (support max. 256 GB)
BrowserIE; Chrome; Firefox
Management SoftwareDSS; DMSS
Mobile ClientiOS; Android
Cyber SecurityVideo encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;
Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply12 VDC/PoE
Power ConsumptionBasic: 2.3 W (12 VDC); 2.9 W (PoE)
Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
ProtectionIP67; IK10
Structure
Casing MaterialMetal
Product Dimensions81.0 mm × Φ109.9 mm (3.19"× Φ4.33")
Net Weight0.34 kg (0.75 lb)
Gross Weight0.49 kg (1.08 lb)
