EmpireTech IPC-Color4K-X 8MP 1/1.2" CMOS Full-color Fixed-focal Warm LED Bullet Network Camera

$232.49
$249.99
$232.49
8-MP 1/1.2" CMOS image sensor | Built-in warm illuminator | The max. illumination distance is 60 m | Built-in Mic and speaker | supports two-way talk | ePoE, IP67 protection | SMD 3.0
Lens: 2.8mm
Number of Camera: 1

Please note that:

Due to different credit card companies' terms, they may charge charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-Color4K-X 8MP 1/1.2” CMOS Full-color Fixed-focal Warm LED Bullet Network Camera - EmpireTech

EmpireTech IPC-Color4K-X 8MP 1/1.2" CMOS Full-color Fixed-focal Warm LED Bullet Network Camera

$249.99 $232.49

EmpireTech IPC-Color4K-X 8MP 1/1.2" CMOS Full-color Fixed-focal Warm LED Bullet Network Camera

$249.99 $232.49
Lens: 2.8mm
Number of Camera: 1

warn light LEDIPC-Color4K-X 1/1.8” CMOS 8MPePoE , IP67 protection.Built-in Mic. SMD3.0

8MP Full-color Fixed-focal Warm LED Bullet Network Camera

  • 8-MP 1/1.2" CMOS image sensor, low illuminance, high image definition.
  • Outputs max. 8 MP (3840 × 2160) @30 fps.
  • Built-in warm illuminator, and the max. illumination distance is 60 m.
  • ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker; supports two-way talk.
  • 12 VDC/PoE power supply.
  • ePoE, IP67 protection.
  • SMD 3.0.

Installation Type

Ceiling Mount: PFA130-E (Recommend)

Wall Mount: PFA130-E

Pole Mount (Vertical): PFA130-E + PFA152-E

Optional Accessories(Mount needs to be purchased separately):



IPC-COLOR4K-X_dimensions IPC-COLOR4K-X_hard_reset_and_SD_card_slot IPC-COLOR4K-X_adjust_the_lens_angle

Product Dimensions: 288.4 mm × 94.4 mm × 90.4mm (11.35" × 3.72" × 3.60") (L × W × H)

Net Weight: 1150 g (2.53 lb)

Gross Weight: 1330 g (2.93 lb)

  • Long press the reset button (more than 10s) to reset the device.
  • Please do this when camera is powered on.
Adjusting the Lens Angle









Product Specs
Camera
Image Sensor1/1.2” CMOS
Max. Resolution3840 (H) × 2160 (V)
ROM128 MB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0005Lux@F1.0
S/N Ratio>56 dB
Illumination Distance60 m (196.85 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number4 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: -20°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM22
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF1.0
Field of View2.8 mm: H: 112°; V: 61° ; D: 131°
3.6 mm: H: 91°; V: 50° ; D: 106°
6 mm: H: 55° ; V: 31°; D: 65°
Iris TypeFixed
Close Focus Distance2.8 mm: 3.1 m (10.2 ft)
3.6 mm: 5.4 m (17.7 ft)
6 mm: 12.9 m (42.3 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm82.8 m (271.65 ft)33.1 m (108.60 ft)16.6 m (54.46 ft)8.3 m (27.23 ft)
3.6 mm120.4 m (395.01 ft)48.2 m (158.14 ft)24.1 m (79.10 ft)12.0 m (39.37 ft)
6 mm165.5m (542.98 ft )66.2 m (217.19 ft)33.1 m (108.60 ft)16.6 m (54.46 ft)
Smart event
IVSAbandoned object; missing object
Heat MapYes
Professional, intelligent
IVS (Perimeter Protection)Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection;
people gathering; parking detection
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction
including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy,
confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face
angle filter; optimization time setting.
People CountingSupport the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports
Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+/Smart H.264+
Video Frame RateMain stream: 3840 × 2160 @(1 fps–25/30 fps)
Sub stream: D1 (1 fps–25/30 fps)
Third stream: 1080p (1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability3 streams
Resolution3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR140 dB
DefogYes
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image Rotation0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
MirrorYes
Privacy Masking8 areas
Audio
Built-in MICYes
Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection;
scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering;
input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception
detection; queue management
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; SAMBA; PPPoE; 802.1x; SNMP
Cyber SecurityVideo encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification;
HTTPS; trusted boot; trusted execution; trusted upgrade
InteroperabilityONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
BrowserIE: IE8 and later
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientIOS; Android
Certification
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5 VDC
Alarm Output1 channel out: 300mA 12 VDC
Power
Power Supply12 VDC (±30%)/PoE (802.3af)/ePoE
Power ConsumptionBasic: 5.3 W (12 VDC); 6.2 W (PoE)
Max. (H.265 + 3 streams + intelligence + LED): 11.1 W (12 VDC); 12.1 W (PoE)
Environment
Operating Conditions–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions–40 °C to +60 °C (–40 °F to +140 °F)
Protection GradeIP67
Structure
CasingMetal
Dimensions288.4 mm × 94.4 mm × 84.7 mm(11.4" × 3.7" × 3.3") (L × W × H)
Net Weight1.15 kg (2.5 lb)
Gross Weight1.38 kg (3.0 lb)


Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
T
Tony
Mind Blowing Performance

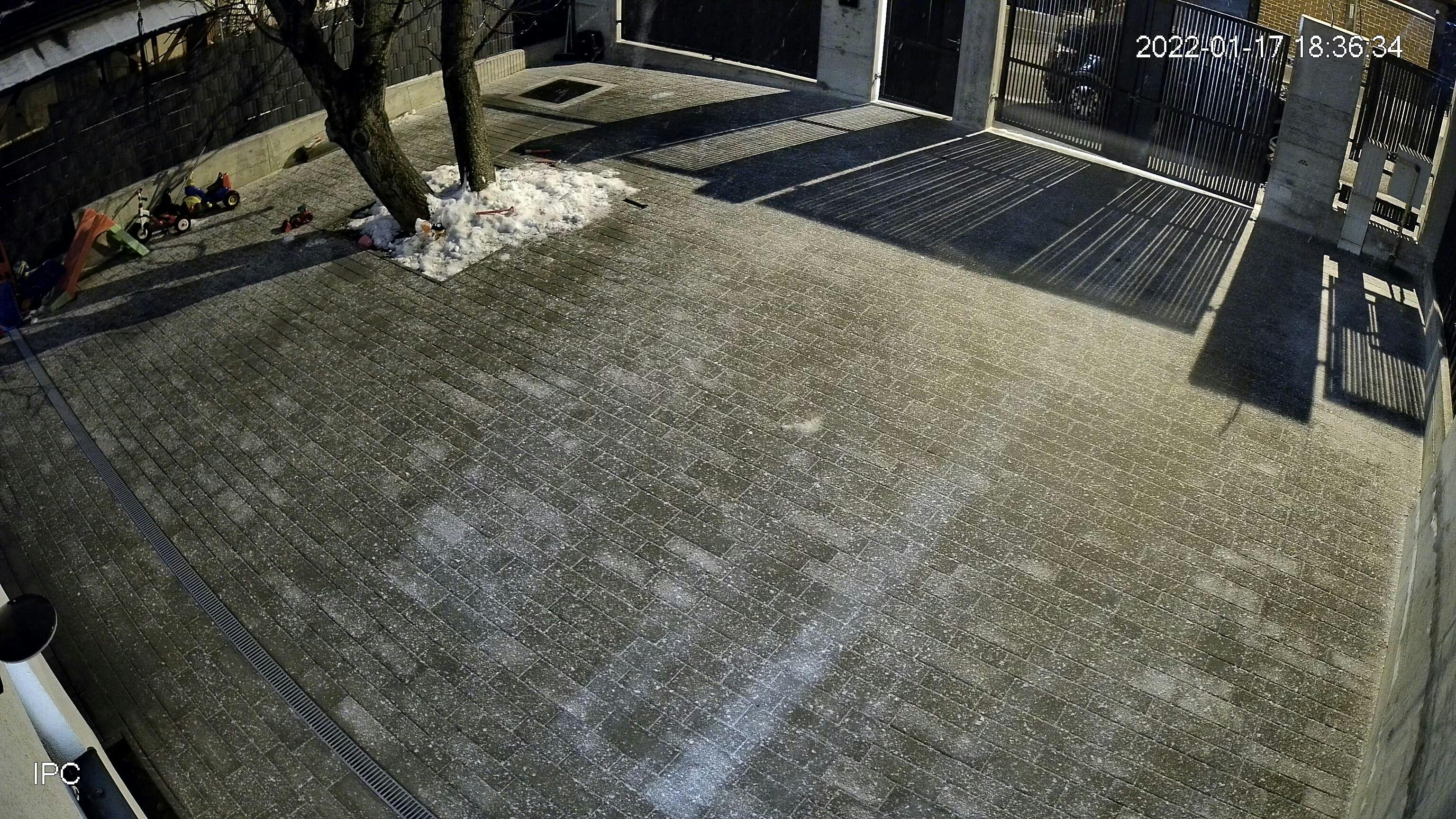

A single street light on our street is enough light for this camera to show an amazingly clear image that looks like a overcast afternoon in the dead of night, it's really something.

H
Horatiu Graur
Excellent image quality

I bought this based on the reviews from ipcamtalk and I couldn’t be more pleased. The camera exceeded my expectations. The image is very sharp and detailed even at night. So yes, I bought two of them 😁

P
Paul Starr
NightVision

I was thoroughly impressed with the night vision on these. With my old cameras, looking out my upstairs windows to driveway across the street I was barely tell if a car was in the driveway. Now, I can see the car, the color of the car and the green grass and that is with no luminescence from the camera. The area where the street light is is also amazing, One would think the sun was shining in that vicinity. I was concerned about no infrared ability but just a little light from other sources and this camera comes to life.

T
TT
Warm light means no IR otherwise great Camera

I’m very pleased by the image quality of this camera. It is rather large, so double check dimensions prior to purchasing. Additionally, Camera does not have infrared lights, but visible light, which will be a negative for a lot of people. I was not aware of that before I purchased it.

A
AJ Witt
Great 4K camera

Finally a 4K camera on the larger 1/1.2" sensor.

This camera needs very little light to produce a great image. And if you don't have enough light, there are 4 built-in white LEDs available for use.

You can easily run a 1/250 shutter or faster at night to get great freeze frame captures.

The camera also has two-way audio and the ability to play an alarm or other pre-recorded audio file.
