EmpireTech IPC-T24IR-AS 1/2.9" CMOS 4MP IR Fixed-focal Eyeball Network Camera Built-in Mic

$75.99
$79.99
$75.99
4-MP 1/2.9" CMOS image sensor | Built-in IR LED | The max. illumination distance is 30 m | Intelligent monitoring | Built in MIC | IP67 protection | SMD Plus
Lens: 2.8mm
Number Of Camera: 1

Please note that:

Due to different credit card companies' terms, they may charge charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-T24IR-AS 1/2.9" CMOS 4MP IR Fixed-focal Eyeball Network Camera Built-in Mic - EmpireTech

EmpireTech IPC-T24IR-AS 1/2.9" CMOS 4MP IR Fixed-focal Eyeball Network Camera Built-in Mic

$79.99 $75.99

EmpireTech IPC-T24IR-AS 1/2.9" CMOS 4MP IR Fixed-focal Eyeball Network Camera Built-in Mic

$79.99 $75.99
Lens: 2.8mm
Number Of Camera: 1

4MP WDR IR Eyeball Network CameraIP67 protectionbuilt-in MicBuilt-in IR LED, max IR distance: 30 m

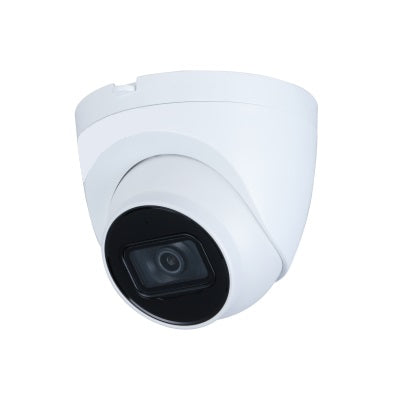

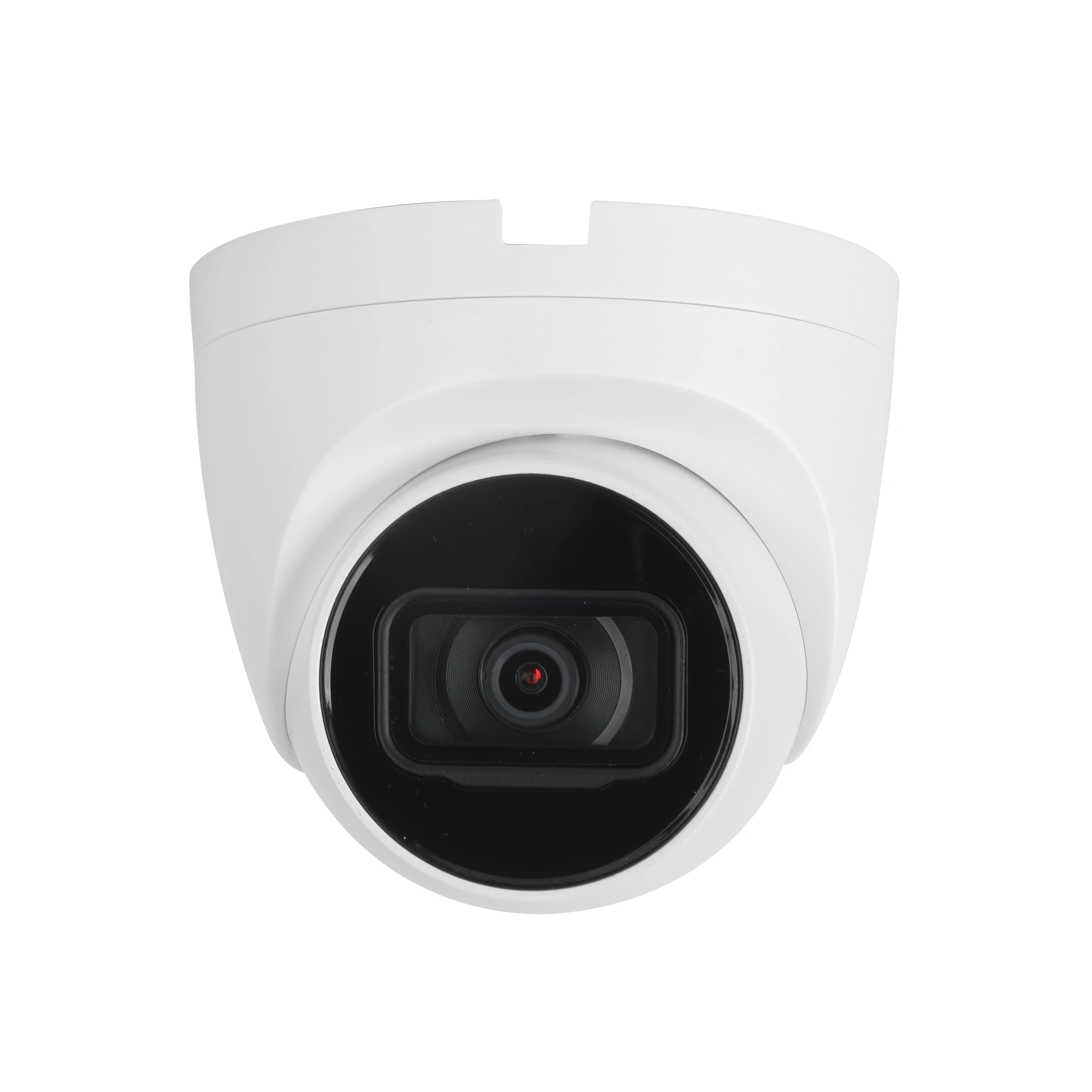

4MP IR Fixed-focal Eyeball Network Camera

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. illumination distance is 30 m.
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Supports max. 256 G Micro SD card; built in MIC.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • SMD Plus.

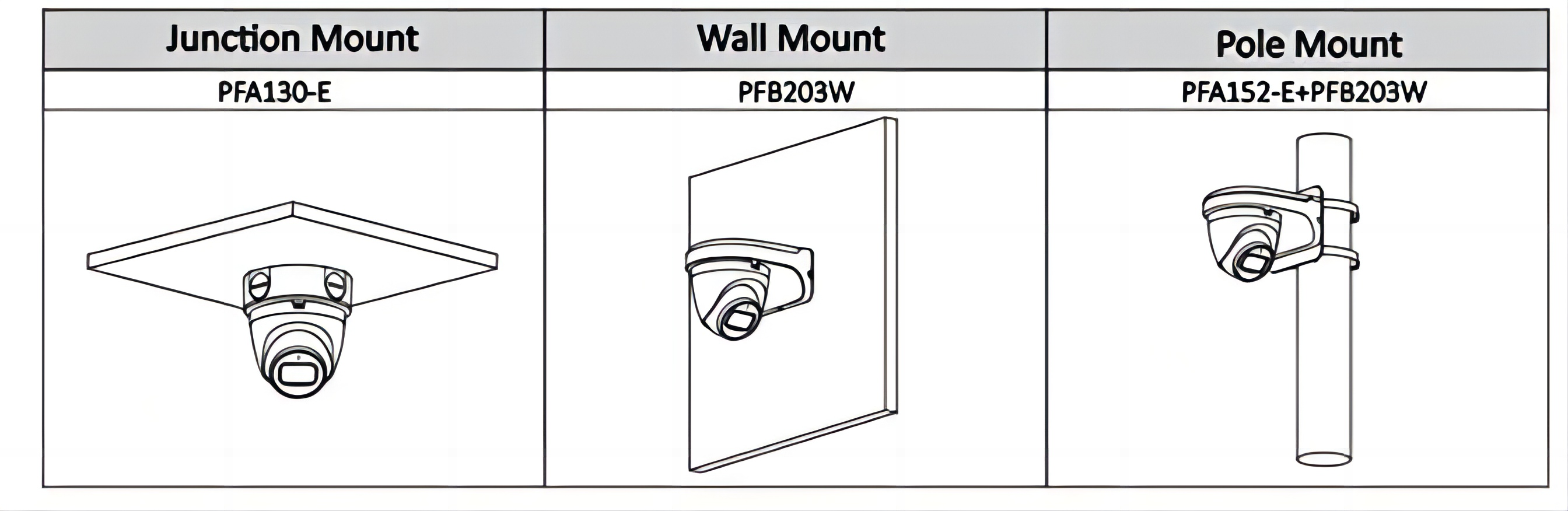

Installation Type



Optional Accessories(Mount needs to be purchased separately):





Product Specs
Camera
Image Sensor1/2.9" CMOS
Max. Resolution2688 (H) × 1520 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.006 lux@F1.6 (Color, 30IRE)
0.0006 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance30 m (98.43 ft) (IR LED)
Illuminator On/Off ControlAuto; manual
Illuminator Number1 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 95°; V: 52°; D: 114°
3.6 mm: H: 78°; V: 41°; D: 94°
Iris ControlFixed
Close Focus Distance2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm63.6 m(208.66 ft)25.4 m(83.33 ft)12.7 m(41.67 ft)6.4 m(20.99 ft)
3.6 mm85.4 m(280.18 ft)34.2 m(112.20 ft)17.1 m(56.10 ft)8.5 m(27.89 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to
distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateMain stream: 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability2 streams
Resolution4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto; manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726
Alarm
Alarm EventNo SD card; SD card full; SD card error; networkdisconnecton; IP conflict; illegal access; motondetecton; video tampering; tripwire;
intrusion; SMD; voltage detecton; security excepton
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI
User/Host6 (Total bandwidth: 36 M)
StorageFTP; SFTP; Micro SD card (support max. 256 GB)
BrowserIE; Chrome; Firefox
Management SoftwareDSS; DMSS
Mobile ClientiOS; Android
Cyber SecurityConfiguration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;
HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;UL/C
UL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply12 VDC/PoE (802.3af)
Power ConsumptionBasic: 2.5 W (12 VDC); 3.3 W (PoE);
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
ProtectionIP67
Structure
Casing MaterialInner core: Metal
Cover: Plastic
Product Dimensions100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Net Weight0.37 kg (0.82 lb)
Gross Weight0.56 kg (1.23 lb)
