EmpireTech SD4A425DB-HNY 1/2.8" 4MP 25x Starlight IR Network PTZ Camera Support Auto-tracking Perimeter Protection Face Detection - EmpireTech
EmpireTech SD4A425DB-HNY 1/2.8" 4MP 25x Starlight IR Network PTZ Camera Support Auto-tracking Perimeter Protection Face Detection - EmpireTech

EmpireTech PTZ425DB-AT 1/2.8" 4MP 25x Starlight IR 5mm–125mm Vari-Focal Network PTZ Camera Support Auto-tracking

$379.99
$399.99
$379.99
1/2.8" 4Megapixel STARVIS™ CMOS. 25x optical zoom. Starlight technology. Max. 25/30fps@4MP. IR distance up to 100m. Auto-tracking. Perimeter protection. Face detection. SMD 3.0. IP66.
Payment :
your-image
Share :
your-image your-image your-image
EmpireTech SD4A425DB-HNY 1/2.8" 4MP 25x Starlight IR Network PTZ Camera Support Auto-tracking Perimeter Protection Face Detection - EmpireTech

EmpireTech PTZ425DB-AT 1/2.8" 4MP 25x Starlight IR 5mm–125mm Vari-Focal Network PTZ Camera Support Auto-tracking

$399.99 $379.99

EmpireTech PTZ425DB-AT 1/2.8" 4MP 25x Starlight IR 5mm–125mm Vari-Focal Network PTZ Camera Support Auto-tracking

$399.99 $379.99

Model Name: SD4A425DB-HNY   Item Name: PTZ425DB-AT

Camera
Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 × 1440
ROM 128 MB
RAM 512 MB
Electronic Shutter Speed 1/1s–1/30000s
Scanning System Progressive
Min. Illumination Color: 0.005lux@F1.6B/W: 0.0005lux@F1.60Lux (IR on)
Illumination Distance 100 m (328.08 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 6 (IR)
Lens
Focal Length 5 mm–125 mm
Max. Aperture F1.6–F3.6
Field of View H: 51.9°–3.0°V: 39.7°–2.2°D: 63.1°–3.7°
Optical Zoom 25×
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.5 m–5 m (1.64 ft–16.40ft)
Iris Control Auto; manual; fixed
DORI Distance Detect Observe Recognize Identify
2500 m (8202.10 ft) 987.5 m (3239.83 ft) 500 m(1640.42 ft) 250 m(820.21 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endlessTilt: –5° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°/s–240°/sTilt: 0.1°/s–160°/s
Preset Speed Pan: 240°/s; Tilt: 160°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Pattern; Preset; Scan; Tour
PTZ Protocol DH-SD
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
Face Detection Supports face detection, face track box, capturing pictures, face enhancement; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing and quality first
Auto Tracking Yes
SMD Yes
Video
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF(352 × 288)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)Sub stream 2: 720p/CIF @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 96Kbps - 14848KbpsH.265: 38Kbps - 8960Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio ≥ 55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM; AAC
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP; ;SAMBA
Interoperability CGI; SDK; ONVIF (Profile S&G&T); P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser IE 9 and later versionsChrome 41 and later versionsFirefox 50 and later versionsiOS 10 and later versions
Management Software DMSS; DSS PRO
Mobile Client iOS; Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT, bare wire)
Alarm Linkage Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O 2/1
Audio I/O 1/1
Power
Power Supply 12 VDC/2 A ± 10% (included)PoE+ (802.3at)
Power Consumption Basic: 9.5 WMax.: 21.5 W (illuminator on + fan on + PTZ)
Environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity ≤ 95%
Protection IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 170.4 mm × Φ171.1 mm (6.71" × Φ6.74")
Net Weight 2.5 kg (5.51 lb)
Gross Weight 3.2 kg (7.05 lb)

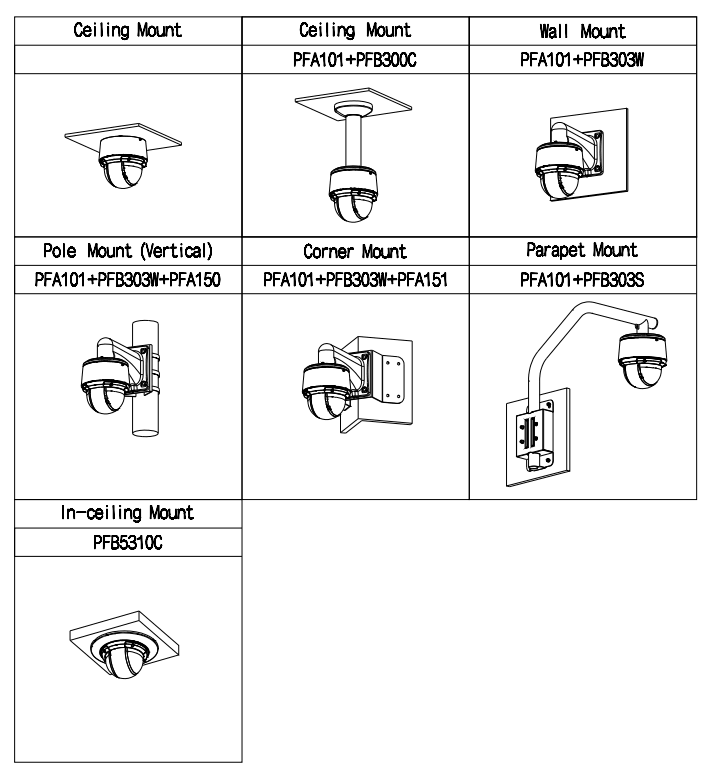

Installation Type

Optional Accessories(Mount needs to be purchased separately):

PFB5310C In-ceiling Mount
PFA151 Corner Mount Bracket



PTZ425DB-AT Packing List PTZ425DB-AT SD Card Slot and Hard Reset Button PTZ425DB-AT Dimensions

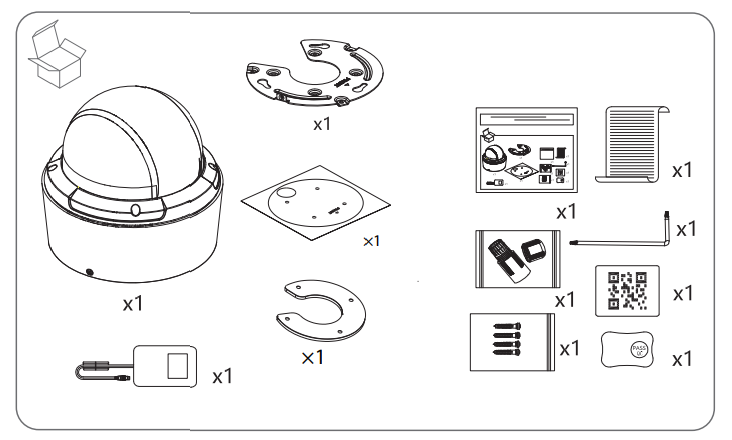

Packing List

  • Network Camera × 1
  • Installation Package × 1

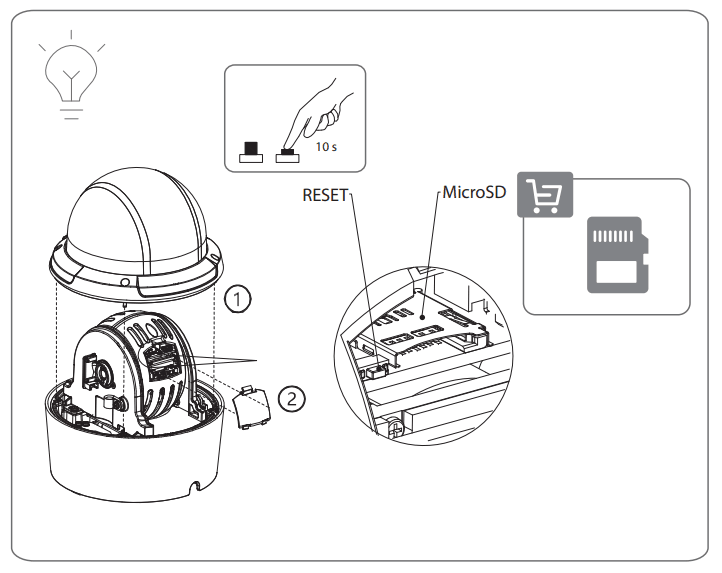

SD Card Slot and Hard Reset Button

Do not keep the lower cover open for a long time in humid environment, in case of water mist risk.

  • SD card slot is available on select models.
  • Disconnect the power from the device before installing the SD card.
  • Press the reset button for 10 seconds to reset the device.Please do this when device ic powered on.

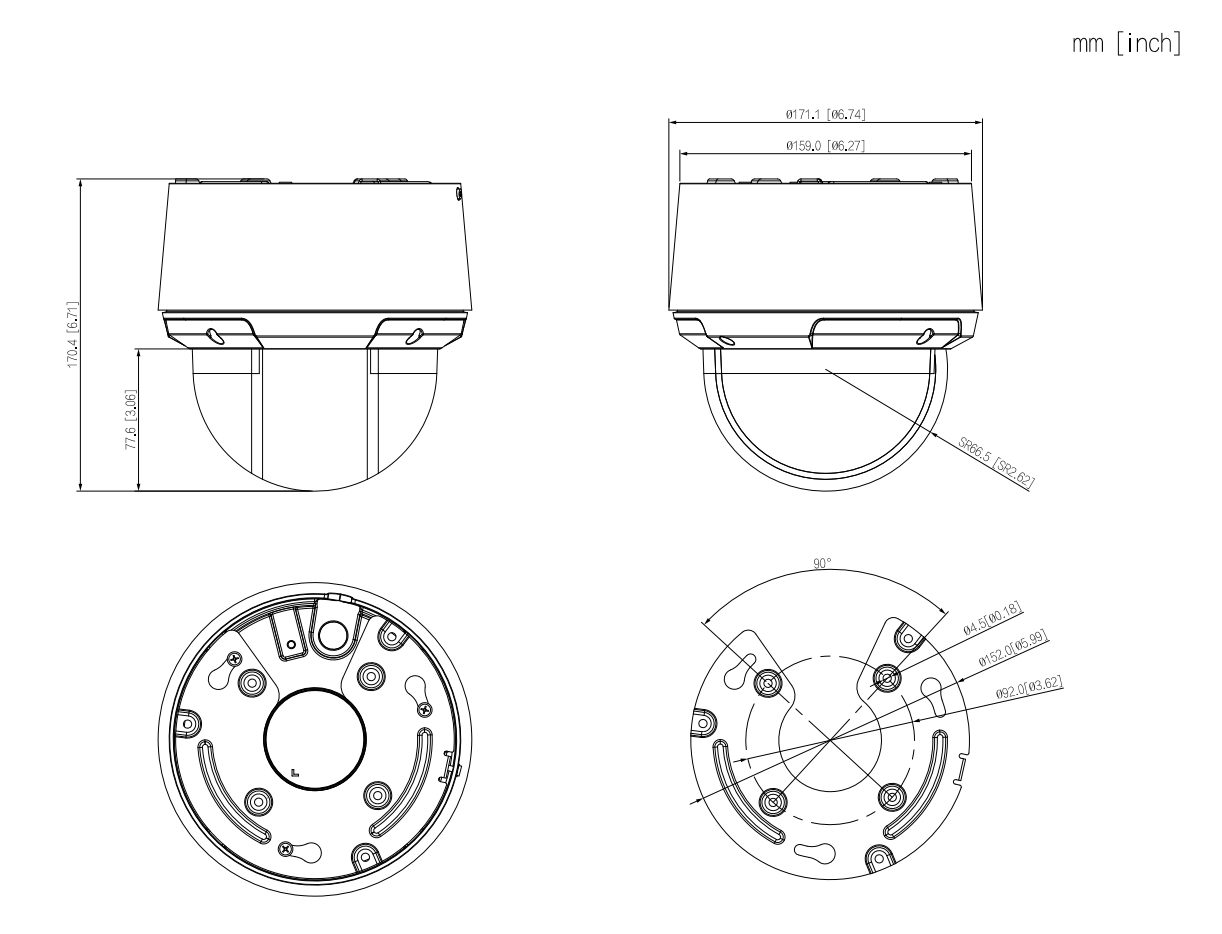

Dimensions (mm[inch])

  • Product Dimensions : 170.4 mm × Φ171.1 mm (6.71" × Φ6.74")
  • Net Weight : 2.5 kg (5.51 lb)
  • Gross Weight : 3.2 kg (7.05 lb)
