EmpireTech IPC-Color4K-T180 4K Full-Color 1/1.8" CMOS Dual-Lens Splicing Network Camera

$224.99
$249.99
$224.99
Dual 1/1.8" CMOS Image Sensor | Outputs 180° wide angle splicing image | Built-in warm light | The max. illumination distance is 40 m | Built-in Mic and speaker supports two-way talk | IP67 protection | EPTZ function | SMD3.0
Color: White
Number of Camera: 1

Please note that:

Due to different credit card companies' terms, they may charge some transaction fees.

Payment :
your-image
Share :
your-image your-image your-image
EmpireTech IPC-Color4K-T180 4K Full-Color 1/1.8" CMOS Dual-Lens Splicing Network Camera - View-Front

EmpireTech IPC-Color4K-T180 4K Full-Color 1/1.8" CMOS Dual-Lens Splicing Network Camera

$249.99 $224.99

EmpireTech IPC-Color4K-T180 4K Full-Color 1/1.8" CMOS Dual-Lens Splicing Network Camera

$249.99 $224.99
Color: White
Number of Camera: 1

dual lens turret camera8MP 4K full-colortwo-way talk LED warm lights

2×4MP Full-color Duo Splicing Network Camera

  • Outputs 180° wide angle splicing image.
  • Outputs max. 8 MP (4096 × 1800)@25 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light, and the max. illumination distance is 40 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD3.0.

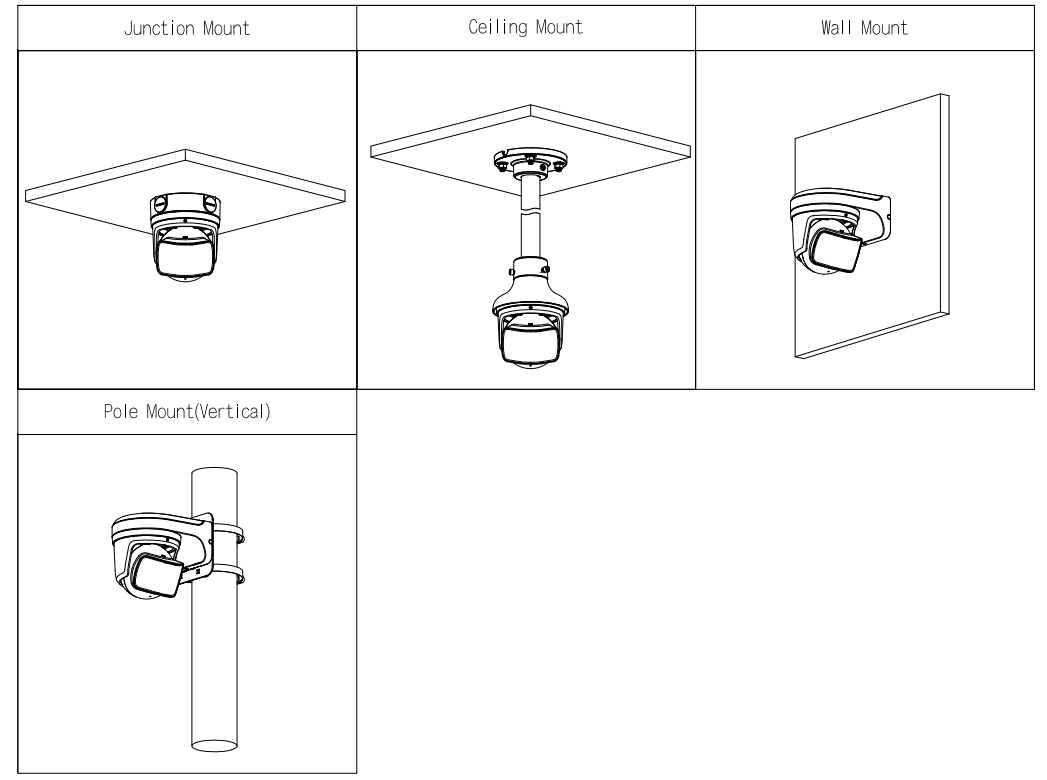

Installation Type

IPC-Color4K-T180 Installation Type

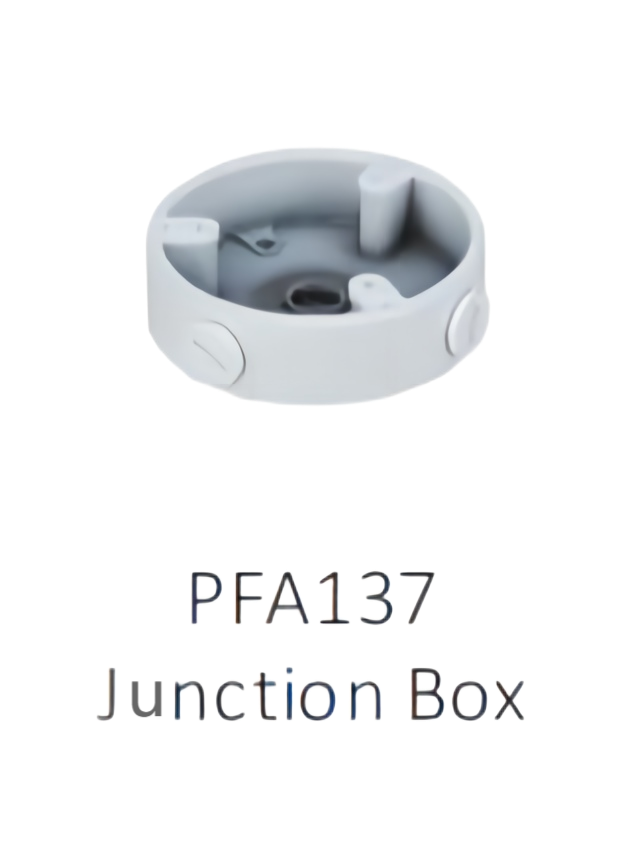

Junction Mount methods: ①PFA122 ②PFA137 ③PFA130-E

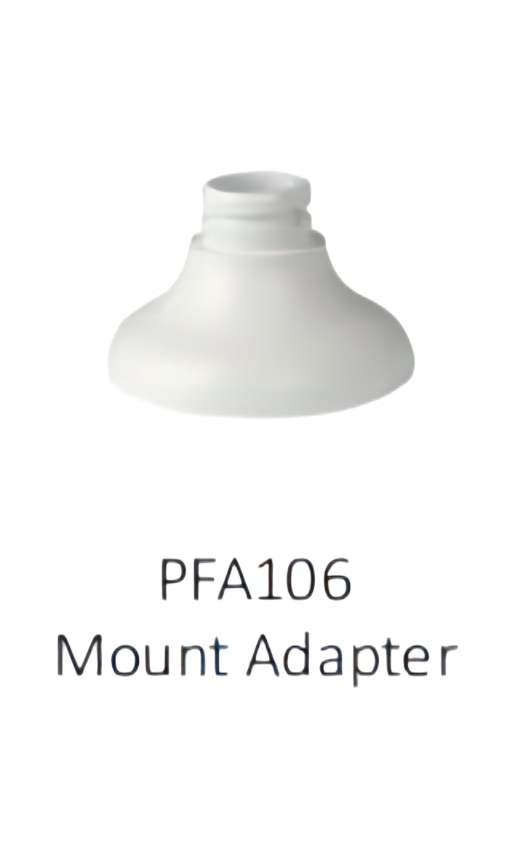

Ceiling Mount methods: PFB200C + PFA106

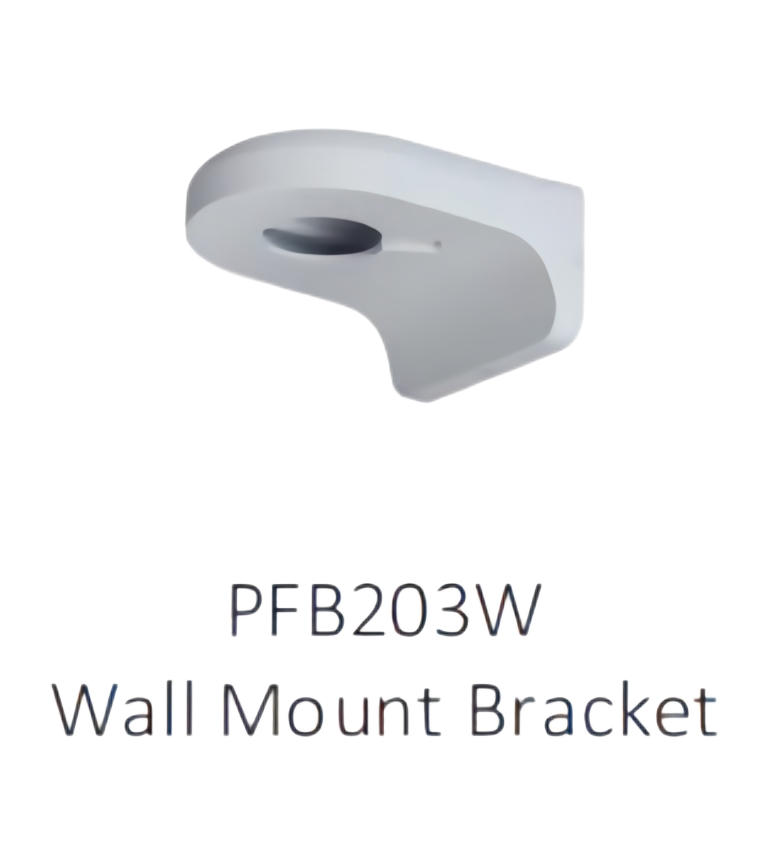

Wall Mount methods: PFB203W

Pole Mount methods: PFA152-E+ PFB203W

Optional Accessories(Mount needs to be purchased separately):

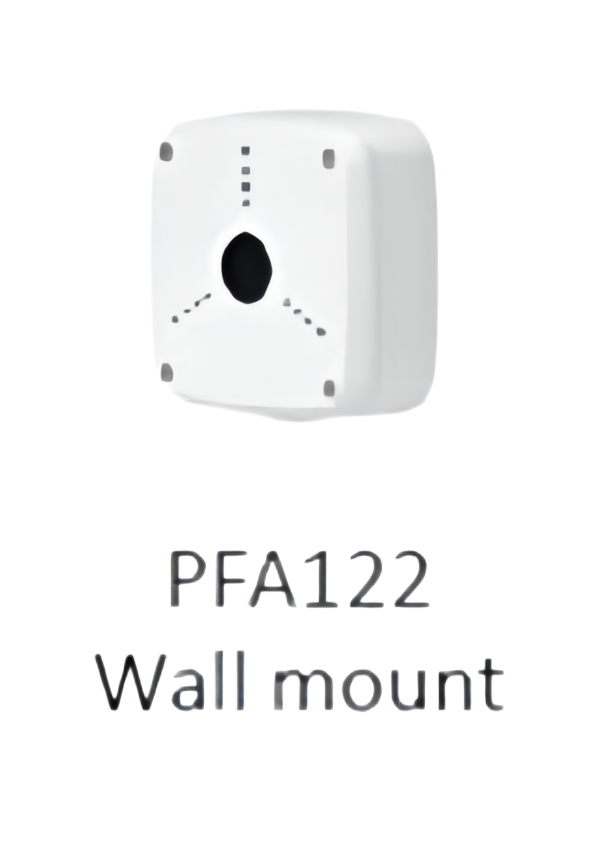

PFA122 Wall Mount

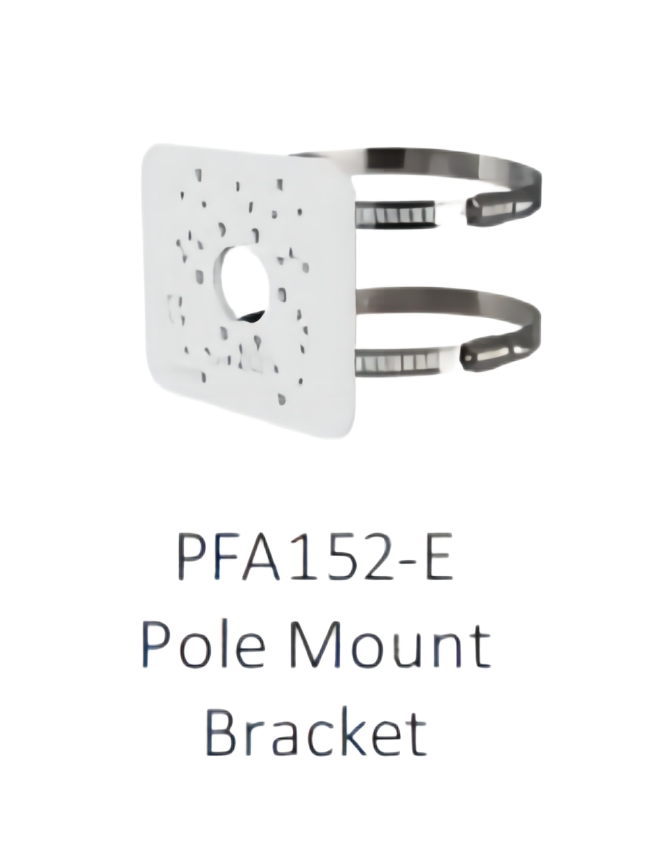

PFA152-E Pole Mount Bracket



IPC-Color4K-T180_Dimensions IPC-Color4K-T180_Hard_reset_and_SD_card_slot

Product Dimensions: Φ122 mm × 131.9 mm (Φ4.80" × 5.19" )

Net Weight: 990 g (2.18 lb)

Gross Weight: 1150 g (2.54 lb)

  • Long press the reset button (more than 10s) to reset the device.
  • Please do this when camera is powered on.









Product Specs
Camera
Image SensorDual 1/1.8" CMOS
Max. Resolution4096 (H) × 1800 (V)
ROM128 MB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0005 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance40 m (131.23 ft)
Illuminator On/Off ControlAuto
Illuminator Number4 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 4°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM16
Focal Length3.6 mm
Field of ViewH: 180°±10°V: 48°
Max. ApertureF1.0
Iris ControlFixed
Close Focus Distance3.6 m (11.81 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
3.6 mm70.3 m (230.64 ft)28.1 m(92.19 ft)14.1 m(46.26 ft)7.0 m(22.97 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video
to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human);
loitering detection, people gathering, and parking detection
Heat MapYes
Smart Object DetectionSmart abandoned object; smart missing object
People CountingSupport the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateWDR Off:
Main stream: 4096 × 1800 @ (1–25 fps)
sub stream: 1024 × 452 @ (1–25 fps)
third stream: 1920 × 832 @ (1–25 fps)
WDR On:
Main stream: 4096 × 1800 @ (1–20 fps)
sub stream: 1024 × 452 @ (1–20 fps)
third stream: 1920 × 832 @ (1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability3 streams
Resolution8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 9 kbps–8192 kbps
H.265: 9 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR140 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Privacy Masking4 areas
DefogYes
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing;
audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Cyber SecurityVideo encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering;
Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network ProtocolIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP;
IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 11 and later
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientiOS; Android
Certification
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channels in: 5 mA 3 V–5 VDC
Alarm Output1 channel out: 300 mA 12 VDC
Power
Power Supply12 VDC (±30%)/PoE+ (802.3at)/ePoE
Power ConsumptionBasic: 4.8 W (12 VDC); 5.5 W (PoE)
Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
ProtectionIP67
Structure
CasingMetal
Product DimensionsΦ122 mm × 131.9 mm (Φ4.80" × 5.19" )
Net Weight990 g (2.18 lb)
Gross Weight1150 g (2.54 lb)


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Horatiu Graur
Awesome camera

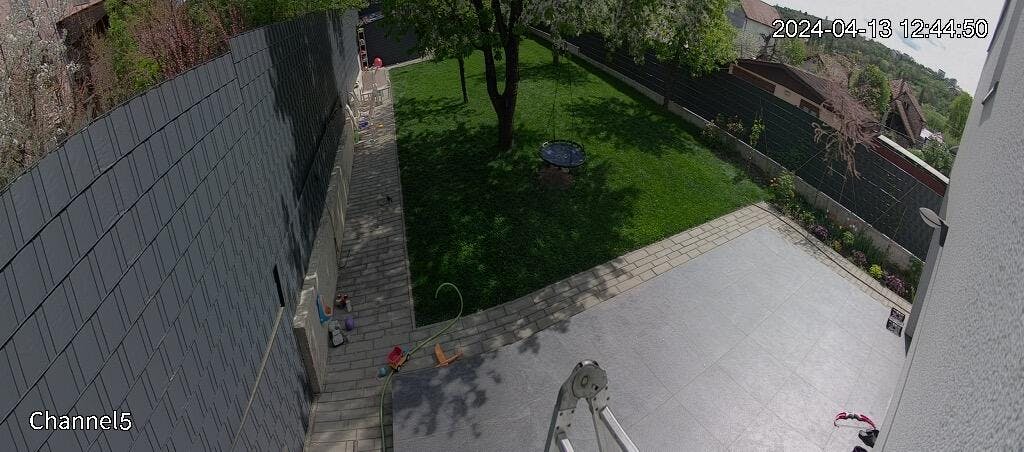

I bought one first because I needed to cover a wide angle in the front of the house instead of putting 2 cameras. The quality is excellent both the build and the image day and night! As a consequence I bought another one to cover the back yard 😁
